NGRO50 Wired and WiFi Horticultural Grow Bar by NLC
Wired and WiFi Horticultural Grow Bar

NGRO50

360° grow bar with wired daisy chain or WiFi control through the GLC 3 smart controller and 0-10V dimming

IP 66
120-277V AC
50/60Hz
2.7 - 3.6 µmol/J
50,000h Rated Life
PF >0.9
THD <25
0-10V Dimming
Wired and WIFI
360° Beam Angle
GLC 3 Smart Controller
50W / 150W
Power
140 - 540 µmol/s
Light Output PPF
2.7 - 3.6 µmol/J
Efficiency
360°
Beam Angle
104 °F / 40 °C
Max. Ambient Temperature
IP 66
Ingress Protection
Request Datasheet Request a Quote

About this Product

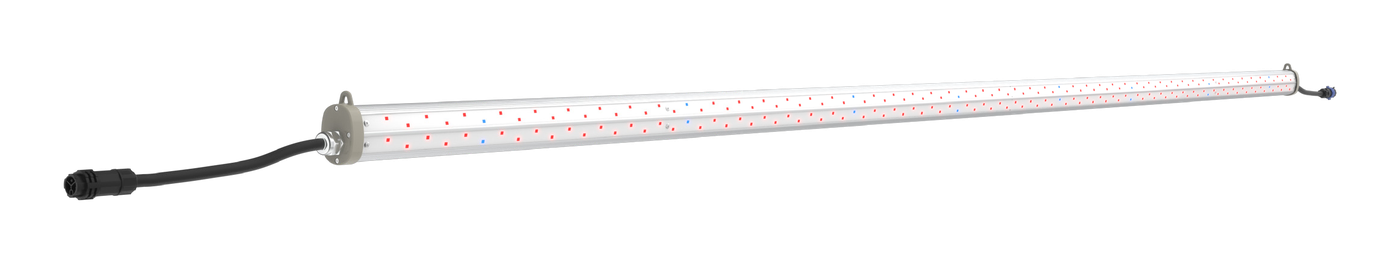

NGRO50 is a horticultural LED bar available at 50W and 150W with an efficiency of 2.7 to 3.6 µmol/J and a PPF of 140 to 540 µmol/s, distributed over a 360° beam angle. It runs on 120-277V AC at 50/60Hz with a power factor above 0.9 and THD below 25, supports 0-10V dimming, and can be wired as a daisy chain of up to 20 bars or controlled wirelessly through the GLC 3 smart controller. The IP 66 bar is rated for 50,000h and a maximum ambient of 104 °F / 40 °C, with printed lengths from 1112mm to 2412mm depending on model.

Electrical Parameters

Input Voltage120-277V AC
Frequency50/60Hz
Power Factor>0.9
THD< 25
Dimming0-10V
ConnectionWired daisy chain, up to 20 lights in series
Connection Capacity12 light bars for 277VAC, 20 light bars for 480VAC
Wireless ControlGLC 3 smart controller (WIFI)

Environmental Parameters

Ingress ProtectionIP 66
Max. Ambient Temperature104 °F / 40 °C

Construction

Dimensions (NLC-NGRO50)L1112 x W42 x H64mm (L43.78" x W1.65" x H2.52")
Dimensions (NLC-NGRO150)L1112 / L1212 / L2412 x W41.58 x H63.78mm
Net Weight (NLC-NGRO50)1.22 kg / 2.69 lbs
Net Weight (NLC-NGRO150)1.4 kg, 2.35 kg, 2.8 kg and 3.05 kg across the printed length variants
PPFD Measurement Height6" / 152 mm

LED & Light Source

Efficiency2.7 - 3.6 µmol/J
Light Output PPF140 - 540 µmol/s
Beam Angle360°
Rated Life50,000h
ModelPowerEfficiencyLight Output PPFBeam AngleMax. Ambient TemperatureDimensionsNet Weight
NLC-NGRO5050W2.7-3.6µmol/J140-360µmol/s360°104 °F / 40 °CL1112 x W42 x H64mm (L43.78" x W1.65" x H2.52")1.22kg / 2.69 lbs
NLC-NGRO15050W/150W2.7-3.6µmol/J140-540µmol/s360°104 °F / 40 °CL1112 x W41.58 x H63.78mm (L43.78" x W1.64" x H2.51"); L2412 x W41.58 x H63.78mm (L94.96" x W1.64" x H2.51")1.4kg / 3.09 lbs; 2.8kg / 6.17 lbs
NLC-NGRO150150W2.7-3.6µmol/J405-540µmol/s360°104 °F / 40 °CL1212 x W41.58 x H63.78mm (L47.72" x W1.64" x H2.51"); L2412 x W41.58 x H63.78mm (L94.96" x W1.64" x H2.51")2.35kg / 5.1 lbs; 3.05kg / 6.72 lbs

* Values as published in the NLC product catalogue
