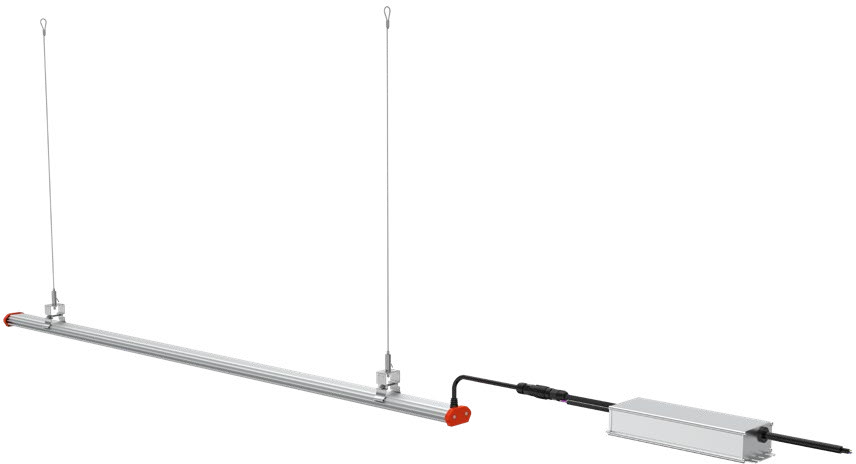

100W light bar at up to 2.9 µmol/J for cultivation racks
NGRO100 is a 100W horticultural LED light bar used in multiple-row assemblies of up to 12 bars, suitable for various types of cultivation rack. It delivers 260-290 µmol/s PPF at 2.6-2.9 µmol/J with a 120° beam angle, carries an IP 65 rating and is rated for 50,000h. Two driver options cover 120-277V AC and 277-480V AC at 50/60Hz, with a power factor above 0.9 and THD below 25, and the maximum ambient temperature is 104 °F / 40 °C. The spectrum is listed as P2FR and PPFD is referenced at a 12 inch / 305 mm height.
| Input Voltage (Driver 120-277VAC) | 120-277V AC | 50/60Hz |
| Input Voltage (Driver 277-480VAC) | 277-480V AC | 50/60Hz |
| Power Factor | PF >0.9 |
| THD | < 25 |
| IP Rating | IP 65 |
| Max. Ambient Temperature | 104 °F / 40 °C |
| Connection | Multiple-row light bars assembly, capable of accommodating up to 12 light bars, suitable for various types of cultivation rack |
| Light Bar Dimensions | L 1193 x W 50.88 x H 25.58 mm / L 46.96" x W 2.00" x H 1.00" |
| Driver Dimensions (120-277VAC) | L 145 x W 66 x H 35 mm / L 5.70" x W 2.59" x H 1.37" |
| Driver Dimensions (277-480VAC) | L 221 x W 71 x H 39.6 mm / L 8.70" x W 2.79" x H 1.55" |
| Light Bar Net Weight | 0.65 kg / 1.43 lbs |
| Driver Net Weight (120-277VAC) | 0.62 kg / 1.36 lbs |
| Driver Net Weight (277-480VAC) | 1.05 kg / 2.31 lbs |
| Efficiency | 2.6-2.9 µmol/J |
| Light Output PPF | 260-290 µmol/s |
| Spectrum | P2FR |
| Beam Angle | 120° |
| Lifetime | 50,000h |
| PPFD Measurement Height | 12" / 305 mm |
| Model | Power | Efficiency | Light Output PPF | Beam Angle | Dimensions | Net Weight | Max. Ambient Temperature |
|---|---|---|---|---|---|---|---|
| NLC-NGRO100 | 100W | 2.6-2.9µmol/J | 260-290µmol/s | 120° | Light bar: L 1193 x W 50.88 x H 25.58 mm / L 46.96" x W 2.00" x H 1.00"; Driver (120-277VAC): L 145 x W 66 x H 35 mm / L 5.70" x W 2.59" x H 1.37" | Light bar: 0.65 kg / 1.43 lbs; Driver (120-277VAC): 0.62 kg / 1.36 lbs | 104 °F / 40 °C |
| NLC-NGRO100 | 100W | 2.6-2.9µmol/J | 260-290µmol/s | 120° | Driver (277-480VAC): L 221 x W 71 x H 39.6 mm / L 8.70" x W 2.79" x H 1.55" | Driver (277-480VAC): 1.05 kg / 2.31 lbs | 104 °F / 40 °C |
* Values as published in the NLC product catalogue
