NCON Smart Grow Light Controller by NLC
Smart Grow Light Controller

NCON

7-inch touch screen controller for up to 200 grow light fixtures

7-inch LCD touch screen
12VDC input
100-240 VAC, 50/60 Hz
0-10V wired dimming
Wireless (WiFi) control
Up to 200 fixtures
Three-in-one sensor port
Over-temperature protection
Online upgrade
12VDC
Input Voltage
100-240 VAC, 50/60 Hz
Supply
1A
AC Current
70pcs wired / 200pcs WiFi
Controllable Lights
Wired or wireless…
Control Method
7-inch LCD touch screen
Display
Request Datasheet Request a Quote

About this Product

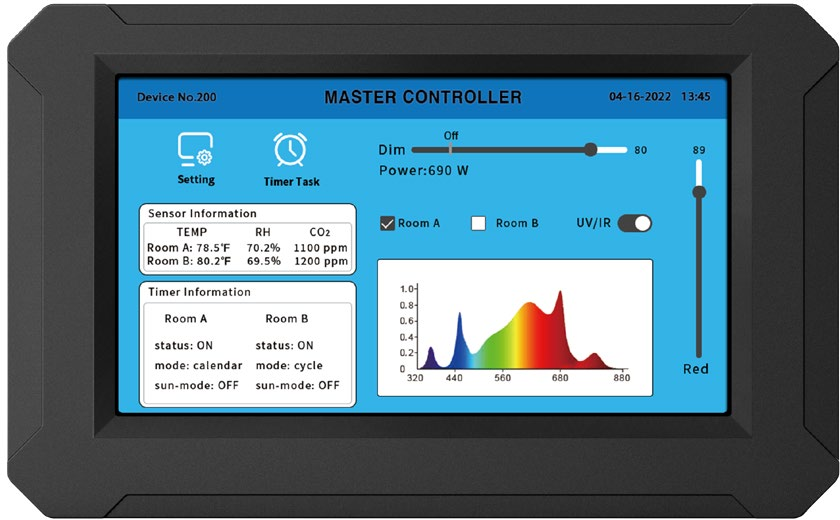

NCON is a smart grow light controller built around a 7-inch LCD touch screen, integrating a built-in dimmer, tunable spectrum, a three-in-one temperature, humidity and carbon dioxide sensor, three timer modes, a sunrise and sunset mode, over-temperature protection and online upgrade. It supports both wireless and 0-10V wired connection, driving up to 70 fixtures over a wired connection and up to 200 over WiFi. Output is on RJ45-8P8C ports with 3 channels per port and RJ9-4P4C ports with 1 channel per port. The unit takes 12VDC from a 100-240 VAC, 50/60 Hz adaptor at 1A, measures L 208 x W 129 x H 33 mm and weighs 0.465 kg. The same spread also prints a second, 5VDC ballast controller table, which is reproduced in the table below.

LED grow light fixtures with 0-10V dimmingSpectrum-tunable grow light series driven from the RJ45 output ports

Electrical Parameters

Input Voltage12VDC
Voltage and Frequency100-240 VAC, 50/60 Hz
AC Current1A
Dimming Output0-10V

Construction

DimensionsL 208 x W 129 x H 33 mm / 8.19" x 5.08" x 1.3"
Weight0.465 kg / 1.02 lbs
Display7-inch LCD touch screen

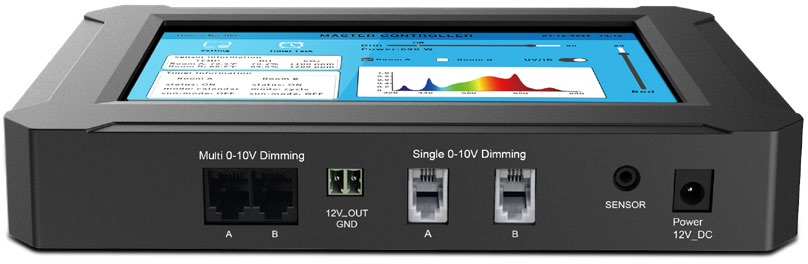

Output Port A/B (RJ45-8P8C)0-10V output, 3 separate output channels per port
Output Port A/B (RJ9-4P4C)0-10V output, 1 output channel per port
Sensor PortThree-in-one: temperature, humidity, carbon dioxide concentration
DC Input12V adaptor
12V Output12V output
VariantParameterValue
Smart controller (catalog page 36)Input voltage12VDC
Smart controller (catalog page 36)Voltage and frequency100-240 VAC, 50/60 HZ
Smart controller (catalog page 36)AC current1A
Smart controller (catalog page 36)Number of Controlable LightsWired connection: 70pcs max. WiFi connection: 200pcs max.
Smart controller (catalog page 36)Control MethodWired or wireless connection
Smart controller (catalog page 36)DimensionsL 208 x W 129 x H 33 mm / 8.19" x 5.08" x 1.3"
Smart controller (catalog page 36)Weight0.465 kg / 1.02 lbs

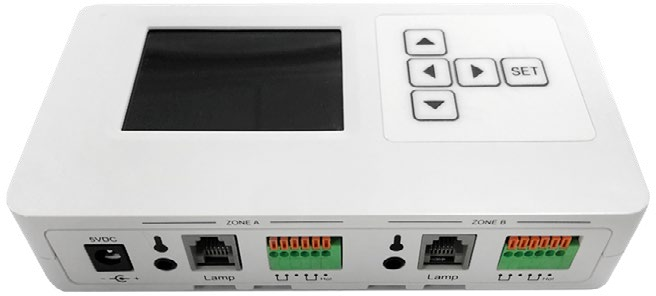

Ballast controller (catalog page 35)Input voltage5VDC
Ballast controller (catalog page 35)Select ballast type400W / 600W / 630W / 1000W / Custom
Ballast controller (catalog page 35)Set output level0-100 %
Ballast controller (catalog page 35)Temperature sensors2 (2 Optional)
Ballast controller (catalog page 35)Number of ballasts per output module100
Ballast controller (catalog page 35)Dimensions152 x 85 x 32 mm / 5.98" x 3.35" x 1.26"
Ballast controller (catalog page 35)Weight210 g / 0.46 lbs
Ballast controller (catalog page 35)WiringRJ11 main port to RJ11 splitters, or daisy chain from ballast to ballast, up to 100 ballasts. Rotary knob on all ballasts switched to EXT.

* Values as published in the NLC product catalogue

Related Products

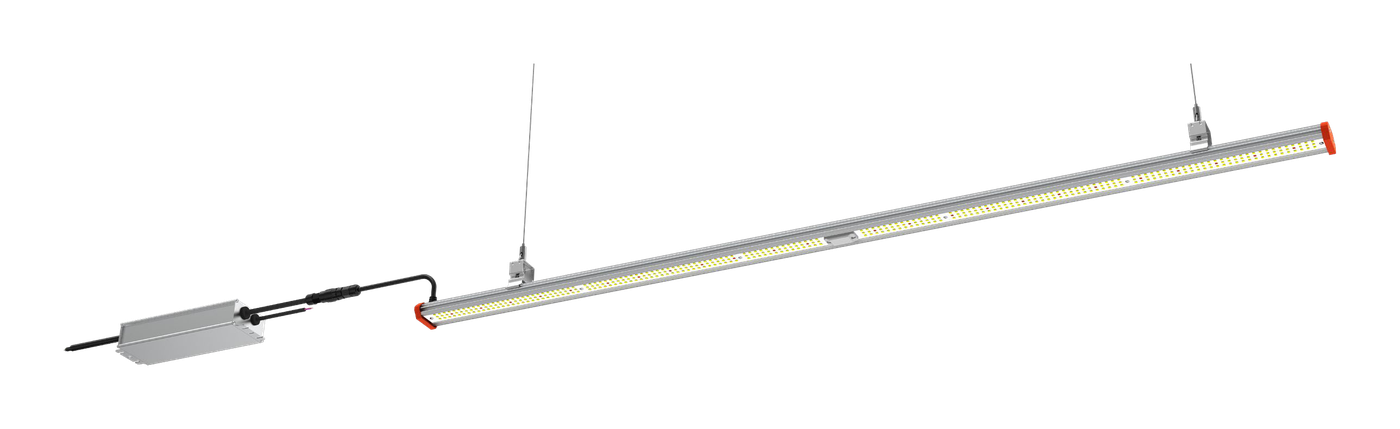

NGRO100

NGRO100

LED Grow Light Bar

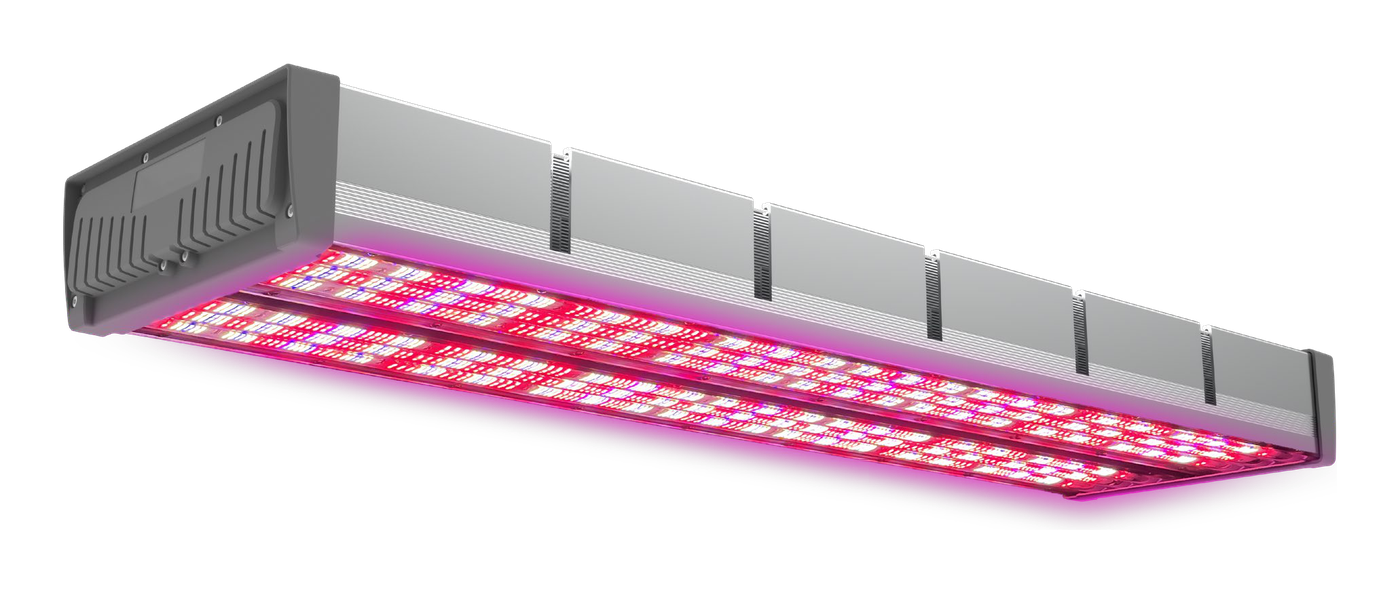

NGRO1200

NGRO1200

LED Grow Light

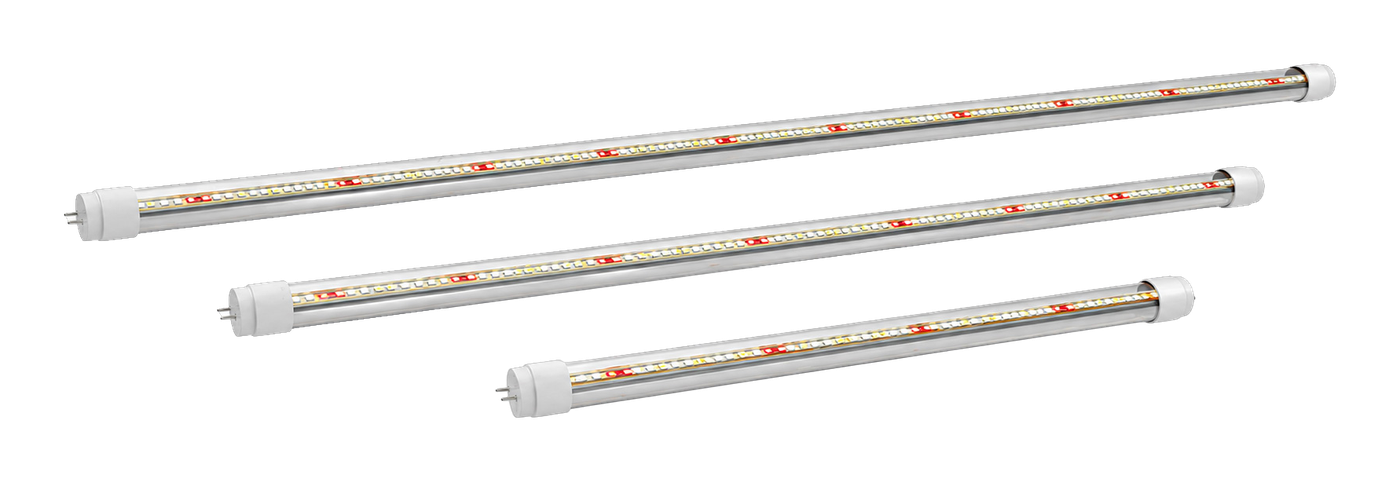

NGRO15

NGRO15

G13 LED Grow Tube

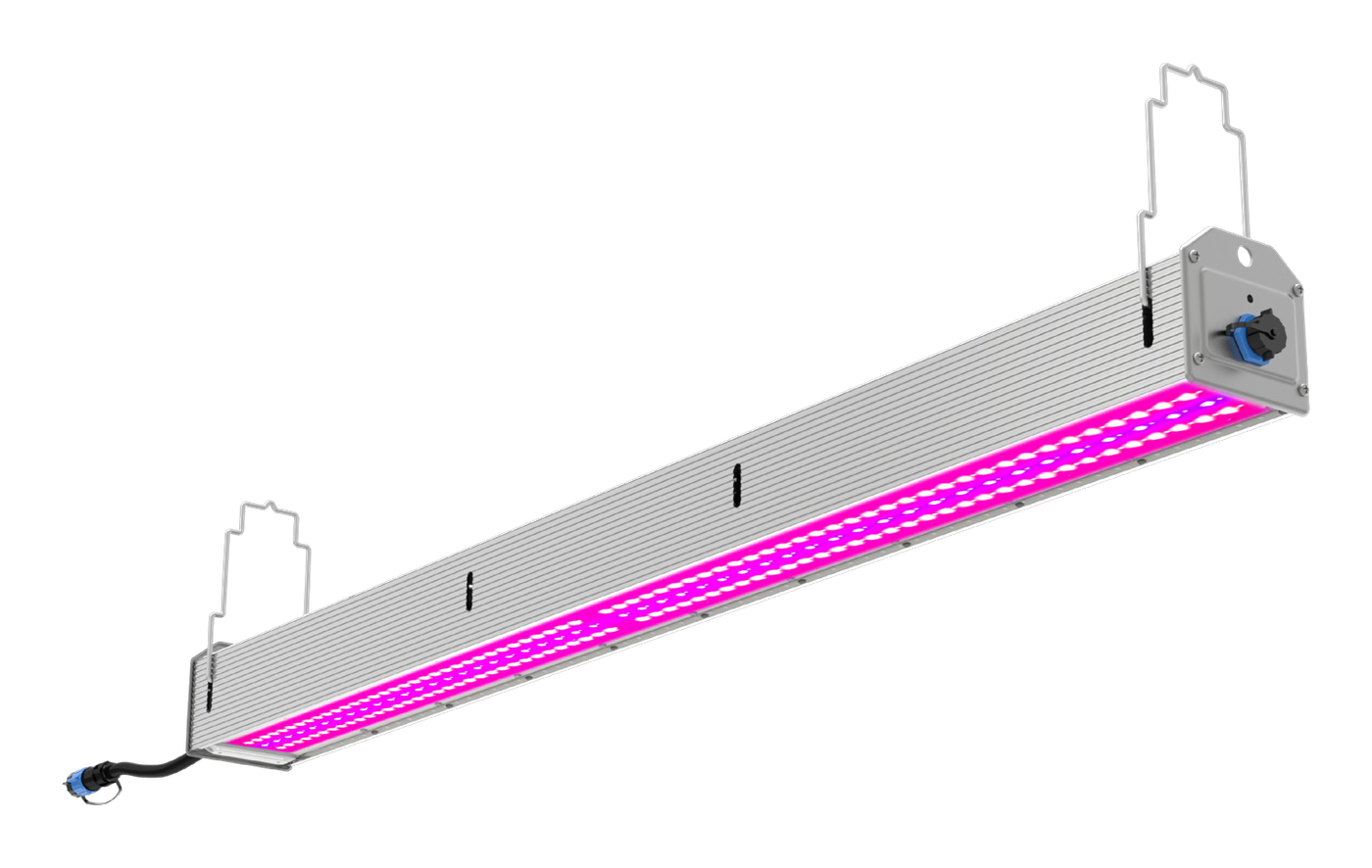

NGRO240
