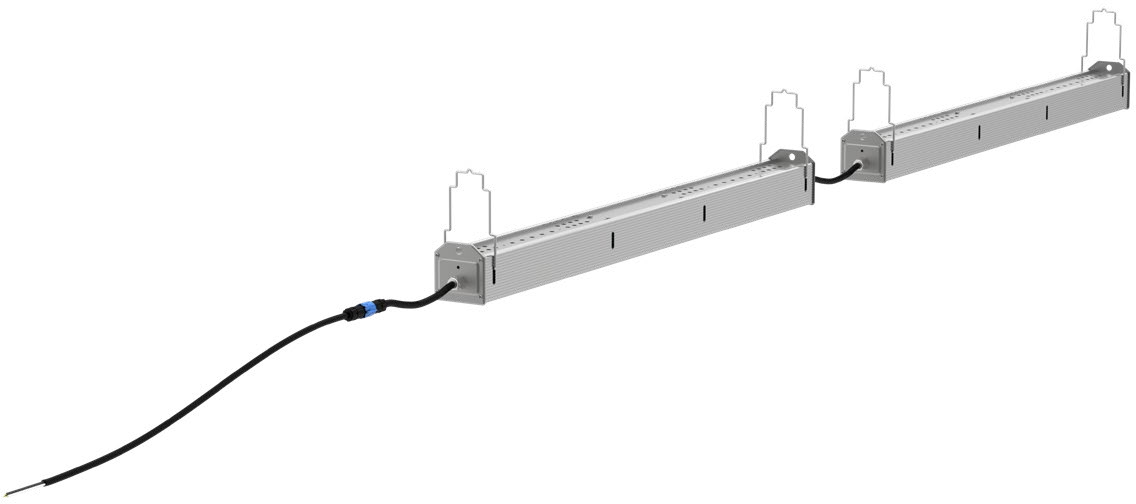

Horticultural luminaire at 3.2 µmol/J, daisy chain up to 20 lights in series
NGRO240 is a horticultural LED luminaire available at 240W and 320W, delivering 768 to 1024 µmol/s of PPF at an efficiency of 3.2 µmol/J with a 120° beam angle. It runs on a 277VAC to 480VAC input at 50/60Hz with a power factor above 0.9 and THD below 25, and up to 20 units can be daisy chained in series from one AC feed. The IP 65 body measures L1092 x W95 x H96mm and weighs 4.1 kg, is rated for 50,000h and operates up to an ambient temperature of 104 °F / 40 °C.
| Input Voltage | 277VAC - 480VAC |
| Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | < 25 |
| Connection | AC input, daisy chain up to 20 lights in series |
| Ingress Protection | IP 65 |
| Max. Ambient Temperature | 104 °F / 40 °C |
| Dimensions | L1092 x W95 x H96mm (L42.99" x W3.74" x H3.78") |
| Net Weight | 4.1 kg / 9.04 lbs |
| PPFD Measurement Height | 36" / 914 mm |
| Efficiency | 3.2 µmol/J |
| Light Output PPF | 768 - 1024 µmol/s |
| Beam Angle | 120° |
| Rated Life | 50,000h |
| Model | Power | Efficiency | Light Output PPF | Beam Angle | Max. Ambient Temperature | Dimensions | Net Weight |
|---|---|---|---|---|---|---|---|
| NLC-NGRO240 | 240W | 3.2µmol/J | 768µmol/s | 120° | 104 °F / 40 °C | L1092 x W95 x H96mm (L42.99" x W3.74" x H3.78") | 4.1 kg / 9.04 lbs |
| NLC-NGRO320 | 320W | 3.2µmol/J | 1024µmol/s | 120° | 104 °F / 40 °C | L1092 x W95 x H96mm (L42.99" x W3.74" x H3.78") | 4.1 kg / 9.04 lbs |
* Values as published in the NLC product catalogue
