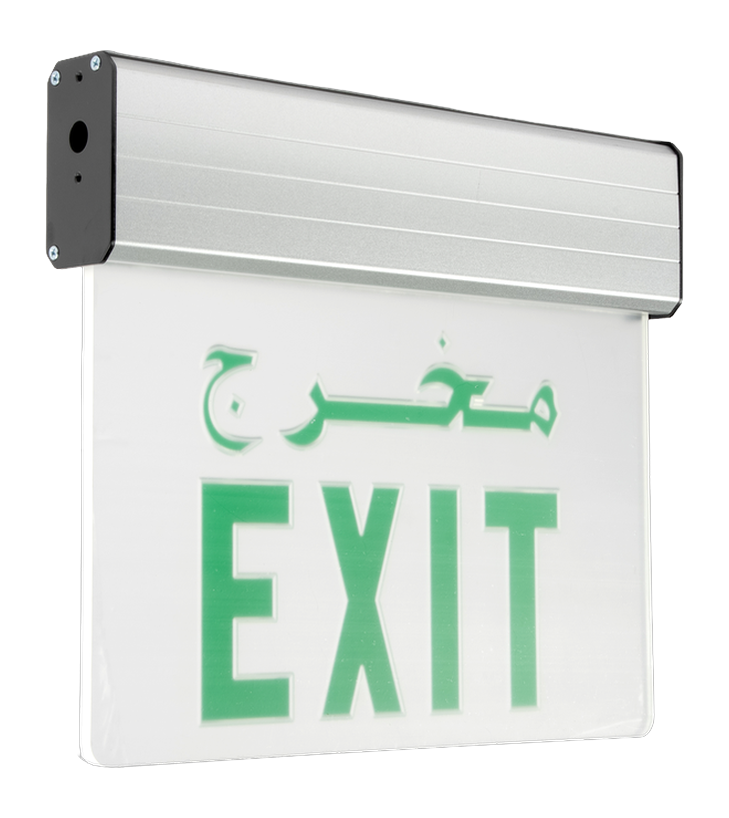

LED emergency exit sign with engraved Arabic & English text.
The LX-740 is an LED emergency exit sign with extruded aluminum housing and engraved Arabic & English text. It operates in Maintained mode with a 3-hour battery backup, mountable on ceiling or wall via universal bracket.
Available in single or double face with red-on-clear, green-on-clear, red-on-mirror, or green-on-mirror panel options. Certified SASO 2902 and UL Listed.
| Source | LED |
| Power | 3.8W |
| Input Voltage | 220–240V · 50/60Hz · (110-277V) |
| Emergency Backup | 3 Hours |
| Operating Mode | Maintained |
| CRI | > 80 |
| Mounting | Universal bracket · Ceiling & Wall |
| Housing | Extruded Aluminum |
| Internal Protection | IP 23 |
| Impact Strength | IK 03 |
| Weight | 1.9 Kg |
| Size (L×H×W) | 330 × 283 × 44 mm |
| Working Temp | 50°C |
| Life Time | 100,000 Hours |
| Warranty | 5 Years |
| Number of Faces | Single Face or Double Face |
| Text Type | Engraved Arabic & English |
| Certification | SASO 2902 · UL Listed |
| Housing | Extruded Aluminum |
| Mounting | Universal bracket · Ceiling & Wall |
| Operating Mode | Maintained |
| RC | Red on clear (Single Face) |
| GC | Green on clear (Single Face) |
| RM | Red on mirror (Double Face) |
| GM | Green on mirror (Double Face) |
| Customized | Text · Sticker · Right/Left Arrow |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
