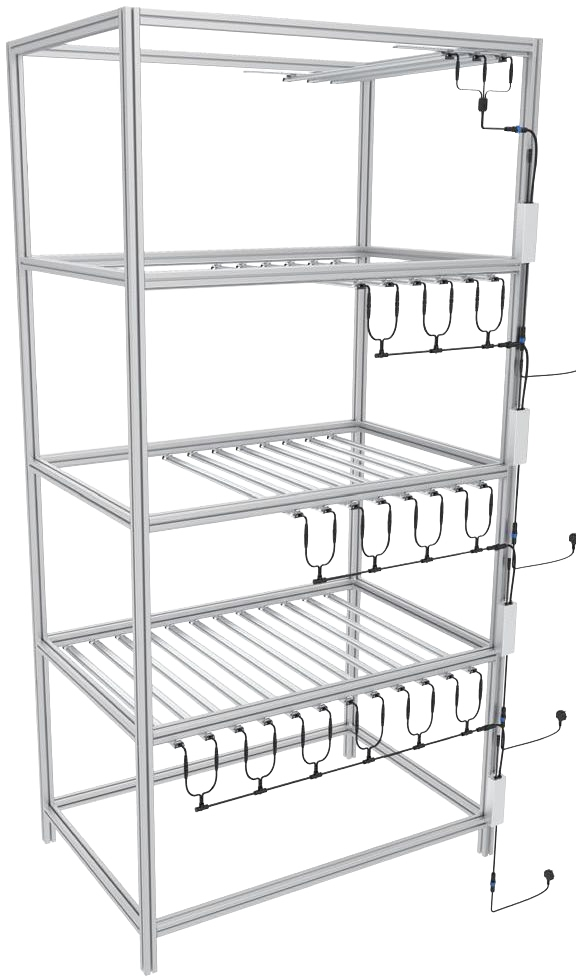

Multiple-row light bar assembly accommodating up to 12 bars for various types of cultivation rack
NGRO75 is a multiple-row light bar assembly for cultivation racks, listed with 3, 6, 8 or 12 bars for 75W, 150W, 240W and 320W systems. Efficiency is 2.6 to 3.2 µmol/J across the configurations, with 195 to 1024 µmol/s PPF over a 120° beam, on a 120-277V AC 50/60Hz supply with power factor above 0.9 and THD below 25. Each light bar measures L1110 x W40 x H20.7mm and weighs 0.35 kg. The range is rated IP65, 50,000h, and a maximum ambient of 104 °F / 40 °C.
| Input Voltage | 120-277V AC |
| Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | < 25 |
| Connection | Multiple-row light bar assembly, capable of accommodating up to 12 light bars, suitable for various types of cultivation rack |
| Ingress Protection | IP65 |
| Max. Ambient Temperature | 104 °F / 40 °C |

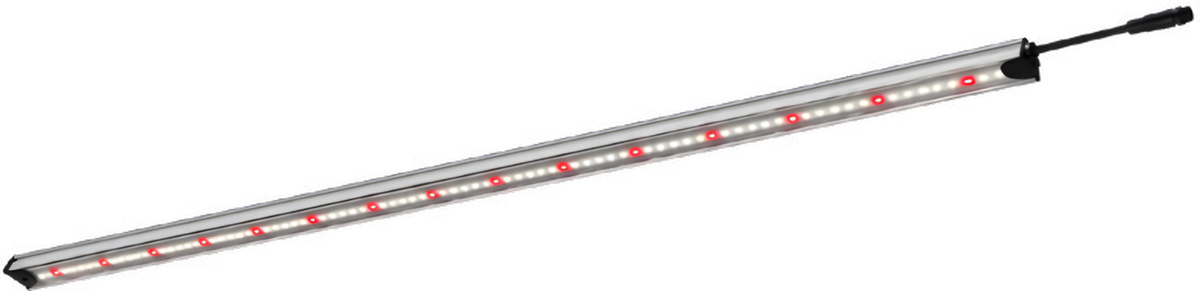

| Light Bar Dimensions | L1110 x W40 x H20.7mm (43.30" x 1.57" x 0.81") |
| Light Bar Net Weight | 0.35 kg / 0.77 lbs |
| Height | 12" / 305mm |
| Configuration | 3, 6, 8 or 12 bars |
| Efficiency | 2.6 - 3.2 µmol/J |
| Light Output PPF | 195 - 1024 µmol/s |
| Beam Angle | 120° |
| Rated Life | 50,000h |
| Model | Power | Efficiency | Light Output PPF | Beam Angle | Max. Ambient Temperature | Dimensions | Net Weight |
|---|---|---|---|---|---|---|---|
| NLC-NGRO75 (3 Bars) | 75W | 2.6-3.2μmol/J | 195-240μmol/s | 120° | 104 °F / 40 °C | Light bar: L1110 x W40 x H20.7mm (43.30" x 1.57" x 0.81") | Light bar: 0.35kg / 0.77 lbs |
| NLC-NGRO150 (6 Bars) | 150W | 2.6-3.2μmol/J | 390-480μmol/s | 120° | 104 °F / 40 °C | Light bar: L1110 x W40 x H20.7mm (43.30" x 1.57" x 0.81") | Light bar: 0.35kg / 0.77 lbs |
| NLC-NGRO240 (8 Bars) | 240W | 2.6-3.2μmol/J | 624-768μmol/s | 120° | 104 °F / 40 °C | Light bar: L1110 x W40 x H20.7mm (43.30" x 1.57" x 0.81") | Light bar: 0.35kg / 0.77 lbs |
| NLC-NGRO320 (12 Bars) | 320W | 2.6-3.2μmol/J | 932-1024μmol/s | 120° | 104 °F / 40 °C | Light bar: L1110 x W40 x H20.7mm (43.30" x 1.57" x 0.81") | Light bar: 0.35kg / 0.77 lbs |
* Values as published in the NLC product catalogue
