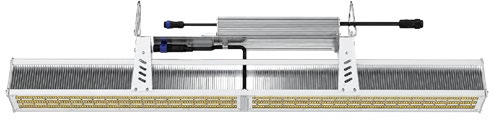

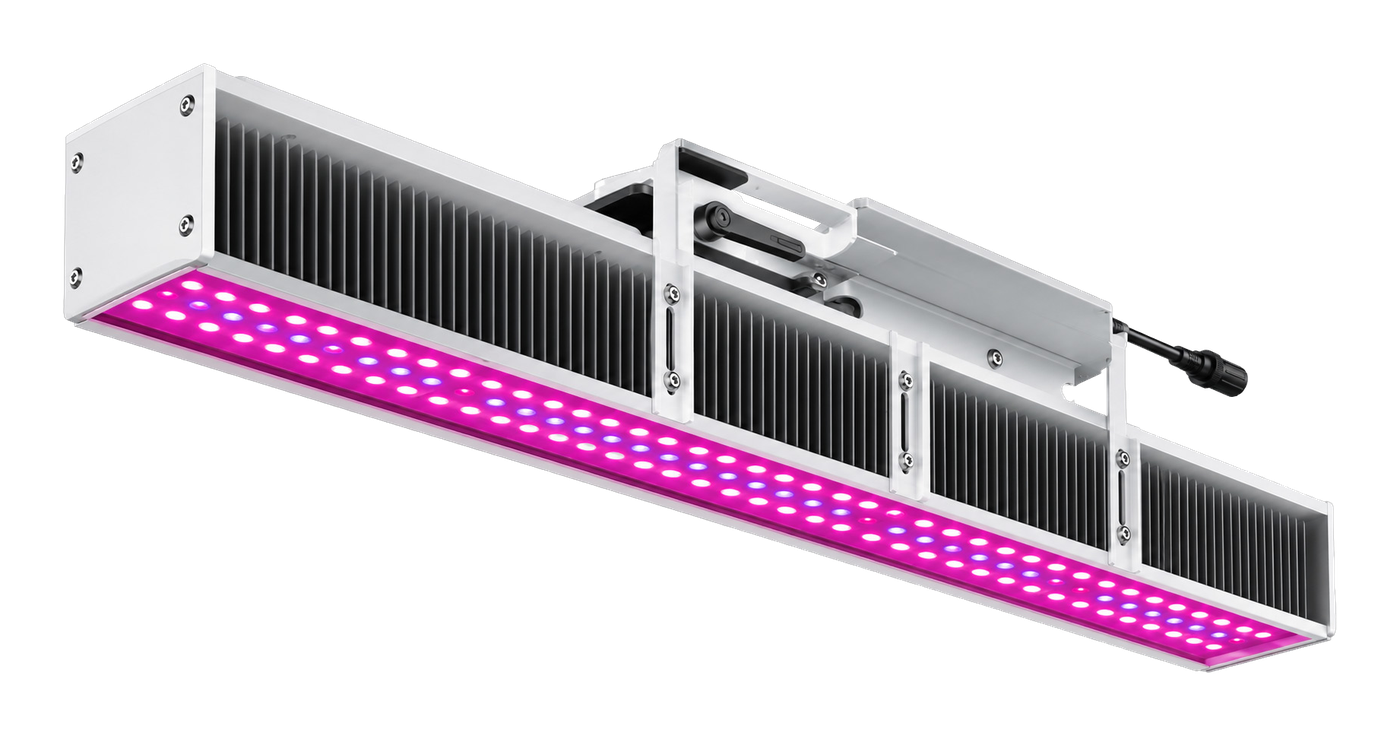

Dimmable Horticultural Top Light

NGRO480

IP 66 top light with 0-10V dimming, daisy chain up to 50 fixtures and optional GLC 1 controller

IP 66
277VAC - 347-480VAC
50/60Hz
2.6 - 3.2 µmol/J
50,000h Rated Life
PF >0.9
THD <25
0-10V Dimming
Daisy Chain up to 50 Lights
GLC 1 Controller (optional)
480W / 600W
Power
1248 - 1920 µmol/s
Light Output PPF
2.6 - 3.2 µmol/J
Efficiency
120°
Beam Angle
104 °F / 40 °C
Max. Ambient Temperature
IP 66
Ingress Protection

About this Product

NGRO480 is a horticultural LED top light offered at 480W and 600W, delivering 1248 to 1920 µmol/s of PPF at 2.6 to 3.2 µmol/J over a 120° beam. It accepts 277VAC and 347-480VAC input at 50/60Hz with a power factor above 0.9 and THD below 25, supports 0-10V dimming and daisy chaining of up to 50 fixtures, and can be driven by the optional GLC 1 controller with an optional RJ cable. The IP 66 housing measures L1072.4 x W98.6 x H188.1mm and weighs 8.0 kg at 480W or 8.05 kg at 600W, is rated for 50,000h and operates up to an ambient of 104 °F / 40 °C.

Electrical Parameters

Input Voltage277VAC - 347-480VAC
Frequency50/60Hz
Power Factor>0.9
THD< 25
Dimming0-10V
ConnectionDaisy chain, up to 50 pcs lights
ControlGLC 1 Controller (optional), RJ cable optional according to the requirement

Environmental Parameters

Ingress ProtectionIP 66
Max. Ambient Temperature104 °F / 40 °C

Construction

DimensionsL1072.4 x W98.6 x H188.1mm (42.22" x 3.88" x 7.41")
Net Weight (NLC-NGRO480)8.0 kg / 17.64 lbs
Net Weight (NLC-NGRO600)8.05 kg / 17.75 lbs
PPFD Measurement Height3FT

LED & Light Source

Efficiency2.6 - 3.2 µmol/J
Light Output PPF1248 - 1920 µmol/s
Beam Angle120°
Rated Life50,000h
ModelPowerEfficiencyLight Output PPFBeam AngleMax. Ambient TemperatureDimensionsNet Weight
NLC-NGRO480480W2.6-3.2µmol/J1248-1536µmol/s120°104 °F / 40 °CL1072.4 x W98.6 x H188.1mm (42.22" x 3.88" x 7.41")8.0kg / 17.64 lbs
NLC-NGRO600600W2.6-3.2µmol/J1560-1920µmol/s120°104 °F / 40 °CL1072.4 x W98.6 x H188.1mm (42.22" x 3.88" x 7.41")8.05kg / 17.75 lbs

* Values as published in the NLC product catalogue
