Light from the Ground Up.

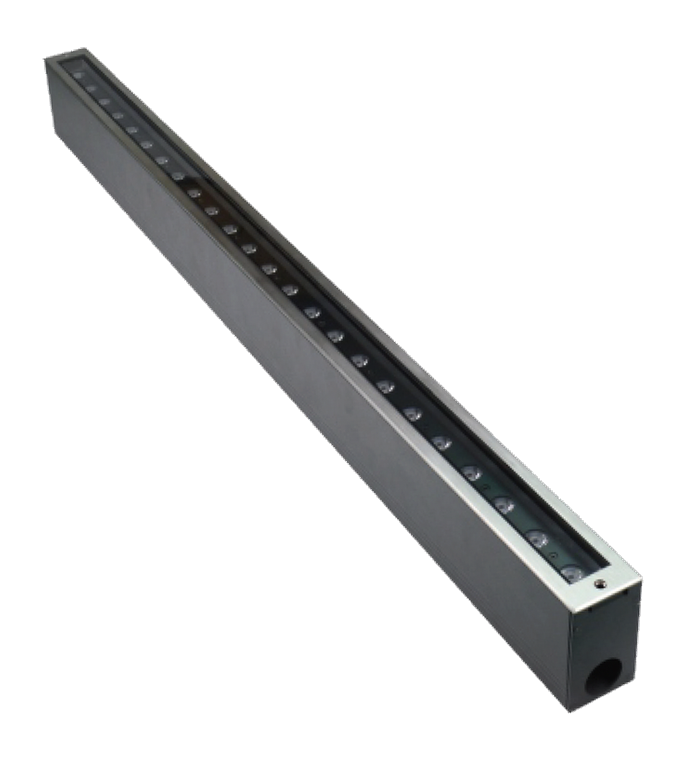

CONTRAST is a linear in-ground luminaire built for recessed floor installation. Its extruded aluminum + 316 stainless steel construction with American Tiger powder-paint treatment delivers superior corrosion resistance, while the 8 mm tempered-glass walkable surface withstands foot traffic and IK08 impact.
Available with five beam-angle optics for grazing walls, accenting building exteriors and architectural surfaces. Full dimming support (0/1-10V, DALI, TRIAC, PWM) and optional emergency backup.
| Input Voltage | 100–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Dimming | 0/1-10V · DALI · TRIAC · PWM |
| Emergency Backup | Optional |
| Working Temperature | +45°C |
| Ingress Protection | IP67 |
| Impact Resistance | IK08 |
| Anti-Corrosion | 316 Stainless Steel hardware |
| Cover | 8 mm Tempered Glass |
| Switching Cycles | >50,000 times |
| Housing | Extruded Aluminum + 316 Stainless Steel |
| Mounting | Recessed Floor Installation |
| Optics | UV-PC Lens / 8mm Tempered Glass |
| Body Finish | American Tiger Powder Paint Treatment |
| Body Color | Silver |
| Accessories | Honeycomb Louvre · Mounting Sleeve · Cable Connector |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Switching Cycles | >50,000 times |
| Flicker Free | Yes |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-CT 1L | 24×2W | 3,360 lm | 15° | ≥80 | L1000 × W55 × H80mm |
| NLC-CT 1L | 24×2W | 3,360 lm | 20° | ≥80 | L1000 × W55 × H80mm |
| NLC-CT 1L | 24×2W | 3,360 lm | 25° | ≥80 | L1000 × W55 × H80mm |
| NLC-CT 1L | 24×2W | 3,360 lm | 40° | ≥80 | L1000 × W55 × H80mm |
| NLC-CT 1L | 24×2W | 3,360 lm | 60° | ≥80 | L1000 × W55 × H80mm |
| NLC-CT 2L | 48×2W | 6,720 lm | 15°–60° | ≥80 | L992 × W55 × H90mm |
* Values based on CCT 4000K | ±10% tolerance
