Subtle Light, Strong Impact.

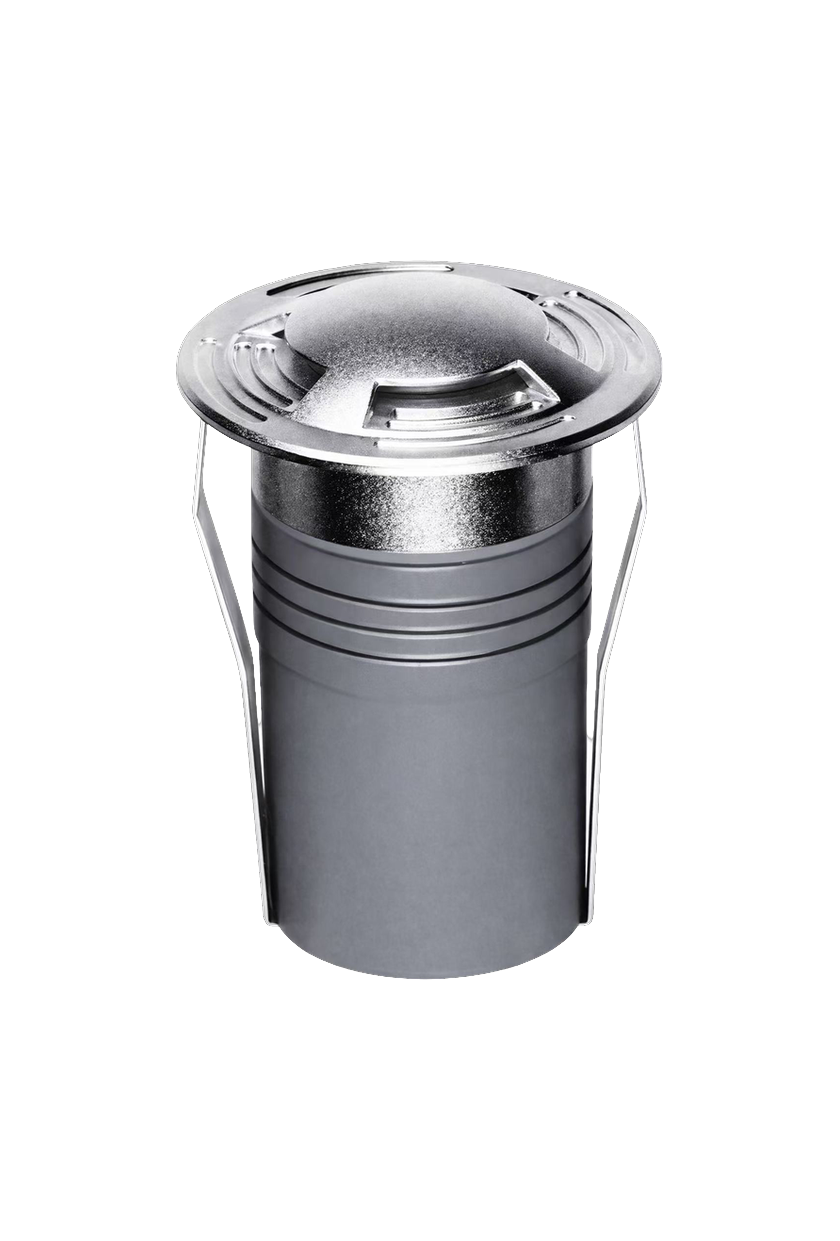

JAR is a compact recessed cylindrical up-light featuring a durable gray body and silver metal top. Designed with a clean, modern finish, it delivers bright, focused illumination from the ground up, suitable for both indoor and outdoor lighting applications.
Available in single-LED, RGB, and RGBW configurations with multiple beam options and full DMX/DALI/Triac/1-10V dimming support.
| Input Voltage | DC 12V/24V/48V · AC 100–220V · 50/60Hz |
| Power Factor | >0.5 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | Triac · 1-10V · DALI · DMX512 (built-in/external) · PWM |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | Suitable for outdoor use |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| 1S Single-LED | D55 / D40 × H85 mm |
| 2S Twin | D116 / D70 × H115 mm |
| 4S Quad | D102 × H150 mm |
| Housing | 316 Stainless Steel + Aluminum |
| Mounting | Under-ground (recessed) |
| Light Window | Polycarbonate (PC) |
| Cable Gland | IP67 Copper, Nickel-Coated |
| LED Type | SMD3535 |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-JA01–03 | 1–3W | 15–45 lm | Single light output | ≥80 | DC/AC |
| NLC-JA RGB | 3 × 1W | 60 lm | RGB 3-in-1 | ≥80 | DMX512 |
| NLC-JA RGBW | 4 × 1W | 60 lm | RGBW 4-in-1 | ≥80 | DMX512 |

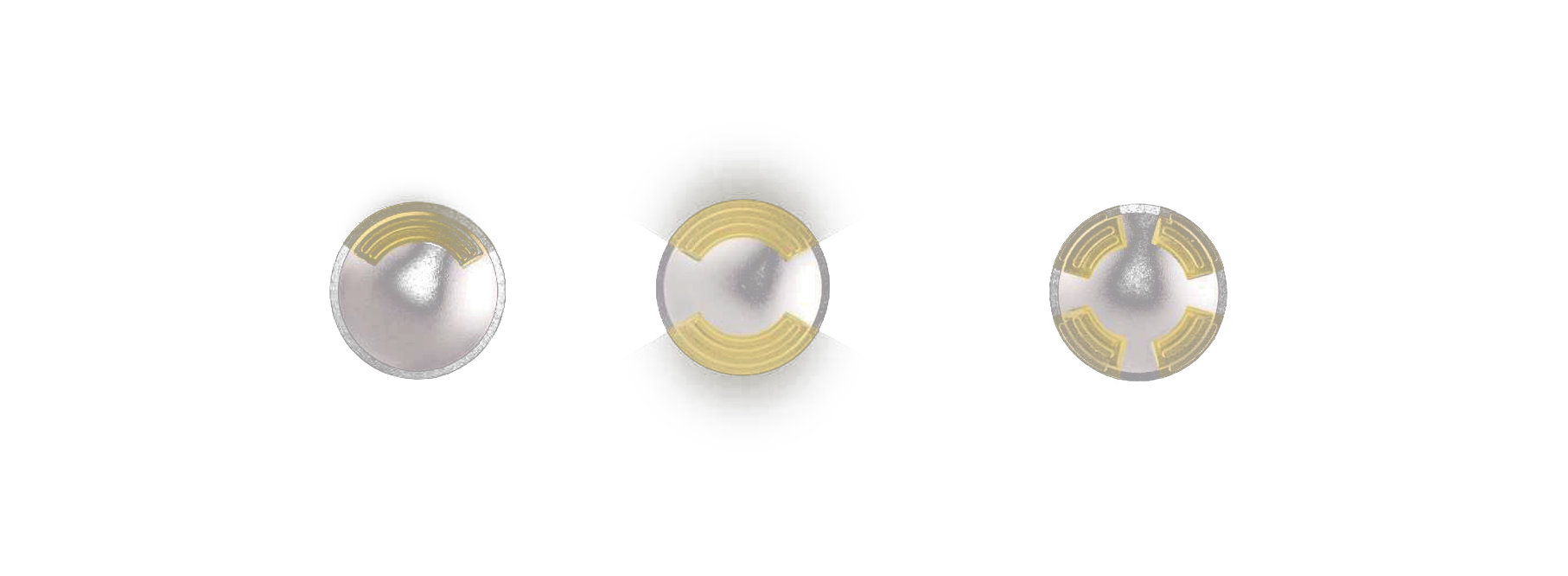

| NLC-JA03–09 | 3–9W | 45–135 lm | 2/4 light outputs | ≥80 | DC/AC |
* Values based on CCT 3000K | ±10% tolerance
