Subtle design. Powerful glow.

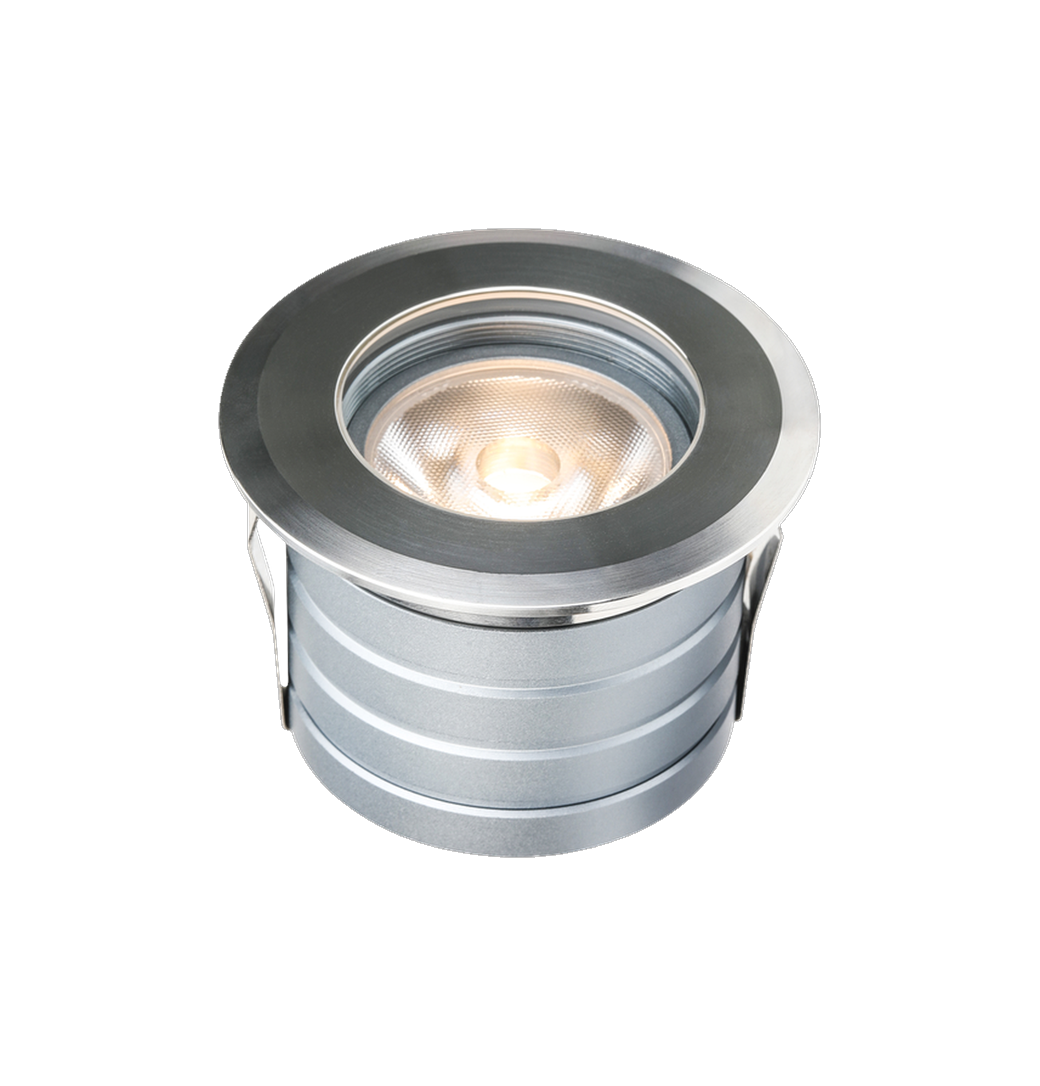

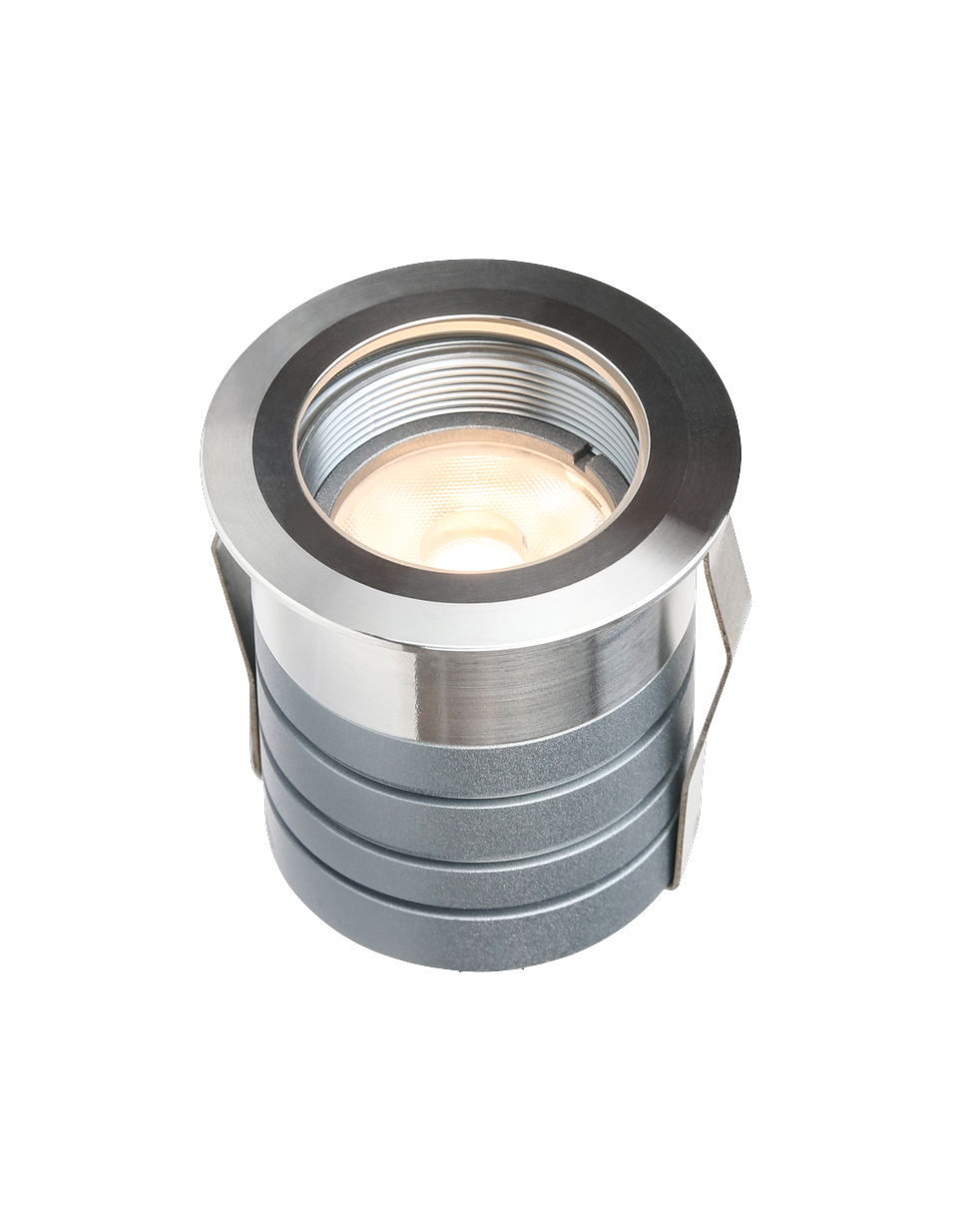

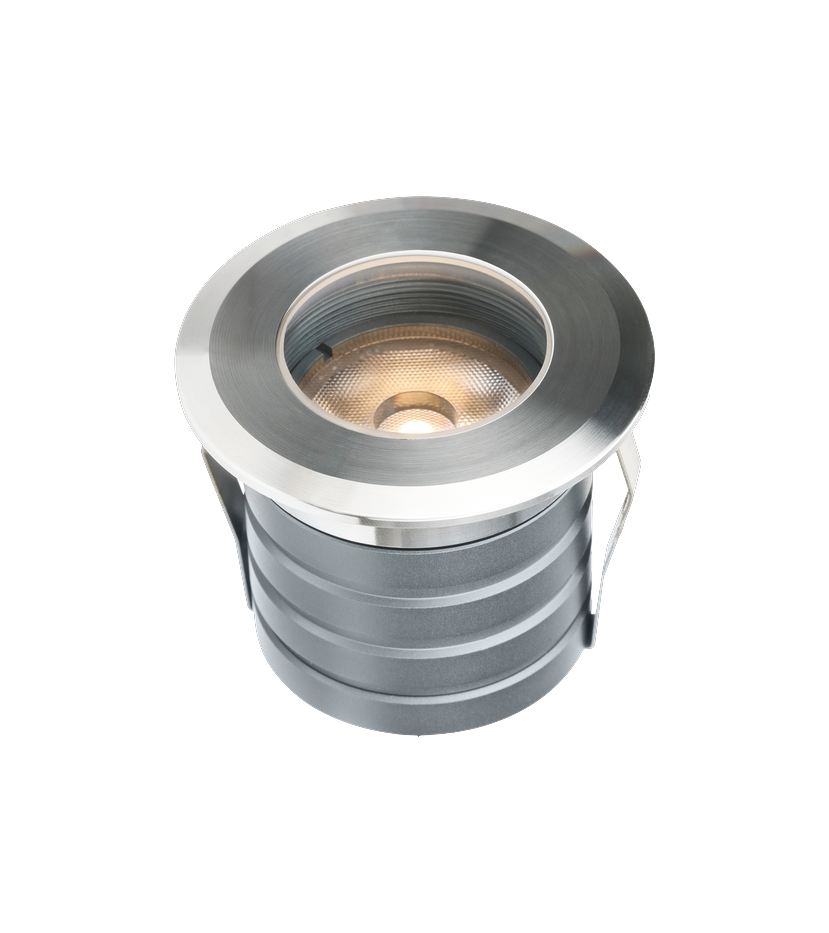

ORCHID is a compact recessed mini in-ground up-light that sits flush in outdoor surfaces and gives focused light with a clean, modern look. Built with a 304 stainless steel and aluminum housing and ultra-white tempered glass, rated IP67 and IK08.
Available in DC and AC variants, with single-color (2700K–6500K), RGB and RGBW options. Multiple beam angles (6° to 120°) and full DMX/DALI/Triac/0-10V dimming support.
| Input Voltage | DC 5V/12V/24V/48V · AC 100–220V/240V · 50/60Hz |
| Power Factor | >0.5 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | On/Off · DMX · 0-10V · DALI · PWM · Triac (built-in/external) |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP67 |
| Impact Resistance | IK08 |
| Beam Angle Options | 6° / 10° / 15° / 24° / 36° / 38° / 48° / 60° / 110° / 120° |
| Housing | 304 Stainless Steel + Aluminum |
| Mounting | In-ground recessed |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP67 Copper Nickel-Coated (or 316 SS optional) |
| LED Type | COB |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| EM6261 (1–3W) | 1–3W | 195 lm | 15°–120° | ≥80 | Single LED · COB |
| EM6258 (1–3W) | 1–3W | 195 lm | 10°–110° | ≥80 | Compact head |
| EM6259 (1–6W) | 1–6W | 390 lm | 15°–120° | ≥80 | Medium head |
| EM6260 (1–9W) | 1–9W | 585 lm | 6°–110° | ≥80 | Large head |
* Values based on CCT 3000K | ±10% tolerance
