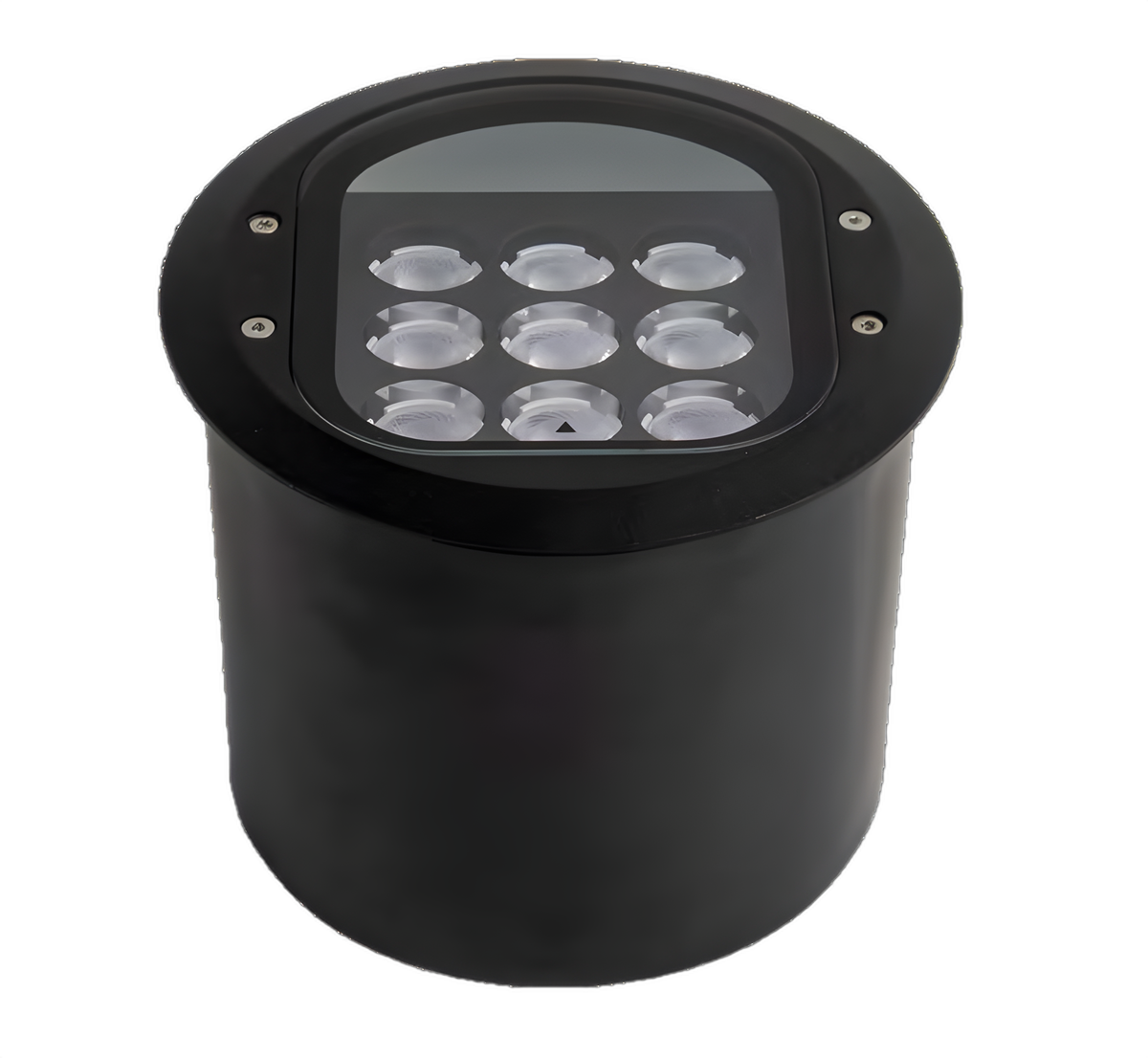

In-ground LED luminaire rated IP 67 and IK10, from 1W to 72W, with a pressure breather.
SHOE is an in-ground LED luminaire rated IP 67 and IK10. It has a pressure breather to balance the pressure inside the housing with the outside air. It is offered from 1W to 72W in several housing sizes, from about 60 mm to 220 mm across, with system output from 80 lm to 5760 lm at 80 lm/W, and beam angles from 10° to 60°.
It runs on DC 24V or AC 220V, 50/60 Hz, with a rated life of 50,000 hours. Colour options are single colour, dual white and RGBW. CRI is above 70 as standard and above 80 as an option. The housings are listed as Class I and Class III.
| Input Voltage | DC 24V / AC 220V · 50/60Hz |
| Protection Class | Class I / Class III |
| Ingress Protection | IP 67 |
| IK Rating | IK10 |
| Pressure Breather | Yes |
| Lifetime | 50,000h |
| Housing Sizes | Ø60 mm to Ø220 mm |
| Colour Options | Single colour / dual white / RGBW |
| Efficiency | 80LM/W |
| CRI | Standard: >70 · Optional: >80 |
| Beam Angle | 10° / 20° / 30° / 45° / 60° |
| Lifetime | 50,000h |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SHE | 1W to 3W | 80LM/W | 80LM to 240LM | 10° to 60° | Standard: >70 · Optional: >80 |
| NLC-SHE | 6W to 9W | 80LM/W | 480LM to 720LM | 10° to 60° | Standard: >70 · Optional: >80 |
| NLC-SHE | 12W to 15W | 80LM/W | 960LM to 1200LM | 10° to 60° | Standard: >70 · Optional: >80 |
| NLC-SHE | 18W to 24W | 80LM/W | 1440LM to 1920LM | 10° to 60° | Standard: >70 · Optional: >80 |
| NLC-SHE | 36W to 48W | 80LM/W | 2880LM to 3840LM | 10° to 60° | Standard: >70 · Optional: >80 |
| NLC-SHE | 54W to 72W | 80LM/W | 4320LM to 5760LM | 10° to 60° | Standard: >70 · Optional: >80 |
* Values as published in the NLC product catalogue
