Subtle Form. Striking Effect.

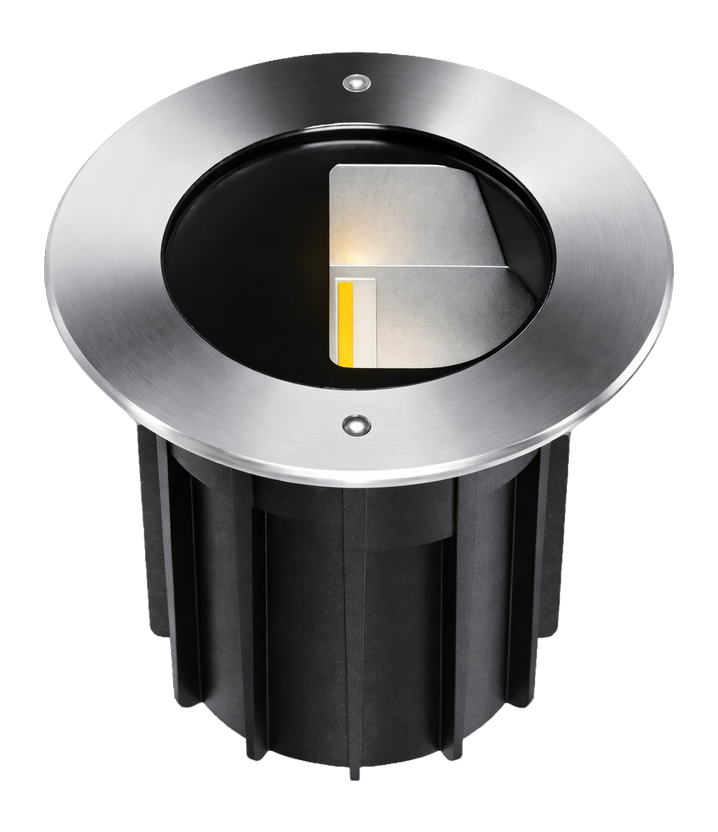

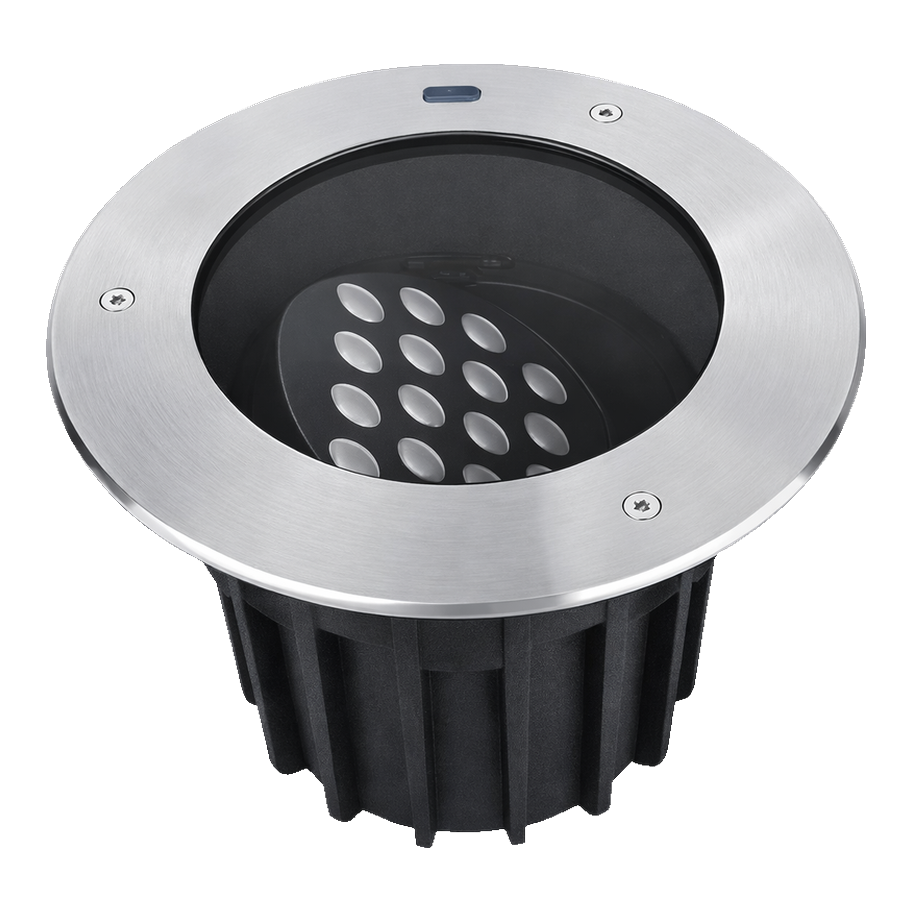

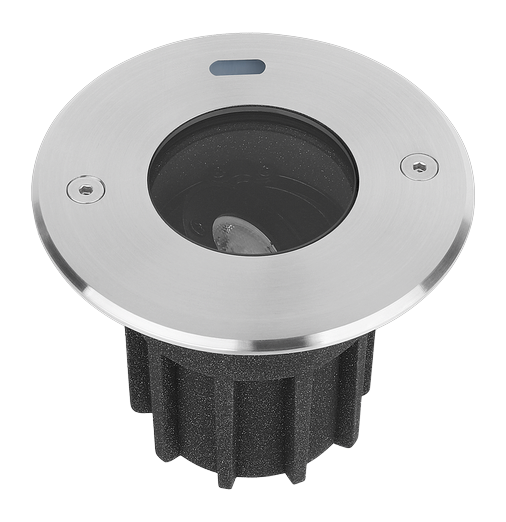

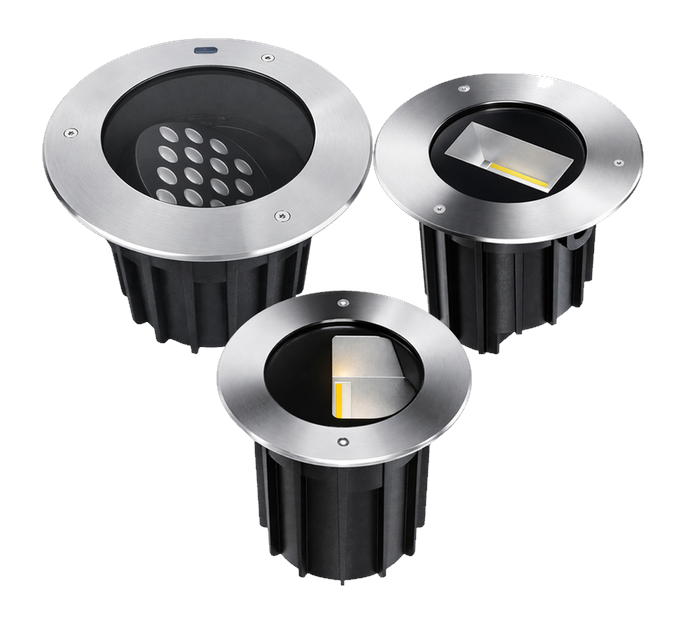

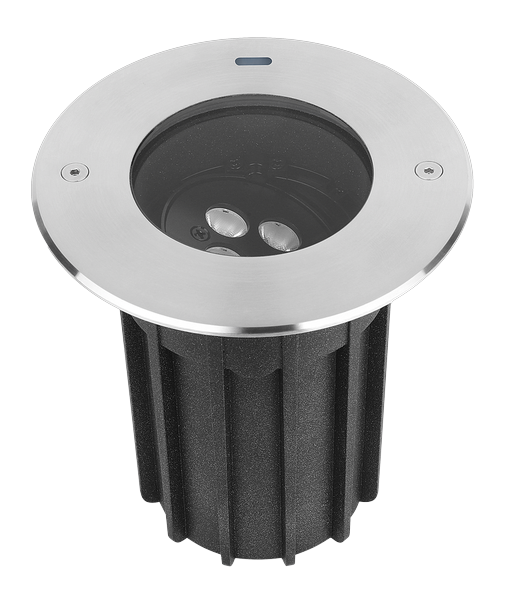

ATHENE is an adjustable in-ground up-light series with a manually-tilting front cover, available in five different sizes with a wide range of optics. Built with SUS 316L stainless steel housing for marine-grade corrosion resistance, plus ultra-white tempered glass at IP67 with IK08–IK10 impact ratings.

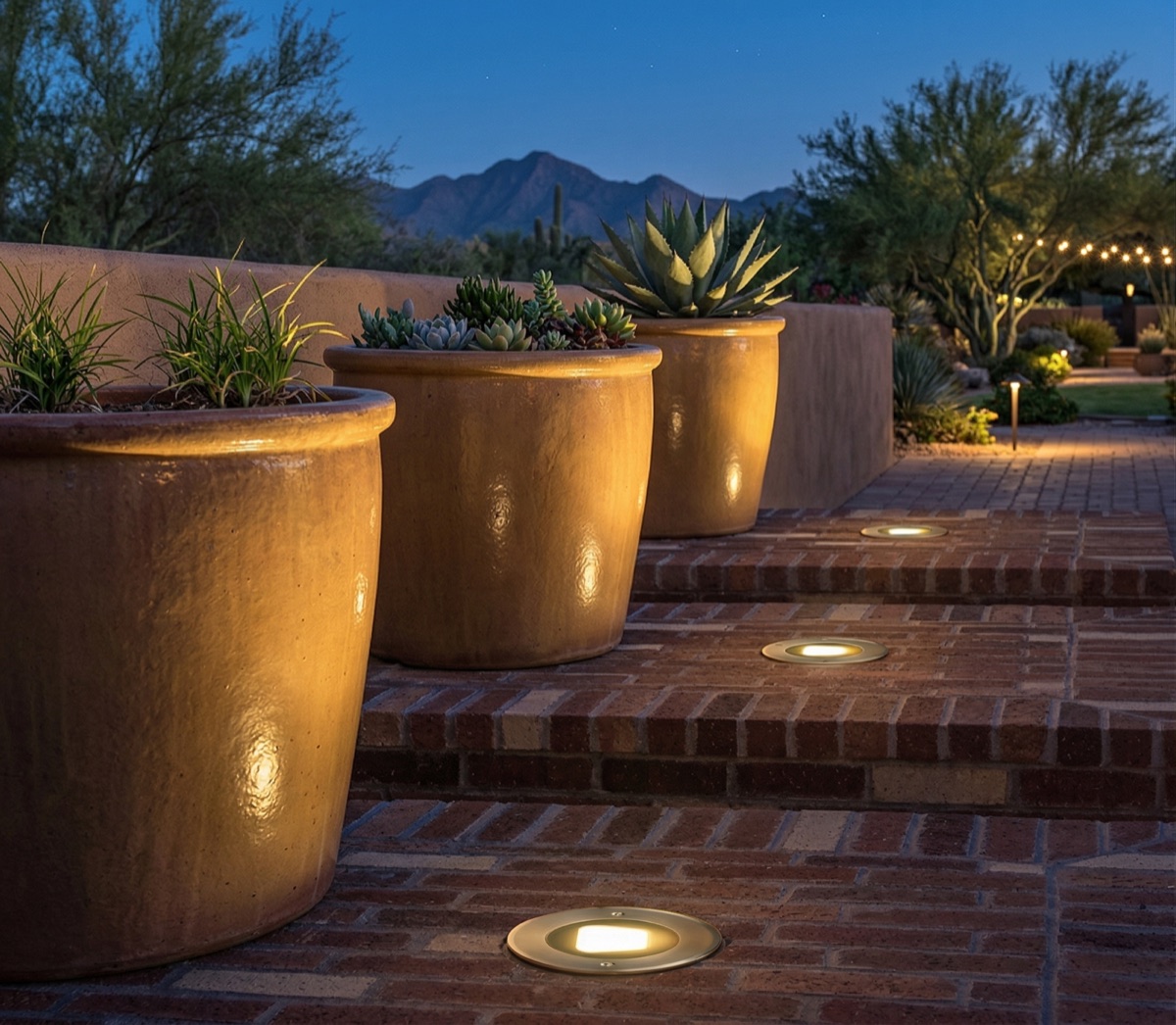

Ideal for lighting up large and small public spaces, building facades and trees with high performance. Single-LED, RGB and RGBW configurations from 1W to 50W, with optional honeycomb grilles, anti-glare snoots, elliptical filters and colored diffusers.
| Input Voltage | DC 12V/24V/48V · AC 100–220V · 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | Triac · 1-10V · DALI · DMX512 (built-in/external) · PWM |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP67 |
| Impact Resistance | IK08 → IK10 (size dependent) |
| Housing | SUS 316L Stainless Steel |
| Mounting | In-ground (recessed) |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP67 Copper Nickel-Coated (or 316 SS optional) |

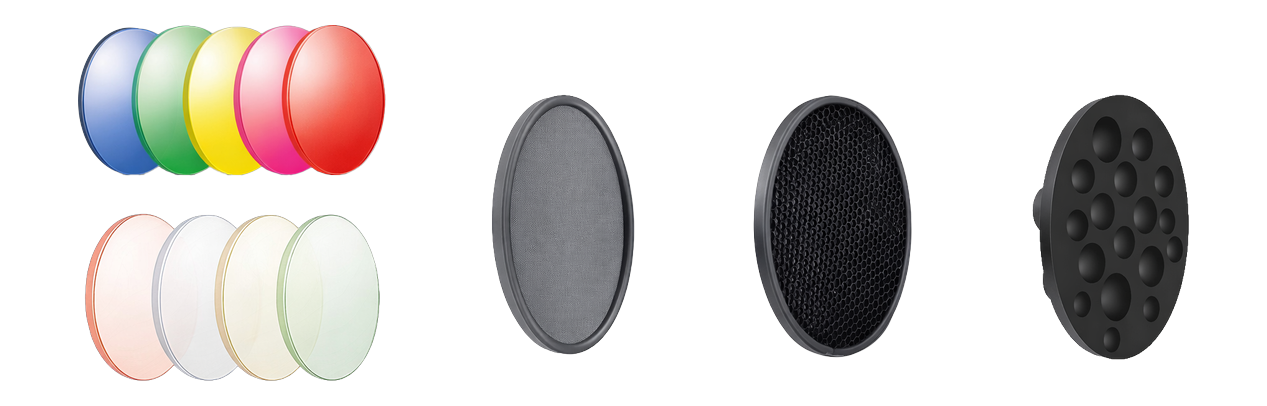

| Accessories | Colored Diffuser · Elliptical Filter · Honeycomb Grille · Anti-glare Snoot |
| LED Type | SMD3535 / OSRAM Chip (high-power models) |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|

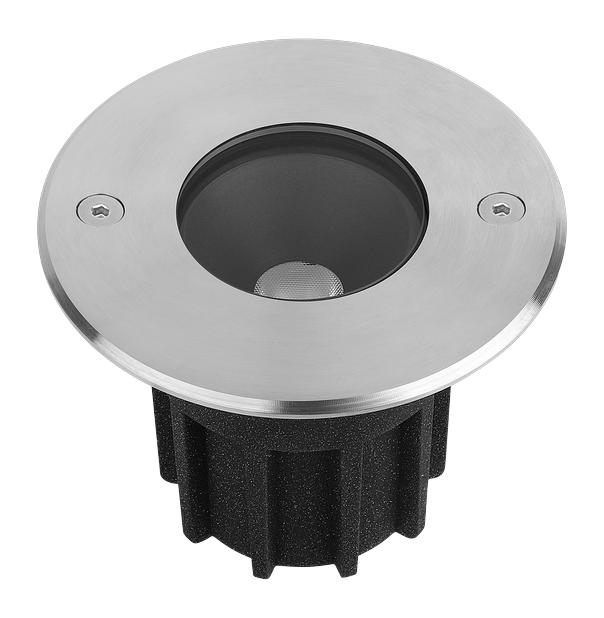

| NLC-AT 1–3.5W | 1×1–3.5W | 160 lm | 15° / 25° / 30° / 40° | ≥80 | Compact · IK08 |
| NLC-AT 8W | 4×1–2W | 640 lm | 15°–40° | ≥80 | RGB / RGBW · IK09 |

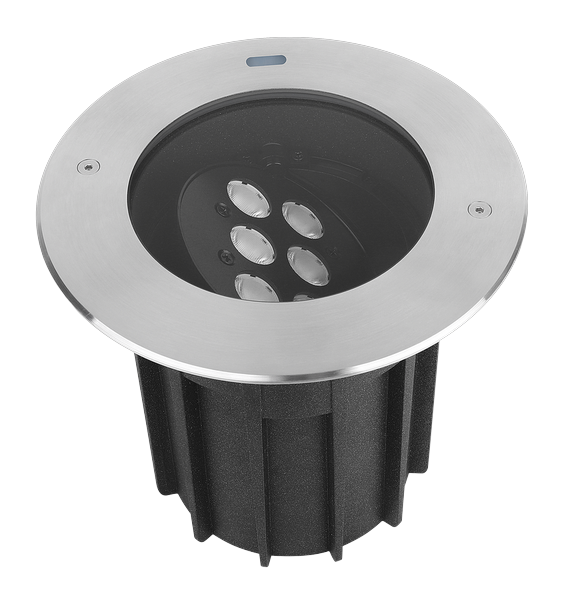

| NLC-AT 18W | 6×1–3W | 1,440 lm | 10°–40° / 10°×45° | ≥80 | RGB / RGBW · IK09 |

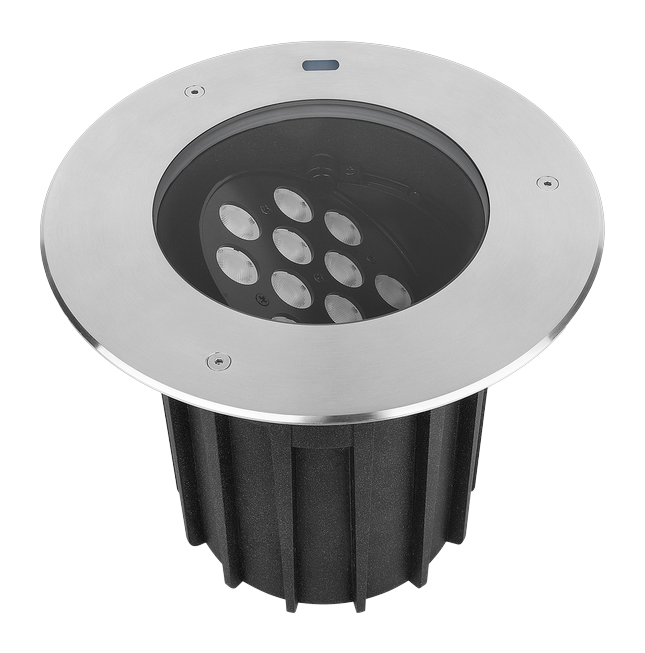

| NLC-AT 24W | 12×1–2W | 1,920 lm | 10°–40° / 10°×45° | ≥80 | IK10 |

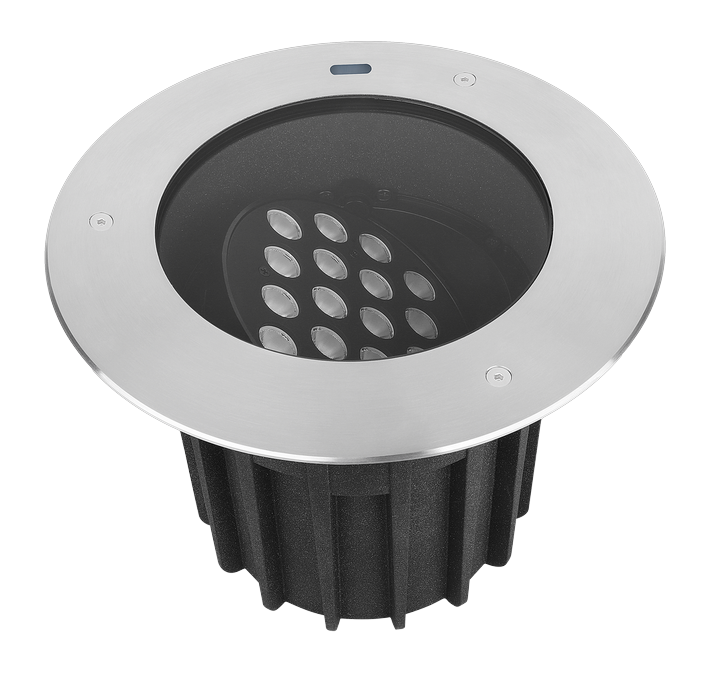

| NLC-AT 18–36W | 18×1–2W | 1,440 lm | 10°–40° / 10°×45° | ≥80 | SMD · IK10 |

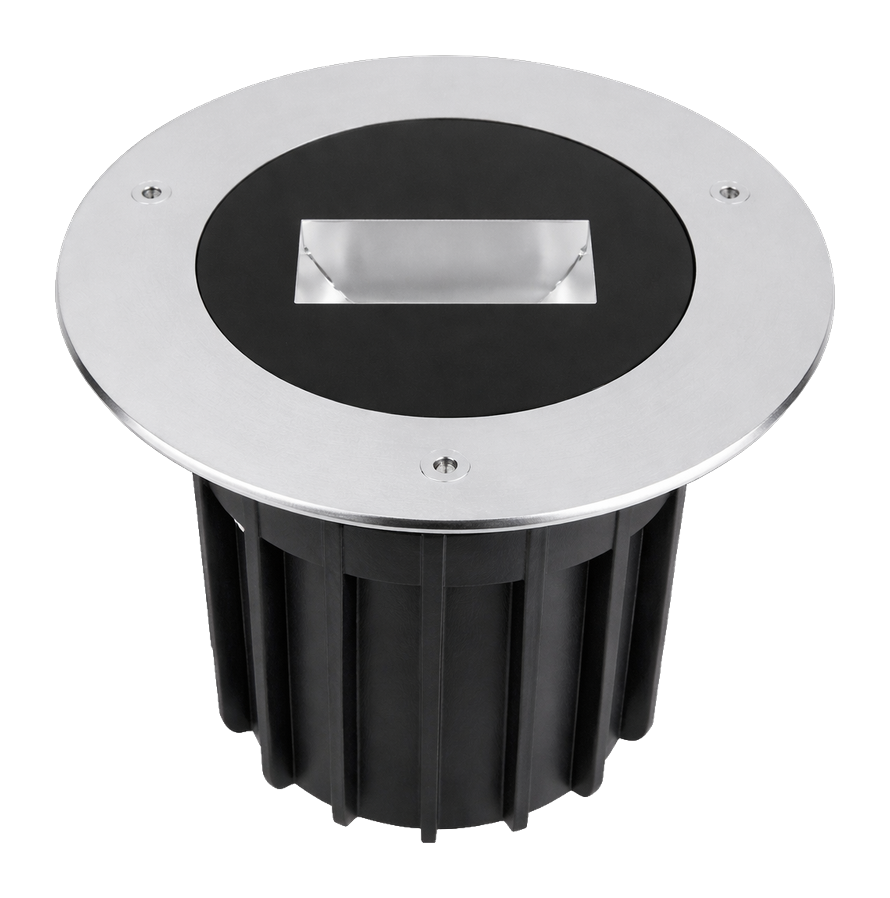

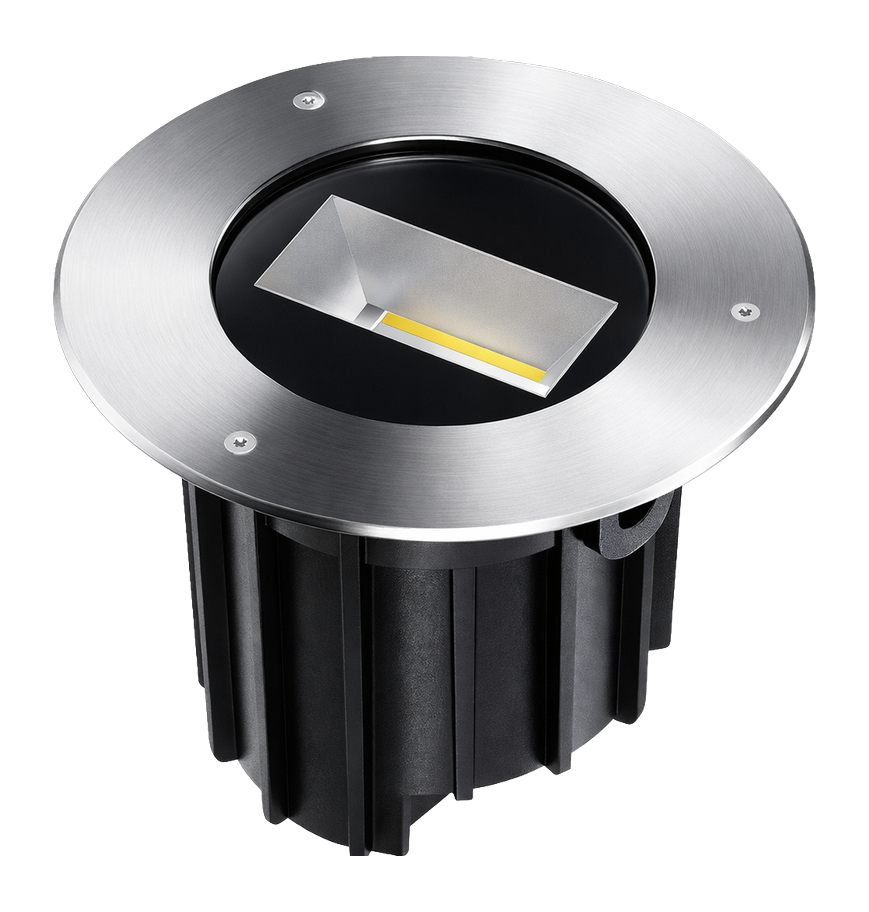

| NLC-AT 27W | OSRAM (1 LED) | 1,620 lm | 25°×70° | ≥80 | Special wall-washer |
| NLC-AT 36W | OSRAM (1 LED) | 2,400 lm | 25°×70° | ≥80 | High-power · IK10 |
| NLC-AT 50W | OSRAM (1 LED) | 4,000 lm | 25°×70° | ≥80 | Maximum output · IK10 |
* Values based on CCT 3000K | ±10% tolerance
