Light that rises with elegance.

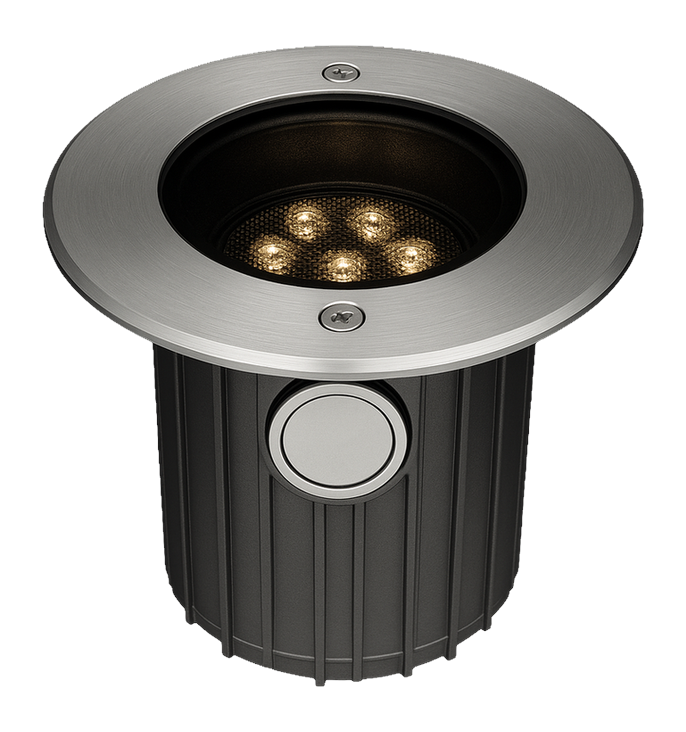

LAVA is a in-ground LED up-light fixture engineered with a sleek marine-grade SUS 316L stainless-steel trim and durable die-cast aluminum housing. Its protected internal lens delivers focused, glare-controlled illumination, ideal for landscape uplighting, façade accents, and architectural pathways.
Available in 13.2W (756 lm) and 18.2W (1,389 lm @ 76 lm/W) variants with up to seven beam-angle options (9° narrow spot through 50° wide flood). Features ±30° adjustable tilt, tempered step glass rated for 2,961 kg pedestrian load, and full dimming protocol support.
| Input Voltage | 24V DC / 100–277VAC · 50/60Hz |
| Power Factor | >0.9 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Glass Pressure Capacity | 2,961 kg (full area) |
| Housing | Die-Cast Aluminum |
| Front Cover | Hard chrome-plated Marine grade SUS 316L stainless steel |
| Mounting | In-Ground (Walk-On) |
| Optics | Tempered Step Glass |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · White · Dark Gray |
| Tilt Adjustment | ±30° |

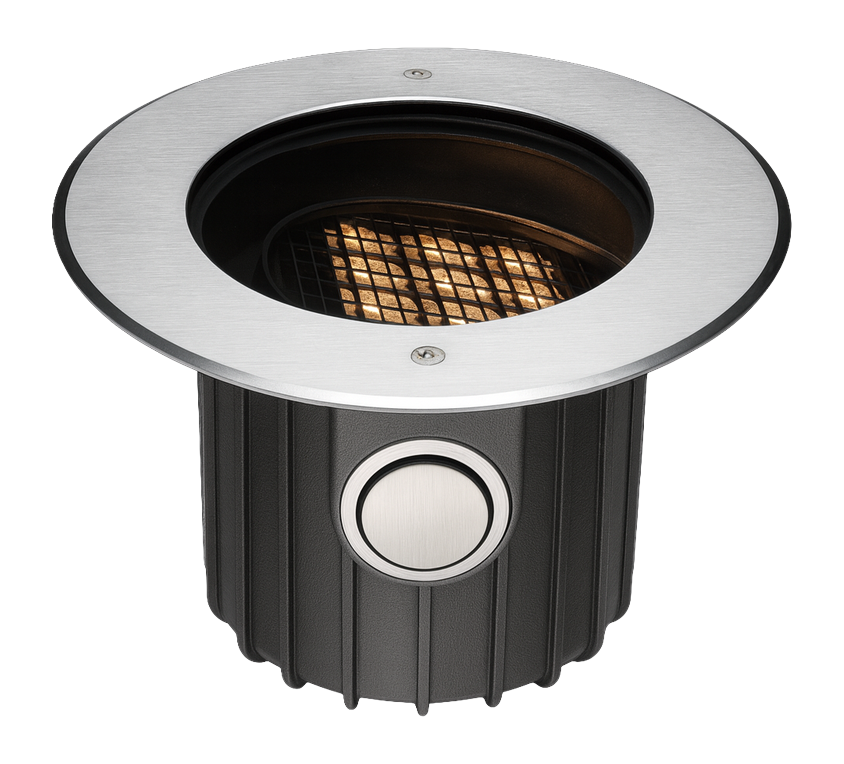

| Accessories | Honeycomb Louver (optional) |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-LV 13.2W | 13.2W | 756 lm | 57 lm/W | 15° / 20° / 30° / 50° | >80 · >90 opt |
| NLC-LV 18.2W | 18.2W | 1,389 lm | 76 lm/W | 9° / 13° / 25° / 30° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance | Two body sizes: 13.2W (D210 × H152/220 mm) · 18.2W (D250 × H161/220 mm).
