Light That Grounds Your Design.

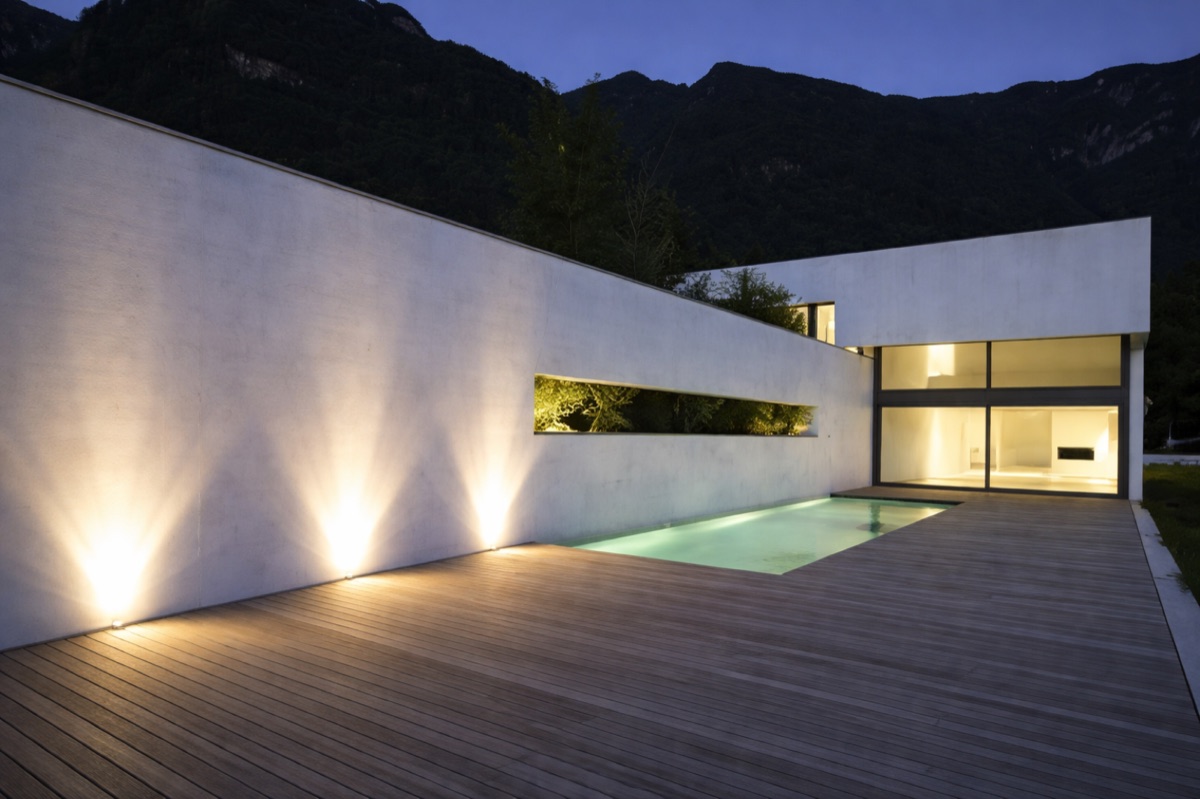

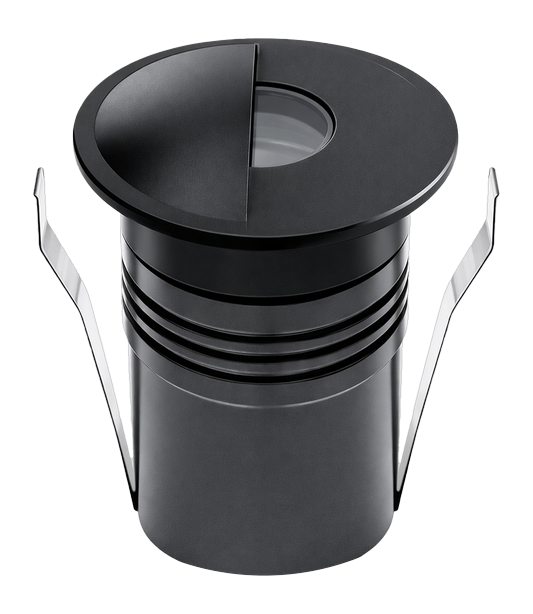

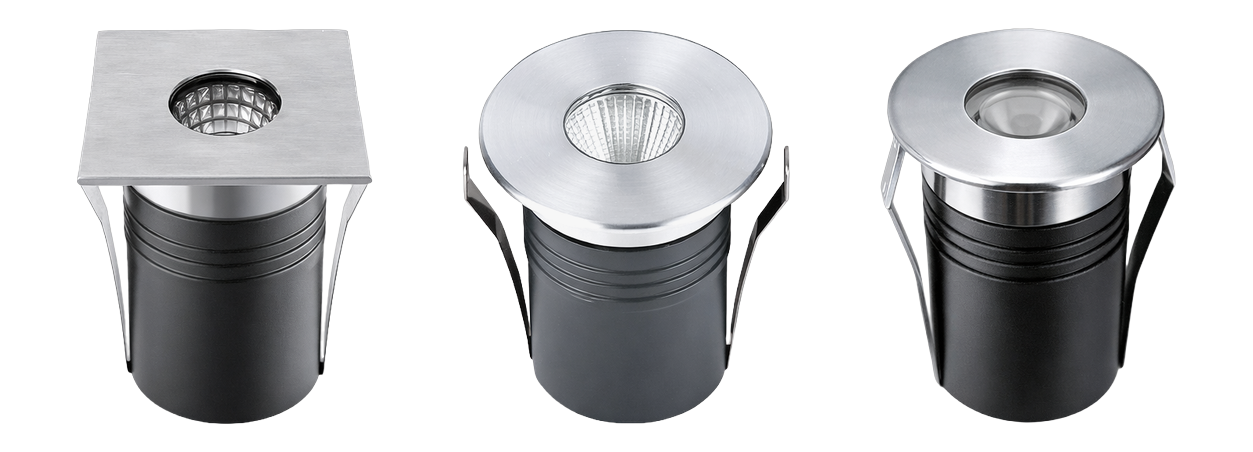

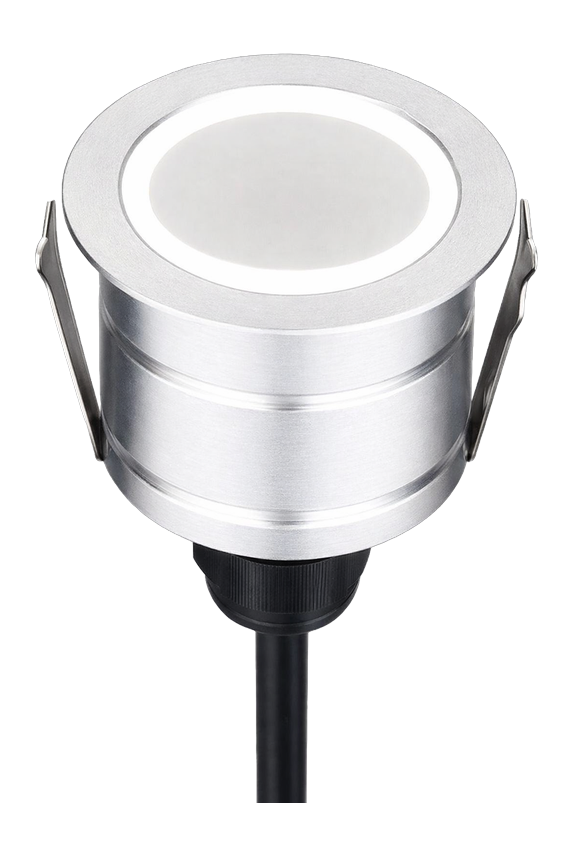

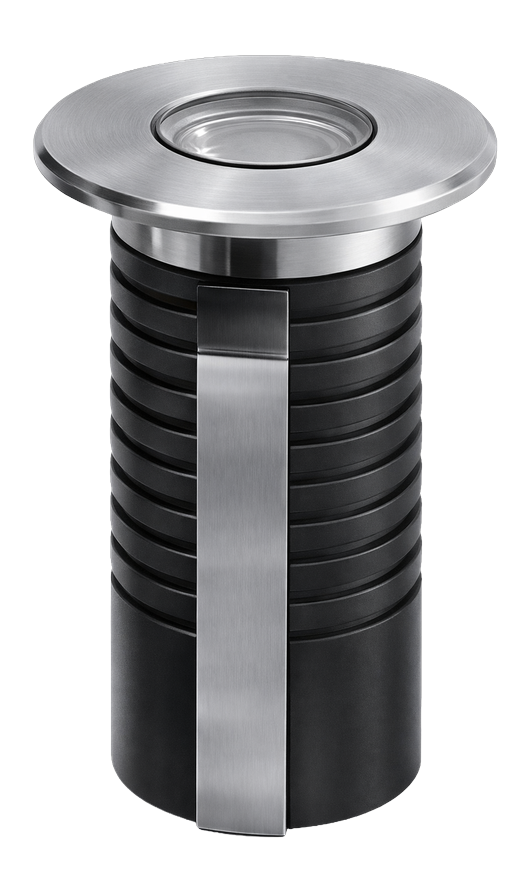

JISSY is an in-ground LED up-light that sits flush in outdoor surfaces and gives clean, focused light. The 304 stainless-steel and die-cast aluminum body, with ultra-white tempered glass, is rated to walk on and works well for architectural accents, pathways, and landscape highlighting.

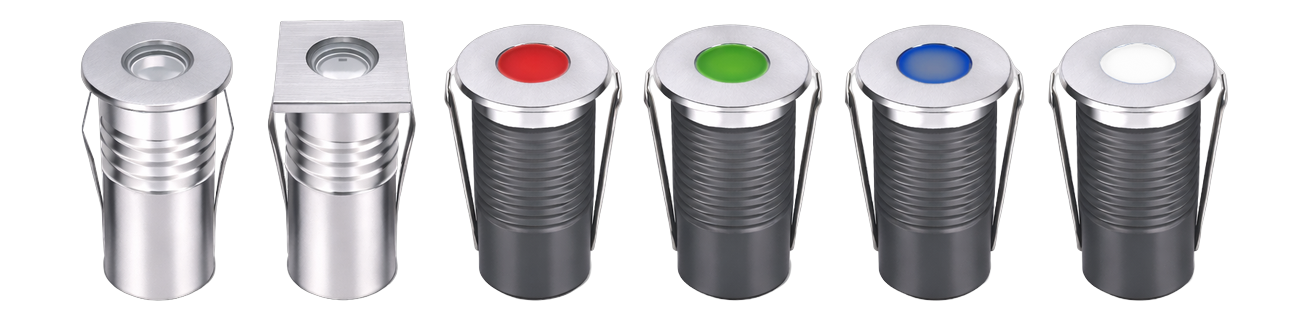

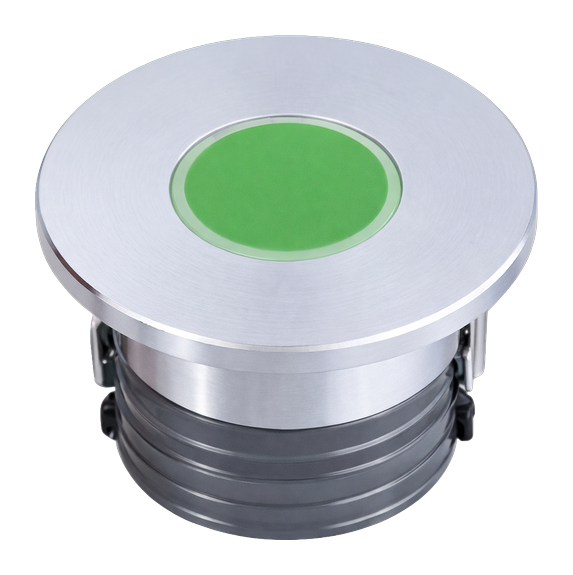

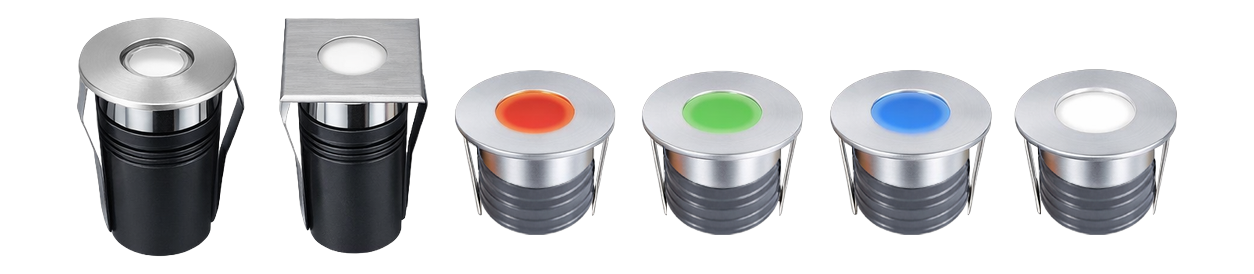

Offered in a full spectrum of configurations: single-colour SMD3535 / COB, RGB 3-in-1, and RGBW 4-in-1 with built-in or external DMX512. Power ranges from 1W to 6W per LED, with CCT from 1700K to 6500K plus R/G/B/O/Y/I/V monochromatic colours. Multiple control protocols, Triac, 1-10V, DALI, DMX, PWM, RGBW decoder, for full integration.
| Input Voltage | DC 12V / 24V / 48V · AC 100–220V 50/60Hz |
| Power Factor | >0.5 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC Class III · AC Class I |
| Dimming | Triac · 1-10V · DALI · RGBW Decoder · DMX512 (built-in / external) · PWM |
| Switching Cycles | >15,000 |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP67 (In-Ground) |
| Impact Resistance | IK07 |
| Cable Gland | IP67 copper & nickel coated (optional stainless steel) |
| Construction | 304 Stainless Steel + Aluminum · Die-cast Aluminum |
| Housing | 304 Stainless Steel + Die-cast Aluminum |
| Mounting | In-Ground (Walk-On) |
| Light Window | Ultra-White Transparent Tempered Glass |
| Cable Gland | IP67 Copper & Nickel Coated |
| LED Sources | SMD3535 · COB |
| Control Protocols | Triac · 1-10V · DALI · DMX512 · PWM · RGBW external decoder |
| LED Types | SMD3535 · COB |
| Lifetime | L70B50 > 30,000h |
| CRI | Standard >80 · Optional >90 |
| Colour Options | Single CCT (1700–6500K) · R/G/B/O/Y/I/V · RGB 3-in-1 · RGBW 4-in-1 |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-JI 1W (SMD3535) | 1×1–1.5W | - | 65 lm/W | 15° / 25° / 45° / 60° / 120° | >80 · >90 opt |
| NLC-JI 3W (RGB) | 3×1W RGB | - | 65 lm/W | 15° / 25° / 45° / 60° / 120° | Colour |
| NLC-JI 3W+W (RGBW) | 3×1W RGB + W | - | 65 lm/W | 15° / 25° / 45° / 60° / 120° | W: 2700–5000K |
| NLC-JI 6W | 1×1–6W | - | 65 lm/W | 10° / 15° / 25° / 45° / 60° / 120° | >80 · >90 opt |
| NLC-JI 1W (COB) | 1W COB | - | 15 lm/W | 120° | >80 · >90 opt |
| NLC-JI Large | 1×1–6W | - | 40 lm/W | 45° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance | Multiple body sizes (D38–D90mm) available to match mounting requirements.
