Angles of Light. Moments of Style.

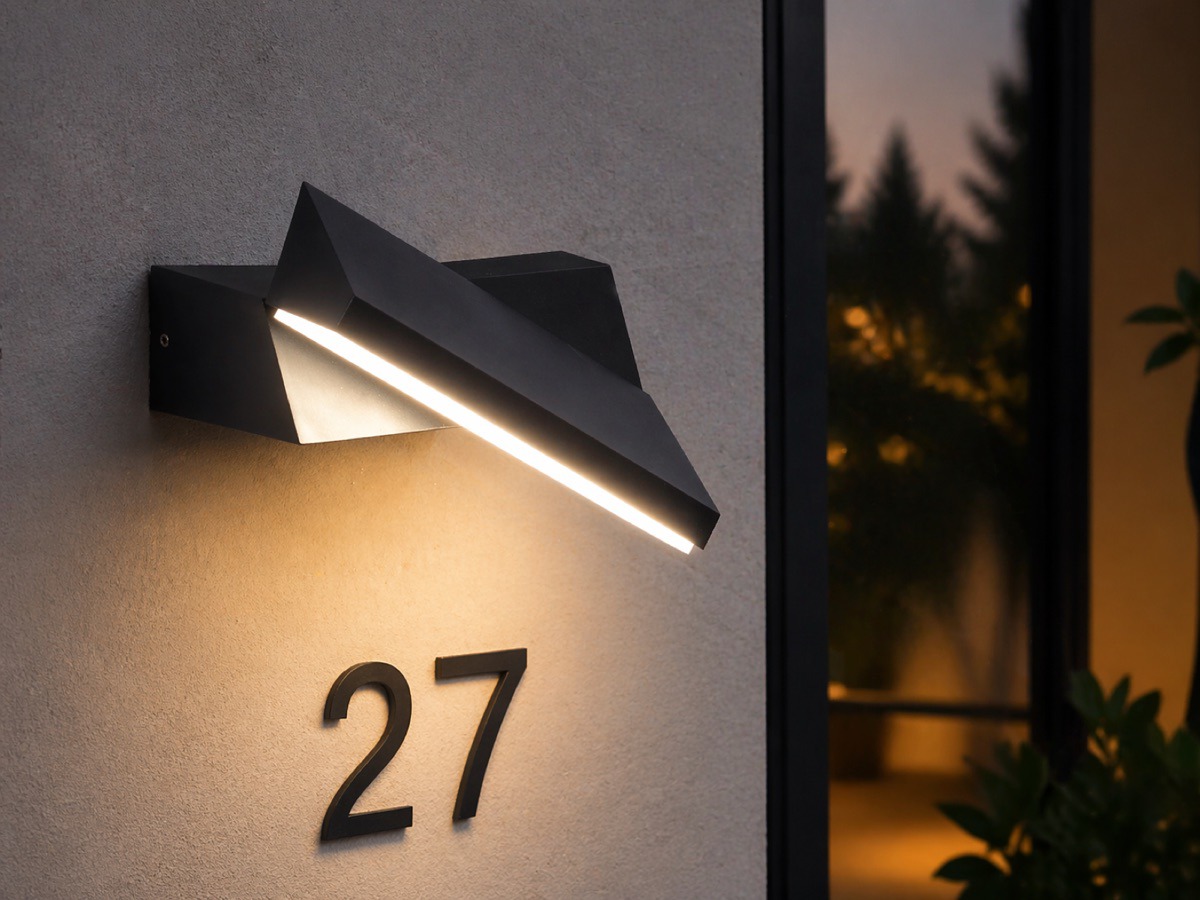

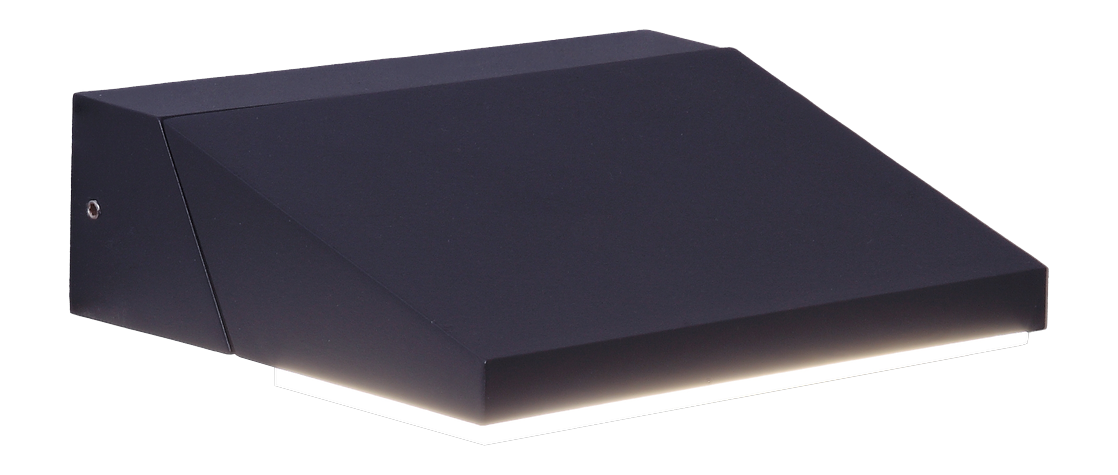

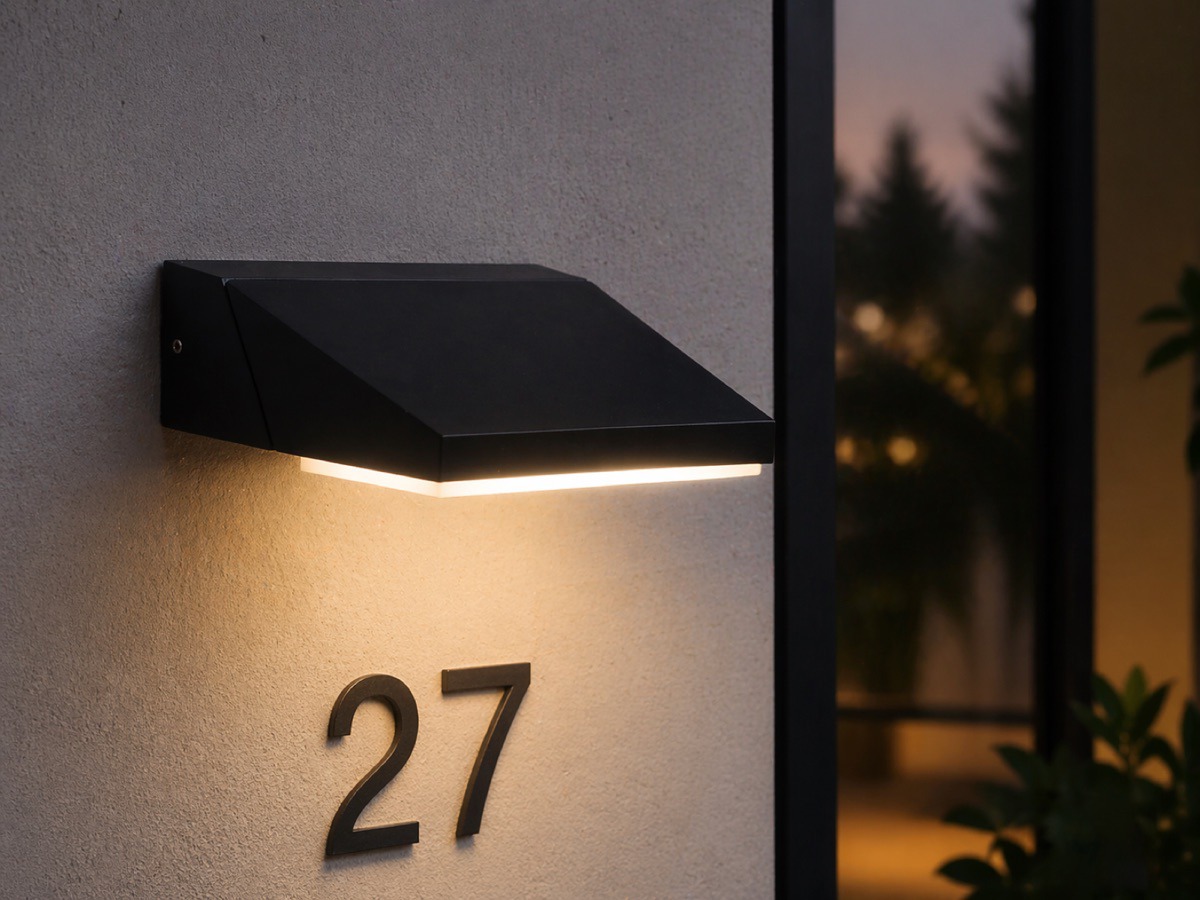

BLADE is a modern outdoor porch/wall light with a clean linear exterior. Its flat, angular head pivots to provide both direct and indirect lighting, ideal for accenting walls or floor surfaces.
Built with die-cast aluminum housing and clear polycarbonate optics, rated IP65 / IK06 for reliable outdoor performance.
| Input Voltage | 220–240V · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions | L172 × W141 × H52 mm / L172 × W85 × H118 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Clear Polycarbonate |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| Adjustability | Pivoting head (direct / indirect) |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-BD | 13W | 980 lm | 120° | ≥80 | SMD · pivoting head |
* Values based on CCT 3000K | ±10% tolerance
