Strong Lines, Smarter Illumination.

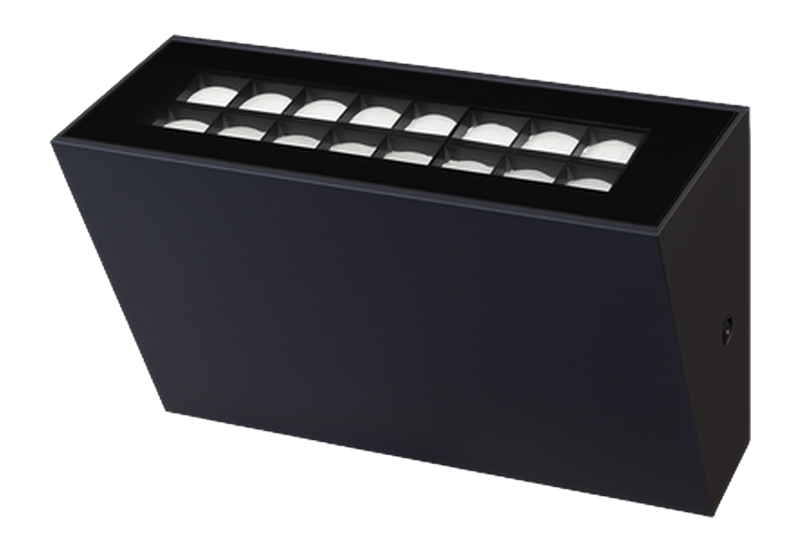

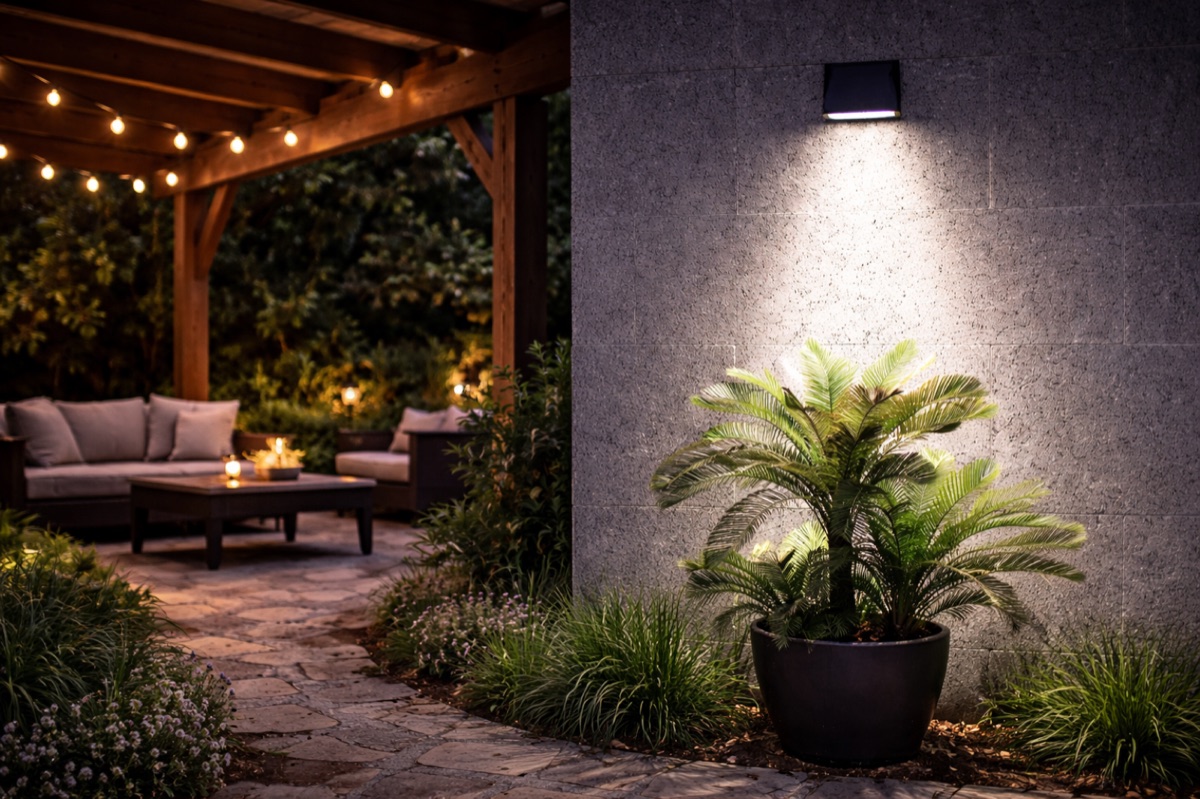

MANTRA L is a minimal wall-mounted luminaire that gives smooth, balanced façade light. The linear form reads contemporary, and the build is rated for long outdoor service life.
Available in 8W (550 lm) and 20W (1,383 lm @ 69 lm/W) variants with a focused 40° beam. Die-cast aluminum housing with tempered glass optic, full dimming protocol support, and a 5-year warranty.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Tempered Glass |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · White · Dark Gray |
| Dimensions (8W) | W160 × L74 × H111 mm |
| Dimensions (20W) | W200 × L92 × H150 mm |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MAL 8W | 8W | 550 lm | 68.75 lm/W | 40° | >80 · >90 opt |
| NLC-MAL 20W | 20W | 1,383 lm | 69 lm/W | 40° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance
