Precision Light, Pure Design.

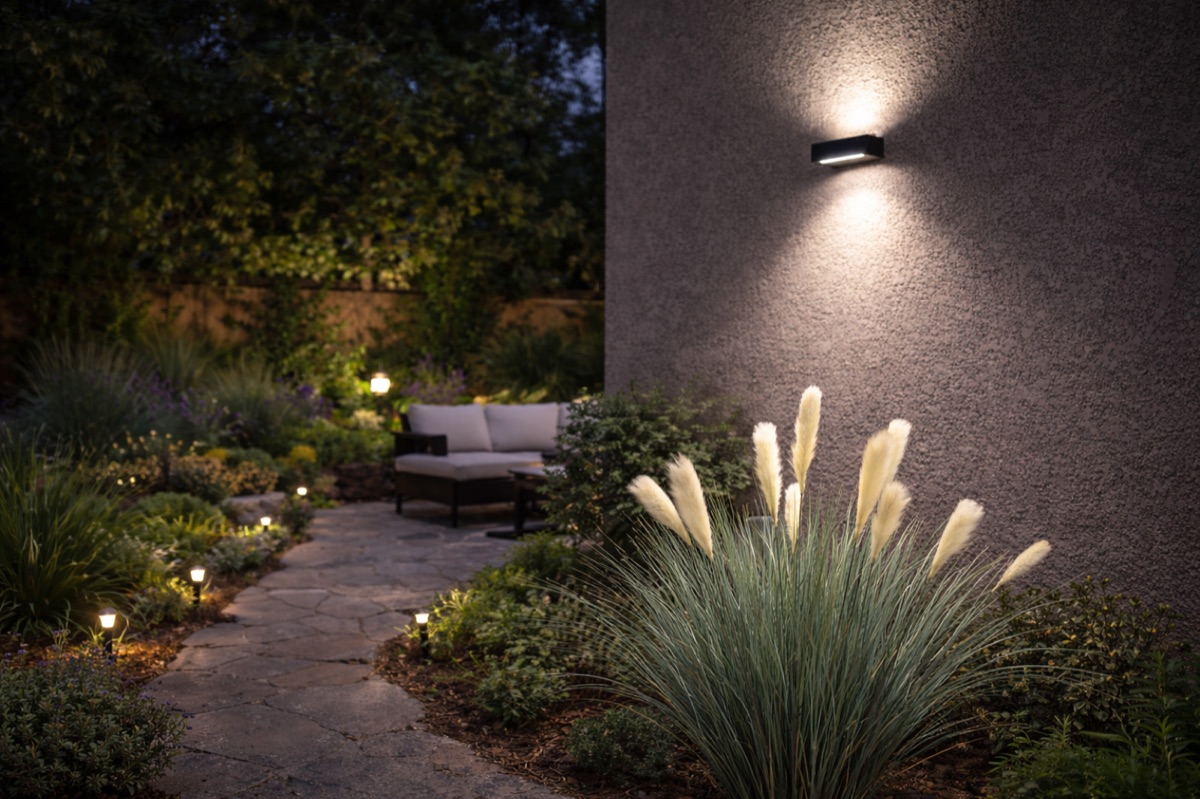

MANTRA is a wall-mounted dual-head linear luminaire featuring a clean, geometric design with precise optical control. Its recessed LED modules deliver focused, comfortable illumination, while the solid die-cast aluminum housing ensures durability and a modern architectural look.
Available in three power tiers: 15W (2 × 600 lm), 20W (2 × 800 lm), and 30W (2 × 1,250 lm @ 83 lm/W). All variants share a 40° beam, full dimming protocol support, and a 5-year warranty. Choose from three lengths: 160, 200, and 300 mm.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.92 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Tempered Glass |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · White · Dark Gray |
| Dimensions (15W) | W160 × L49 × H57 mm |
| Dimensions (20W) | W200 × L49 × H57 mm |
| Dimensions (30W) | W300 × L50 × H57 mm |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MAN 15W | 15W | 2 × 600 lm | 80 lm/W | 40° | >80 · >90 opt |
| NLC-MAN 20W | 20W | 2 × 800 lm | 80 lm/W | 40° | >80 · >90 opt |
| NLC-MAN 30W | 30W | 2 × 1,250 lm | 83 lm/W | 40° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance | Dual-head design, total output is 2× per-LED lumens.
