Refined design, balanced light.

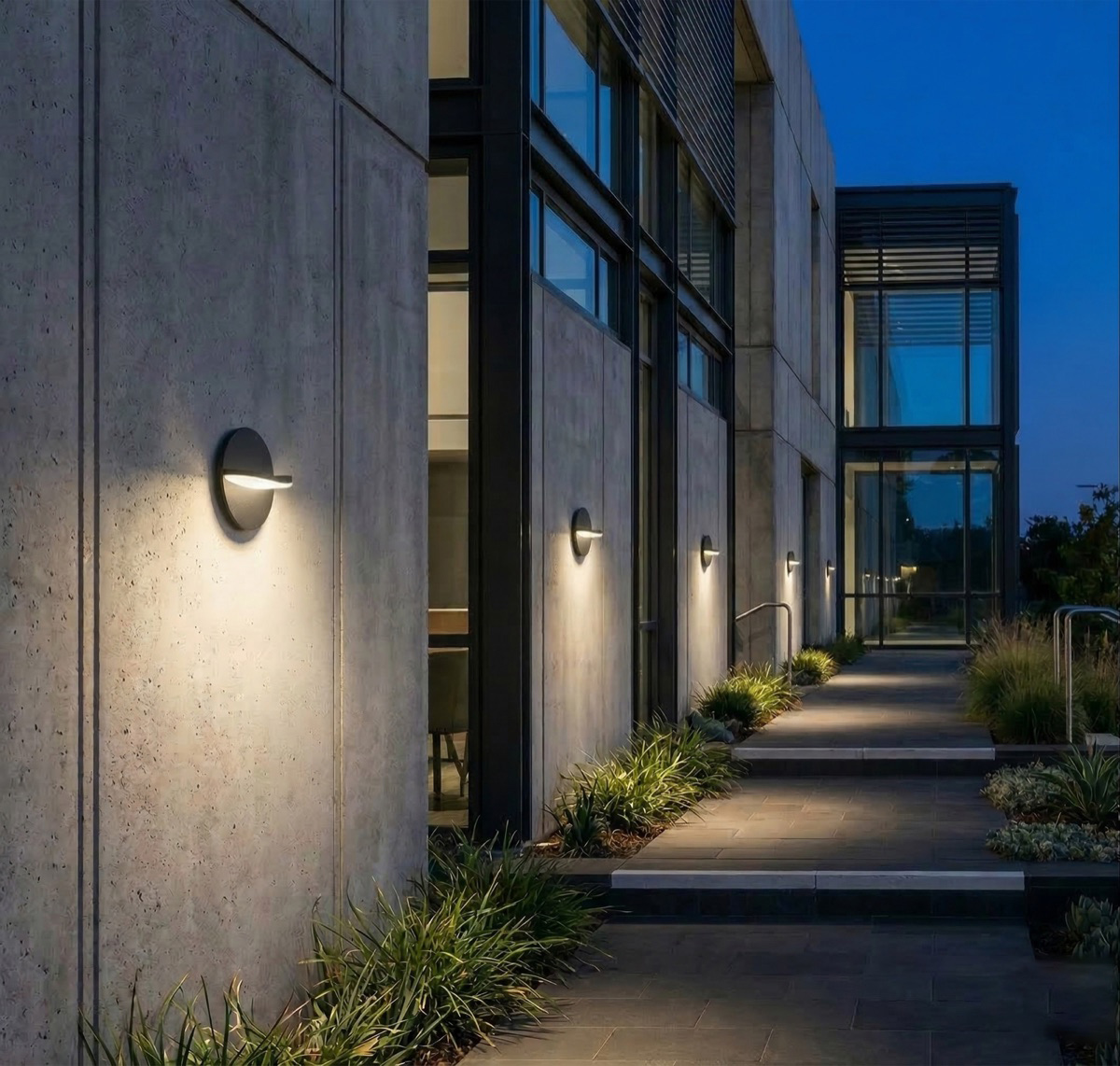

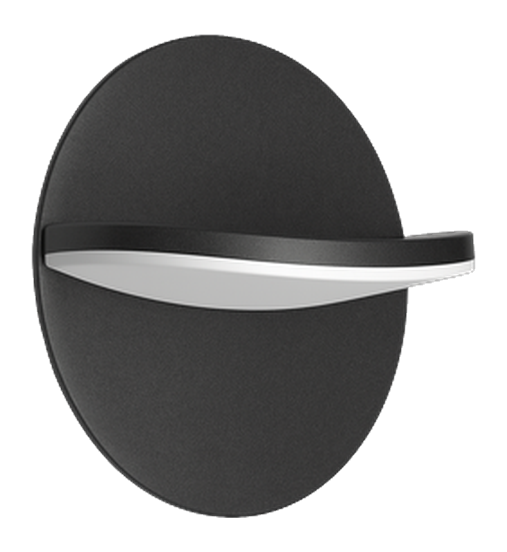

DOVE is a modern outdoor LED wall light with an attractive, refined silhouette that fits perfectly in contemporary architecture. Made of high-quality die-cast aluminum for excellent corrosion resistance, with an opal PC diffuser that emits soft, even illumination across the wall and surroundings.
Available in five powder-coated body colors to complement any facade.
| Input Voltage | 220–240V · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions | D183 × H130 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Opal Polycarbonate (PC) |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Flicker Free | Yes |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-BK | 15W | 900 lm | 120° | ≥80 | SMD · Soft diffuser |
* Values based on CCT 3000K | ±10% tolerance
