Effortless Style, Brilliant Light.

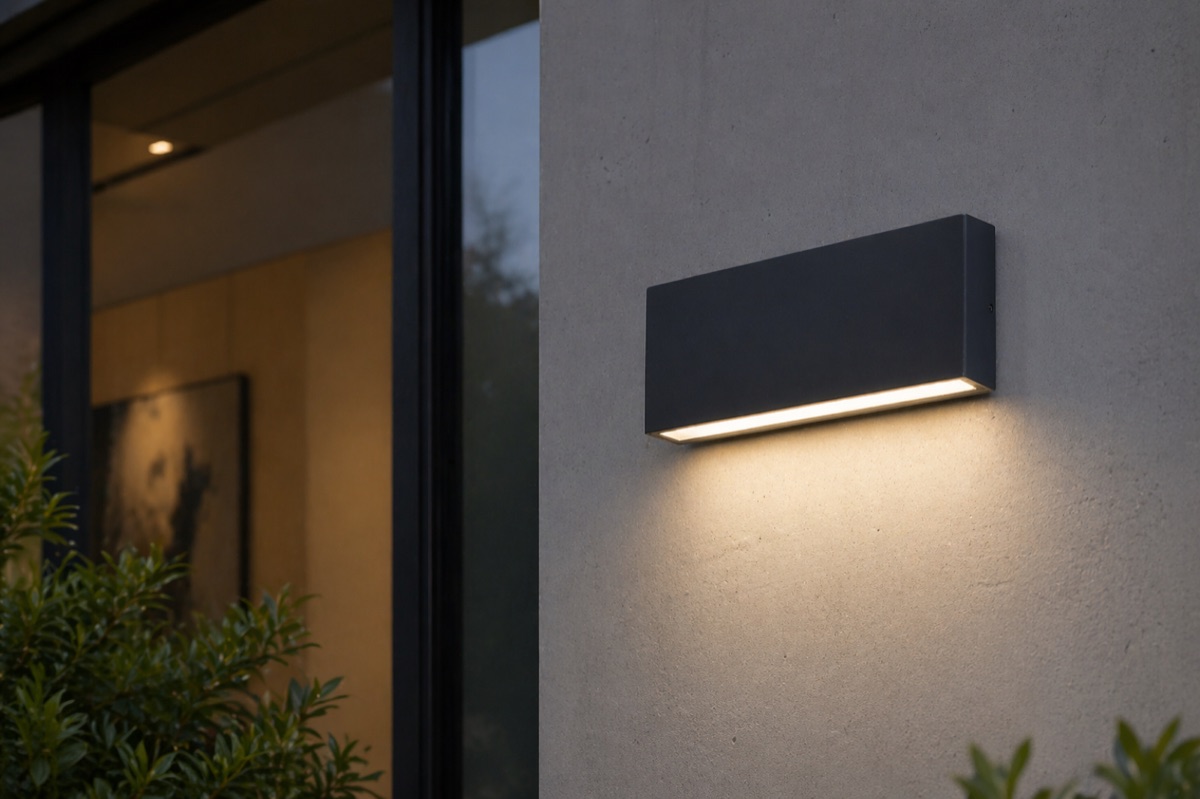

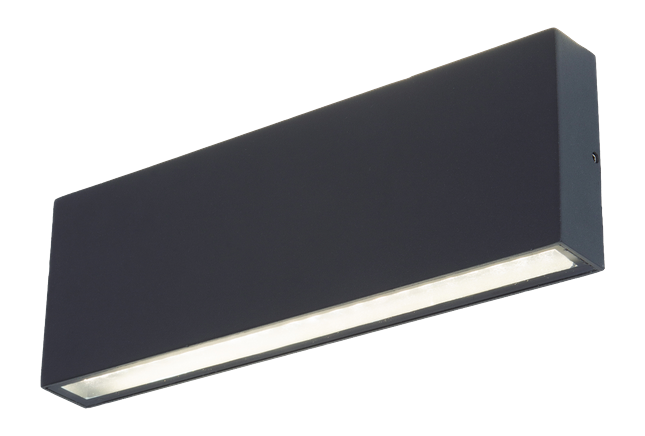

BRICK is a modern outdoor wall light made from high-quality die-cast aluminum with a durable, fade-resistant powder-coated finish. Its clean, contemporary linear design creates a stylish lighting effect that enhances both security and atmosphere in any outdoor space.
Available in five powder-coated body colors and four CCT options.
| Input Voltage | 220–240V · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP54 |
| Impact Resistance | IK06 |
| Dimensions | W260 × L37 × H91 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Glass |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-DV | 18W | 1,080 lm | 120° | ≥80 | SMD · linear form |
* Values based on CCT 3000K | ±10% tolerance
