Wall Mounted Luminaire
BOX
Bold Lighting in a Sleek Box.
IP65
IK07
Compact Cube Form
Colours
100–277VAC
Fireproof PC
5-Year Warranty
5.4W
Power
155 lm
Lumens
28.7 lm/W
Efficiency
120°
Beam Angle
>80 / >90
CRI
35,000h
Lifetime
Bold Lighting in a Sleek Box.

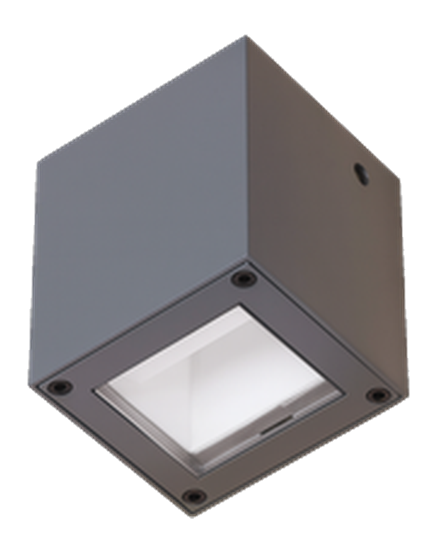

BOX is a compact, cube-shaped wall light that delivers clean and focused illumination. Its simple geometric form and durable construction make it a versatile choice for modern indoor or outdoor spaces.
A die-cast aluminum body with a fireproof PC optic, IP65/IK07 protection, and Nichia LEDs keep the fixture dependable in exposed environments. Dimming is optional, and the 5-year warranty reflects long-term reliability.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.8 |
| THD | <20 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Optional |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK07 |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Fireproof PC |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · Dark Gray |
| Dimensions | W1 100 · W2 90 · L 25 · H 82 mm |
| LED Type | SMD (Nichia) |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-BX | 5.4W | 155 lm | 28.7 lm/W | 120° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance
