Light that adapts to every angle.

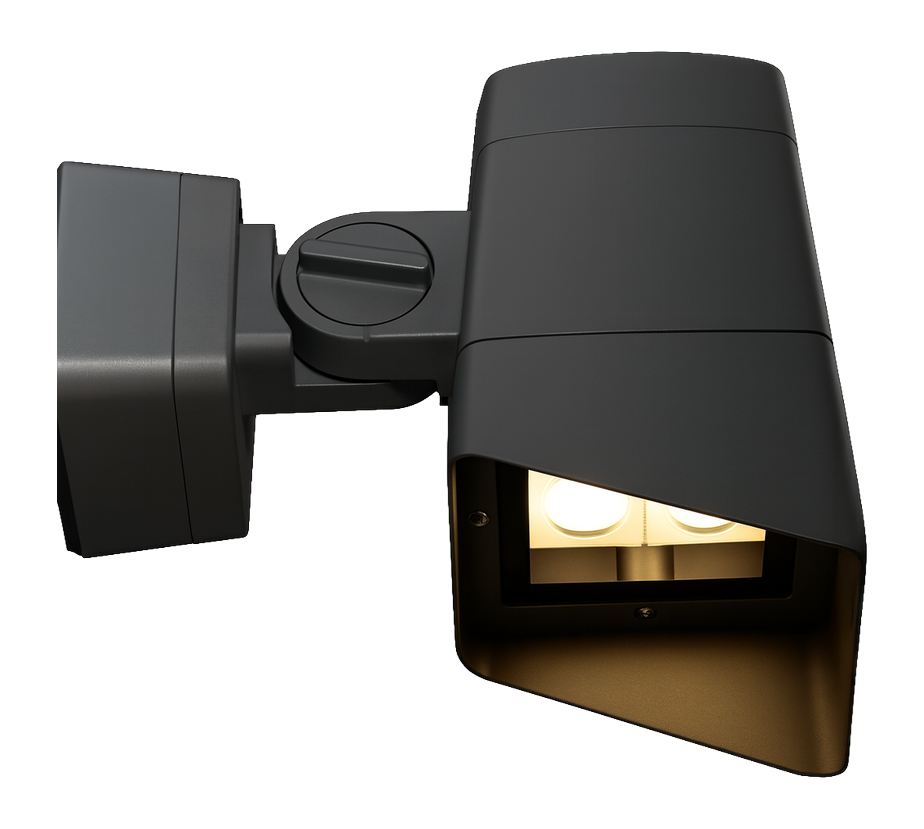

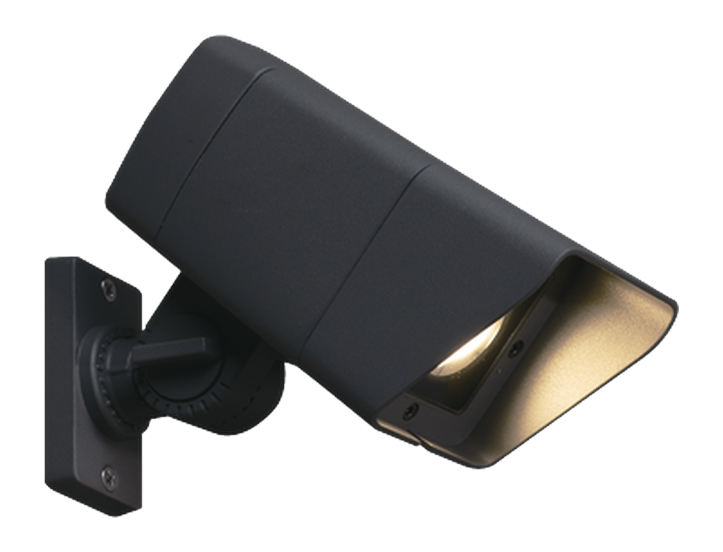

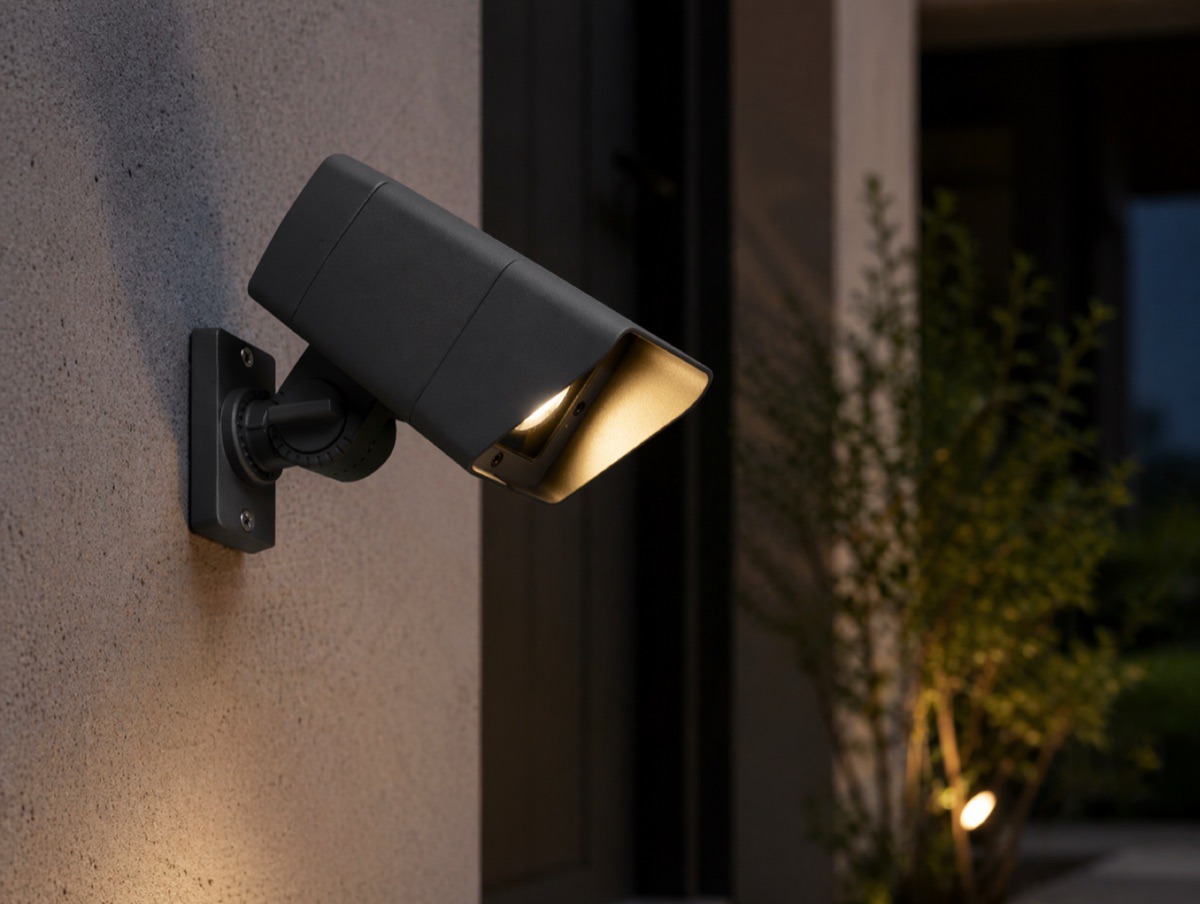

CLIMAX is a sleek, adjustable outdoor spotlight designed for controlled and focused illumination. Its durable die-cast aluminum housing and angled head provide precise direction, making it ideal for highlighting pathways, façades, and architectural elements.

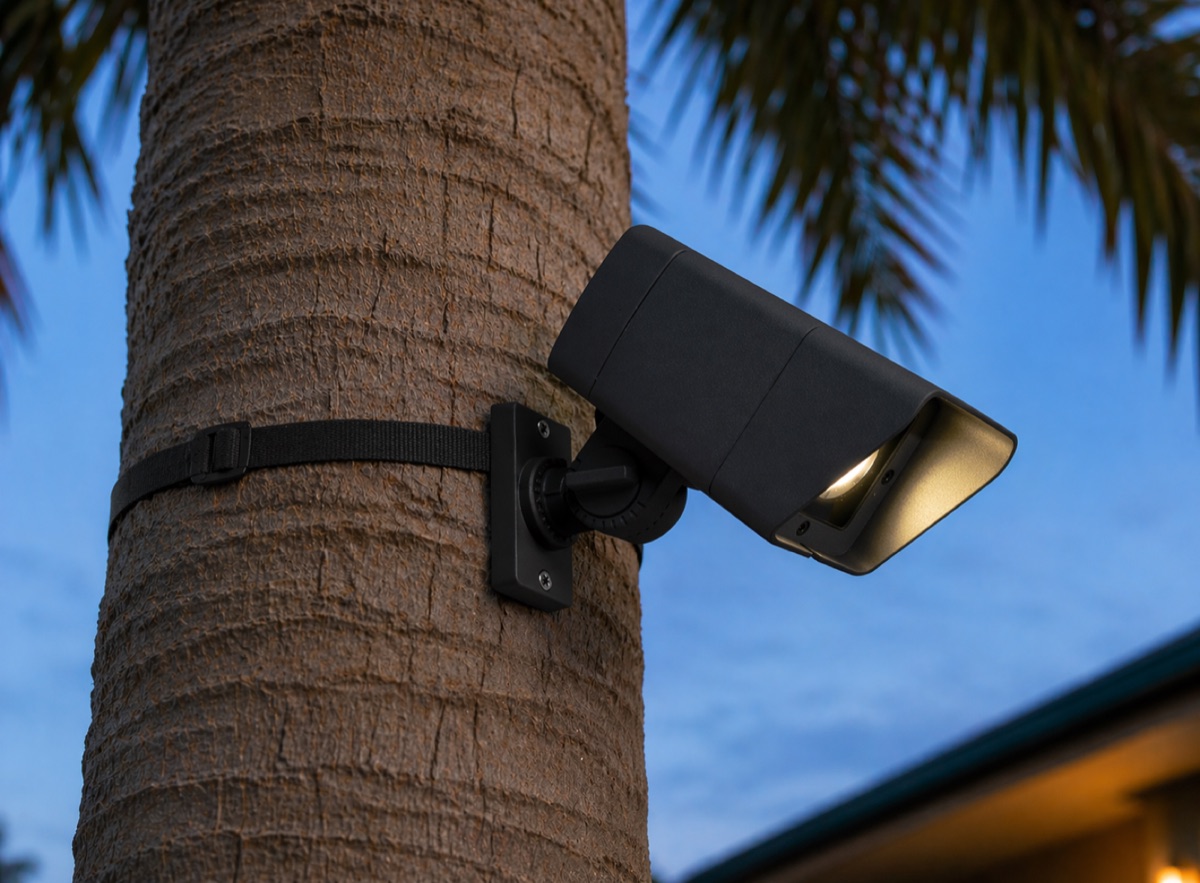

Available in 10W (792 lm) and 16W (1,424 lm @ 89 lm/W) variants with four beam-angle options (15° / 24° / 36° / 50°), COB LED source, and full dimming protocol support. Wall-mount or tree-pole strap accessory for landscape applications.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.92 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted (Tree-Pole Strap optional) |
| Optics | Tempered Glass |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · White · Dark Gray |
| Dimensions (10W) | L135 × W81.5 × H152 mm |
| Dimensions (16W) | L170 × W79.5 × H192 mm |
| LED Type | COB |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-CM 10W | 10W | 792 lm | 79 lm/W | 15° / 24° / 36° / 50° | >80 |
| NLC-CM 16W | 16W | 1,424 lm | 89 lm/W | 15° / 24° / 36° / 50° | >80 |
* Values based on CCT 3000K | ±10% tolerance
