Focus on brilliance.

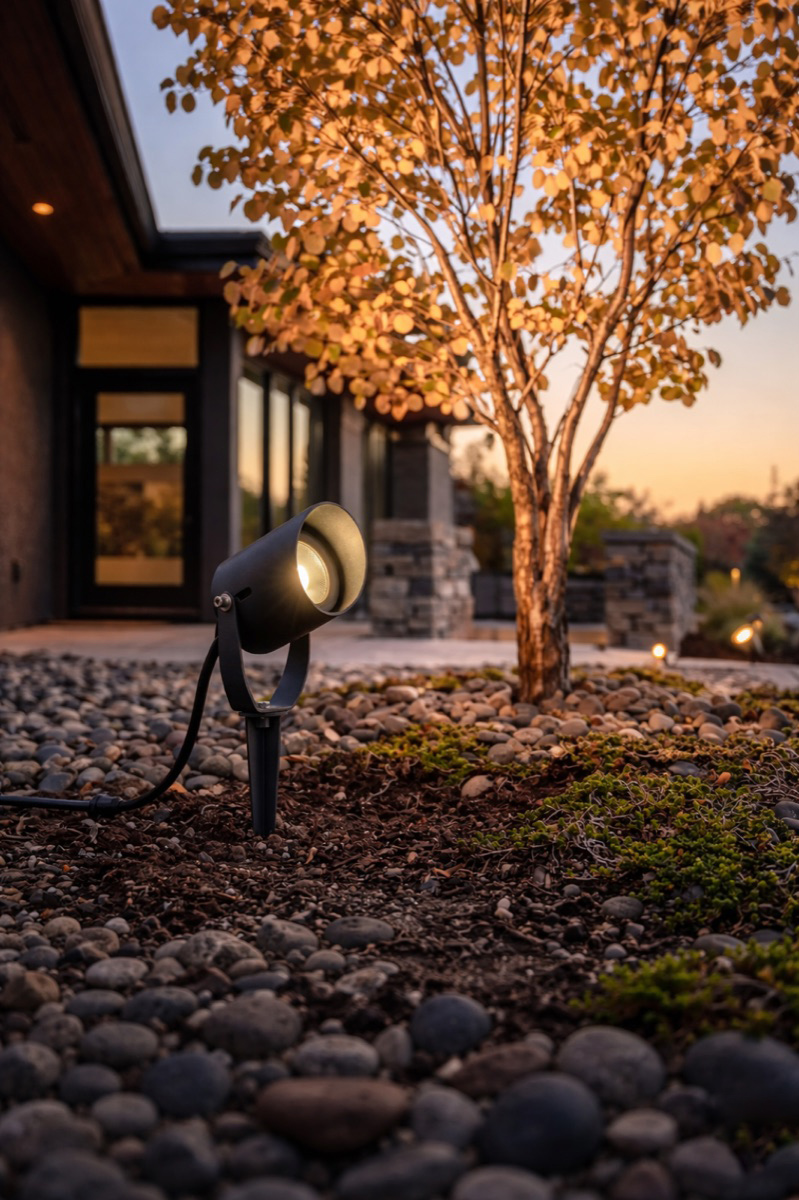

SCOUT is a high-purity aluminum LED spotlight, electroplated, sandblasted and chemically cleaned prior to powder coating to ensure corrosion resistance and optimum durability. Built with die-cast aluminum housing and glass optics, it delivers focused 38° accent lighting for landscape and architectural applications.
Available in five powder-coated body colors with COB LED engine.
| Input Voltage | 24V DC · 50/60Hz |
| Power Factor | >0.80 |
| Electrical Class | Class III |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions | L105 × D75 mm |
| Housing | Die-Cast Aluminum (high-purity, electroplated, sandblasted) |
| Mounting | Surface (spike option) |
| Optics | Glass |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| LED Type | COB |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-SC | 10W | 650 lm | 38° | ≥80 | COB · marine-grade |
* Values based on CCT 3000K | ±10% tolerance
