Designed to Aim. Built to Perform.

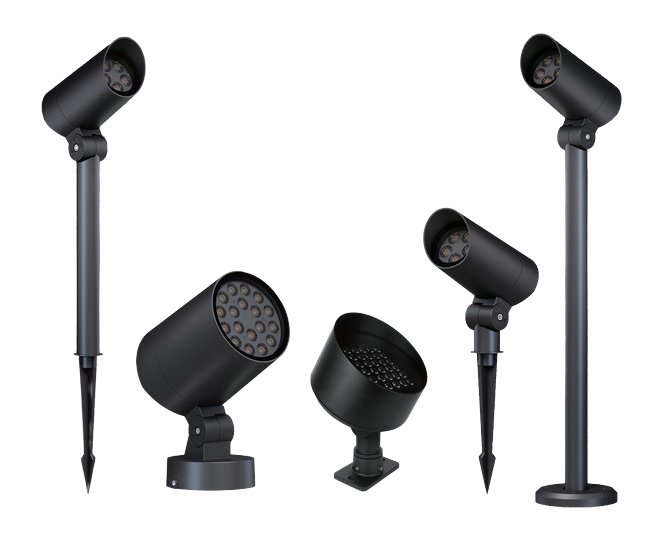

VALLEY is a high-power, adjustable LED projector and spike light with an aesthetic design suitable for a wide range of landscape and architectural applications. Its die-cast aluminum housing combined with COB or SMD3535 LED engines and ultra-white tempered glass delivers consistent, focused output for accent and feature lighting.
Available in single-color (1700K–6500K), RGB, and RGBW configurations from 9W to 72W. Multiple beam-angle options (10° / 15° / 25° / 45° / 60° / 120°) and full DMX/DALI/Triac/0-10V dimming support, plus optional honeycomb louvres, lenses, and anti-glare snoots.
| Input Voltage | DC 12V/24V/48V · AC 100–240V · 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | Triac · 1-10V · DALI · DMX512 (built-in/external) · PWM |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 (9–27W models) · IK08 (36W+ models) |
| Housing | Die-Cast Aluminum |
| Mounting | Spike · Ground · Surface (multiple options) |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP66 Copper Nickel-Coated |
| Accessories | Honeycomb Louvre · Lens · Anti-glare Grille / Snoot |
| LED Type | COB · SMD3535 |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-VA09W | 9W | 675 lm | 10°–120° | ≥80 | 3-LED |
| NLC-VA10W | 10W (COB) | 750 lm | 15°–120° | ≥80 | Single COB |
| NLC-VA15W | 15W | 1,125 lm | 10°–120° | ≥80 | 5-LED |
| NLC-VA18W | 18W (COB) | 1,350 lm | 15°–120° | ≥80 | Single COB |
| NLC-VA24W | 12 × 1–2W | 960 lm | 10°–120° | ≥80 | 12-LED · IK08 · DC 24V |
| NLC-VA27W | 27W | 2,025 lm | 10°–120° | ≥80 | 9-LED |
| NLC-VA30W | 30W (COB) | 2,250 lm | 15°–120° | ≥80 | Single COB |
| NLC-VA32W | 16 × 1–2W | 1,280 lm | 10°–120° | ≥80 | 16-LED |
| NLC-VA36W | 36W | 2,700 lm | 10°–120° | ≥80 | 12-LED · IK08 |
| NLC-VA40W | 40W (COB) | 3,000 lm | 15°–120° | ≥80 | Single COB |
| NLC-VA50W | 50W | 2,000 lm | 10°–120° | ≥80 | 25-LED |
| NLC-VA72W | 72W | 2,880 lm | 10°–120° | ≥80 | 36-LED |
* Values based on CCT 3000K | ±10% tolerance
