Shaping Spaces with Focused Light.

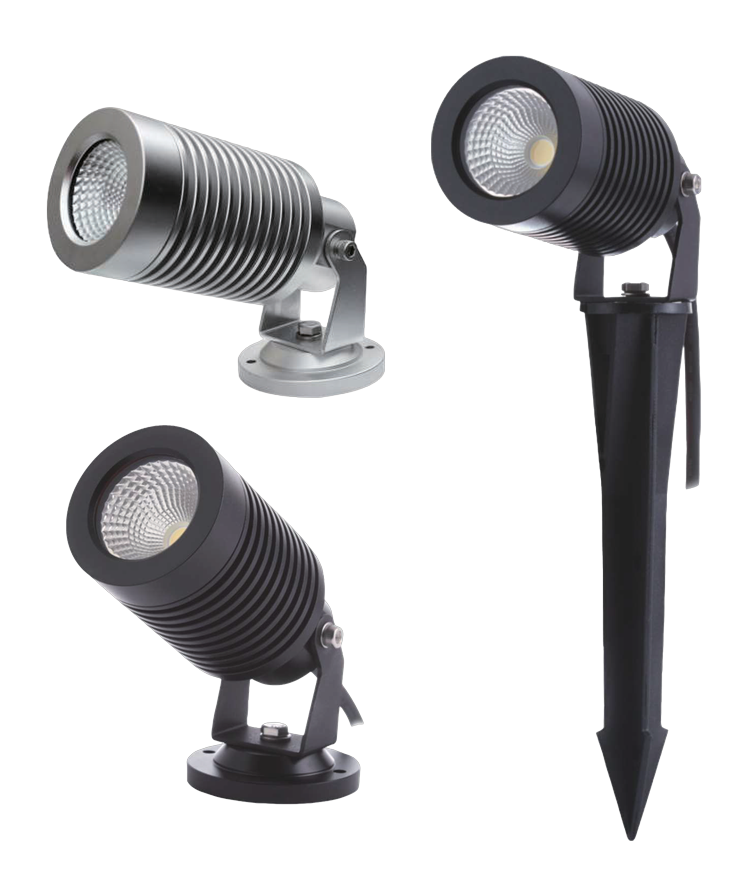

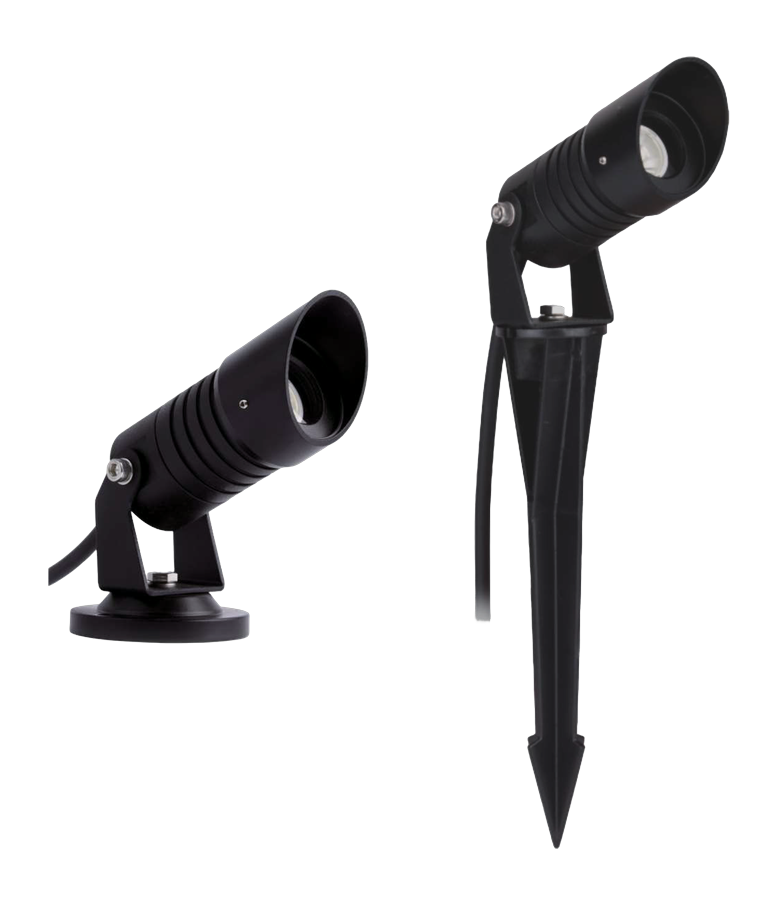

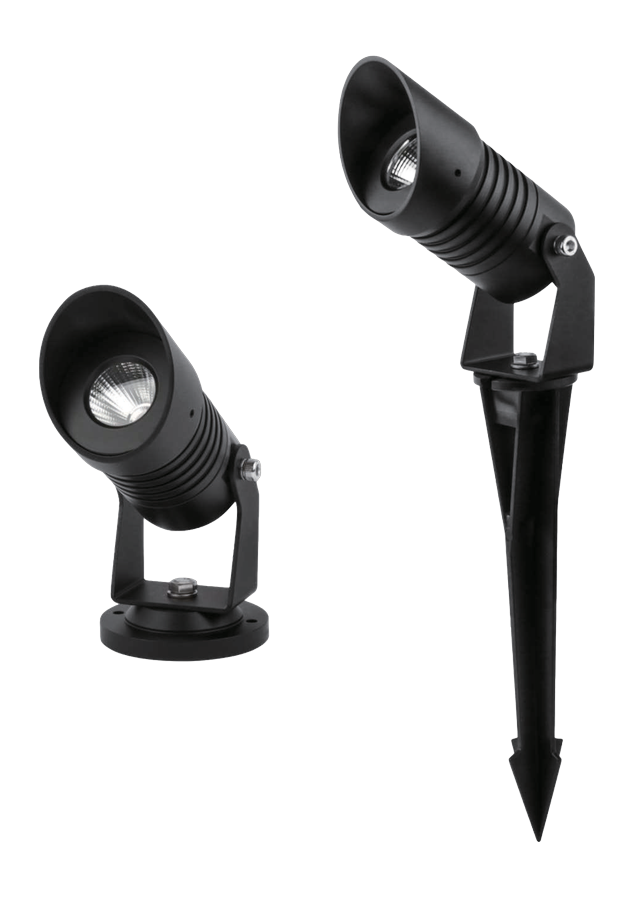

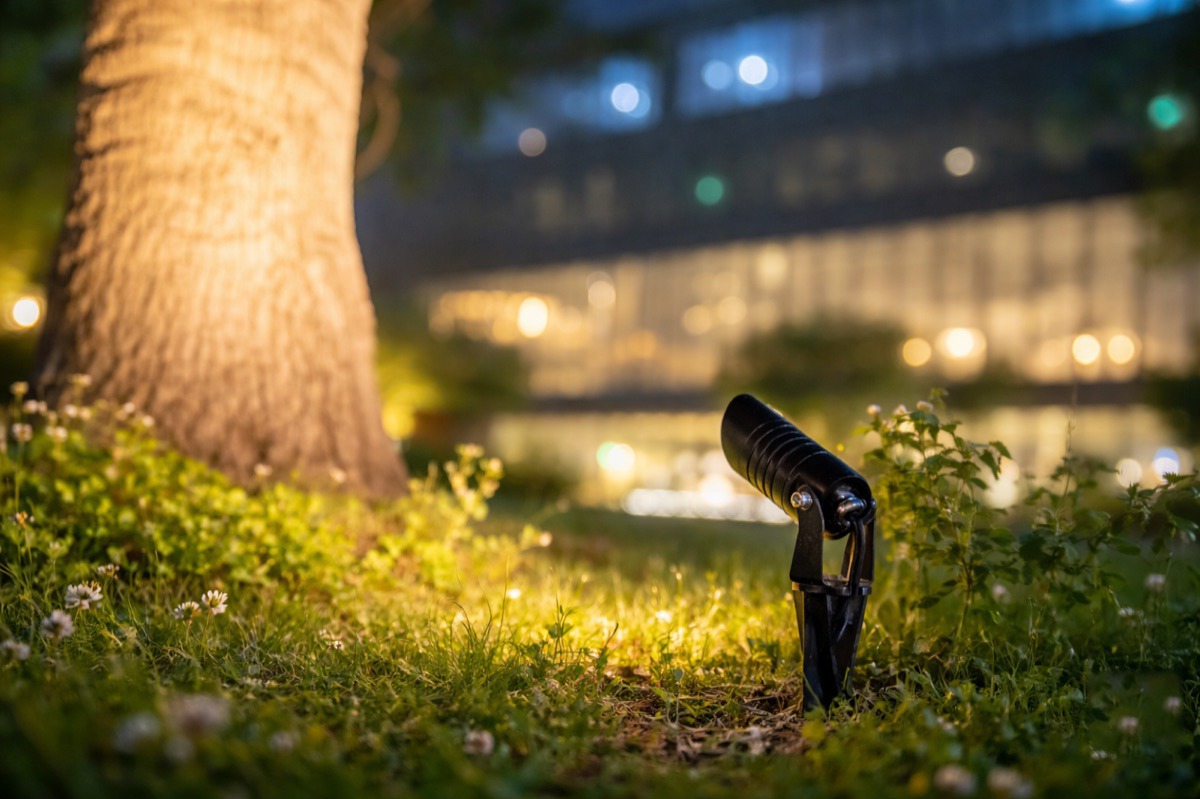

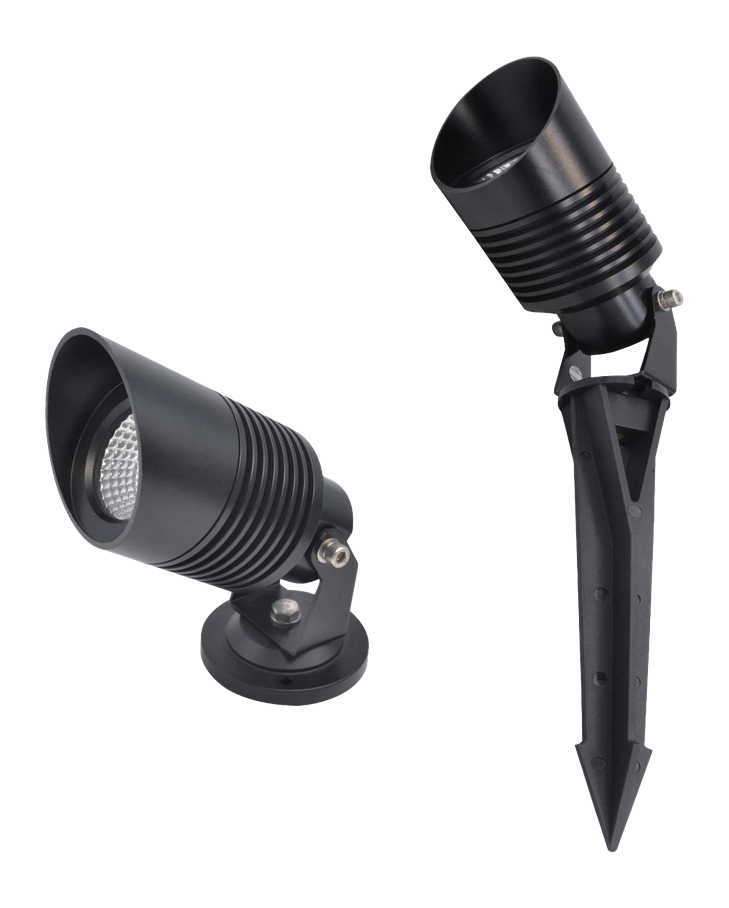

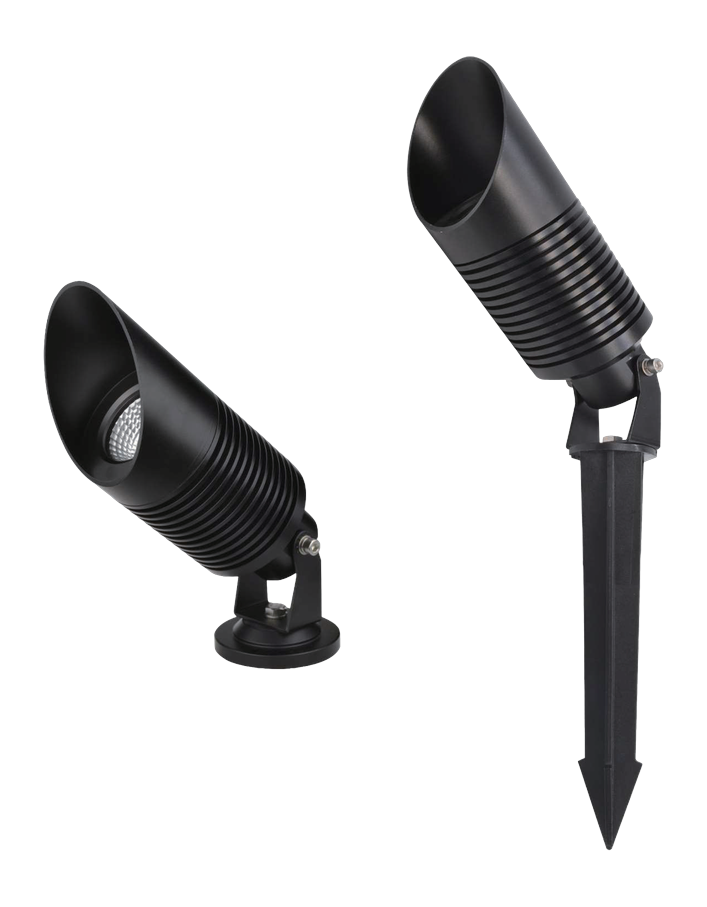

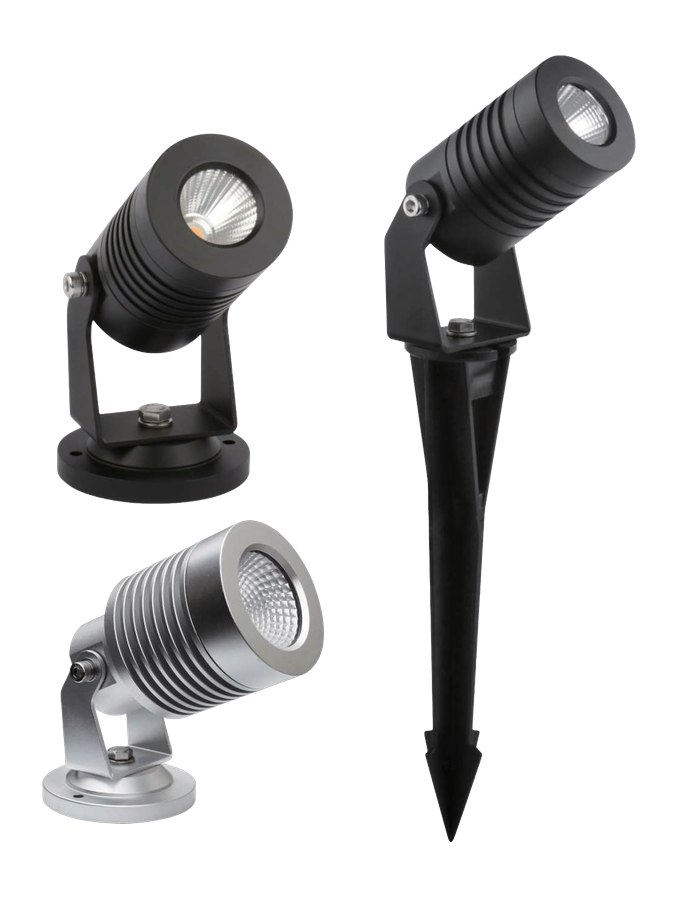

GRASS is a refined LED projection luminaire combining powerful performance with precise adjustability. Designed for flexible installation (spike, surface, ground), it delivers focused accent lighting for outdoor environments, enhancing architectural and landscape details.
Available in single-color (1700K–6500K), RGB and RGBW configurations from 1W to 18W with multiple beam-angle options. COB or SMD light source with full DMX/DALI/Triac/0-10V dimming support.
| Input Voltage | DC 5V/12V/24V · AC 100–240V · 50/60Hz |
| Power Factor | >0.5 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | On/Off · DMX · 0-10V · DALI · PWM · Triac (built-in/external) |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Housing | Aluminum |
| Mounting | Spike · Surface (multiple options) |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP66 Copper Nickel-Coated |
| LED Type | COB · SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-GS 1–3W | 1–3W | 225 lm | 10°–120° | ≥80 | Single LED · RGB/RGBW |
| NLC-GS 1–5W | 1–5W | 375 lm | 15°–120° | ≥80 | Single LED |
| NLC-GS 1–9W | 1–9W | 675 lm | 10°–120° | ≥80 | Single LED · RGB/RGBW |
| NLC-GS 1–12W | 1–12W | 900 lm | 10°–120° | ≥80 | Single LED · RGB/RGBW |
| NLC-GS 1–15W | 1–15W | 1,125 lm | 15°–120° | ≥80 | Single LED |
| NLC-GS 1–18W | 1–18W | 1,350 lm | 10°–120° | ≥80 | Single LED · RGB/RGBW |
* Values based on CCT 3000K | ±10% tolerance
