Clean lines. Smooth illumination.

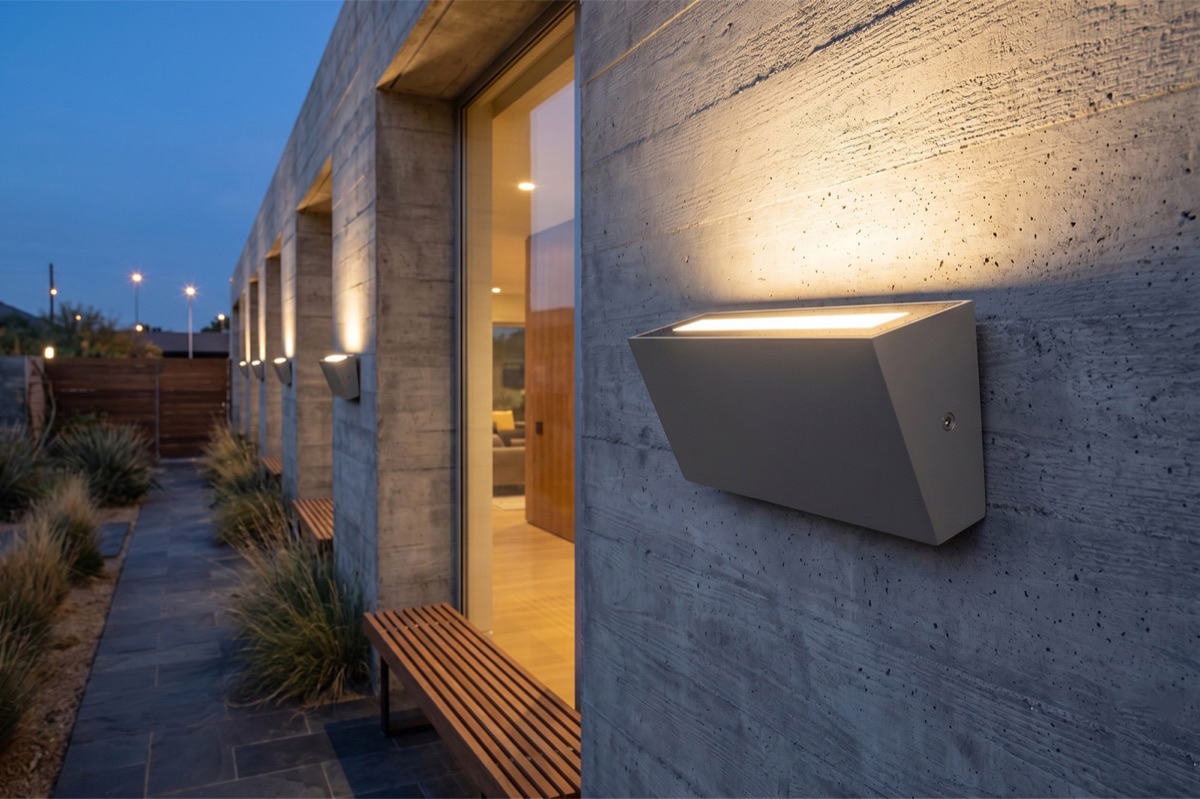

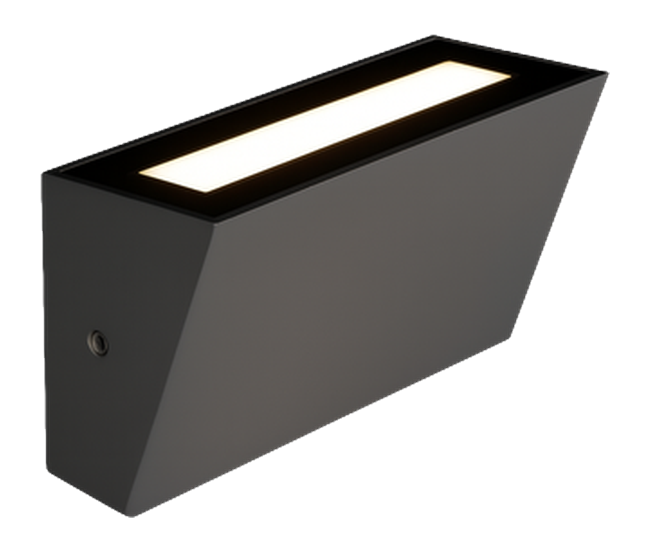

DRAWER is a modern wall-mounted luminaire with a clean, geometric profile that delivers smooth, even illumination. Its refined die-cast aluminum design with tempered frosted glass makes it a perfect choice for contemporary indoor and outdoor spaces.
Available in 8W (442 lm @ 55 lm/W) and 20W (1,025 lm @ 51 lm/W) variants with asymmetric beam profiles (65°×82° or 82°×87°) for broad façade coverage. Full dimming protocol support and a 5-year warranty.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.96 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK03 |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Tempered Frosted Glass |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · White · Dark Gray |
| Dimensions (8W) | W160 × L74 × H111 mm |
| Dimensions (20W) | W200 × L92 × H150 mm |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-DR 8W | 8W | 442 lm | 55 lm/W | 65° × 82° | >80 · >90 opt |
| NLC-DR 20W | 20W | 1,025 lm | 51 lm/W | 82° × 87° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance
