Clean Lines. Pure Light.

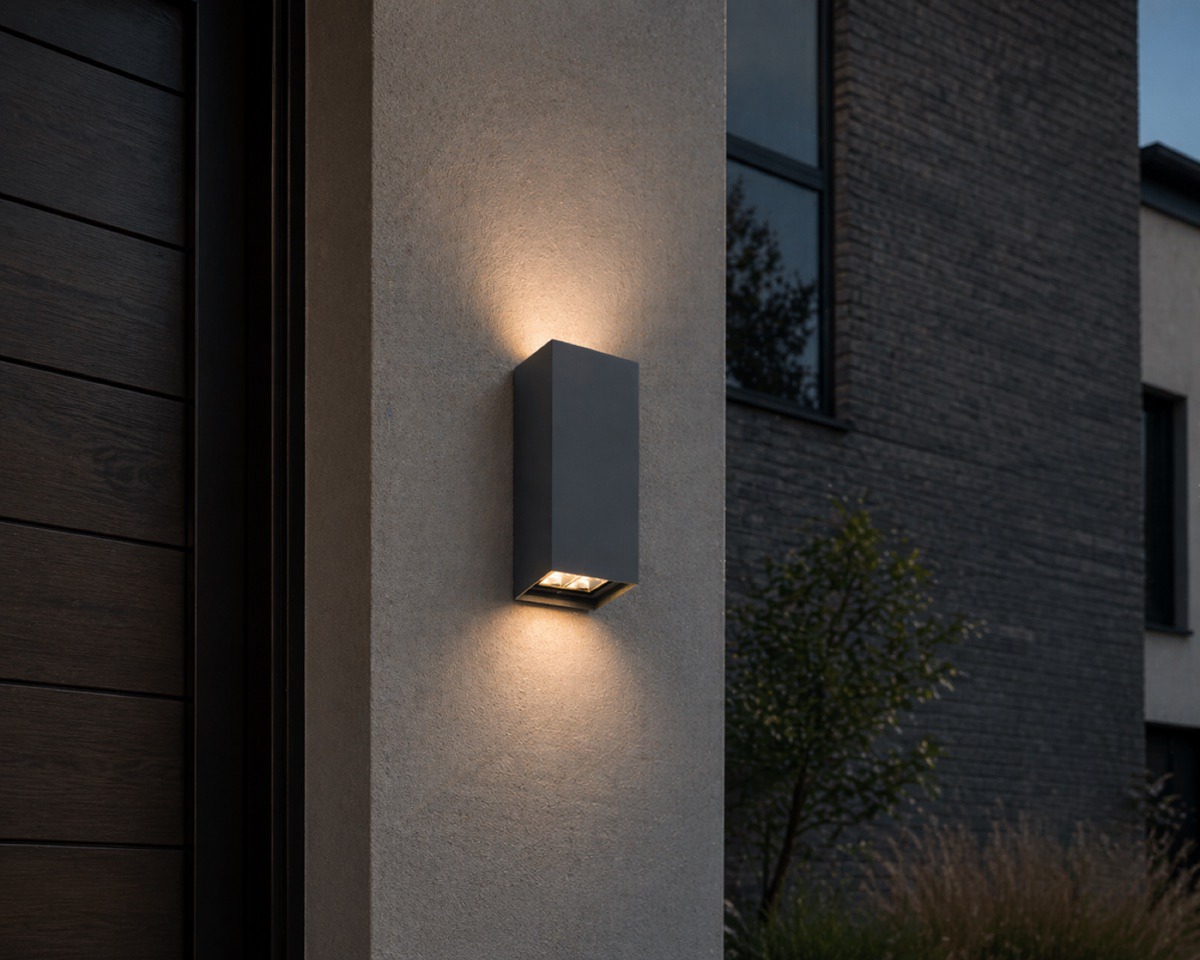

PILLAR is a contemporary dual-head LED wall light built from die-cast aluminum, with clean up-and-down illumination and a modern geometric form. The square body and balanced output work for both indoor and outdoor applications.
Available in five powder-coated body colors with four beam-angle options to control the spread of the up/down wash effect.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions | W100 × L220 × H104 mm |
| Beam Angle Options | 15° / 24° / 38° / 50° |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Glass |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-PA | 2 × 10W | 1,200 lm | 15° / 24° / 38° / 50° | ≥80 | SMD · dual head |
* Values based on CCT 3000K | ±10% tolerance
