Pure Form. Precise Light.

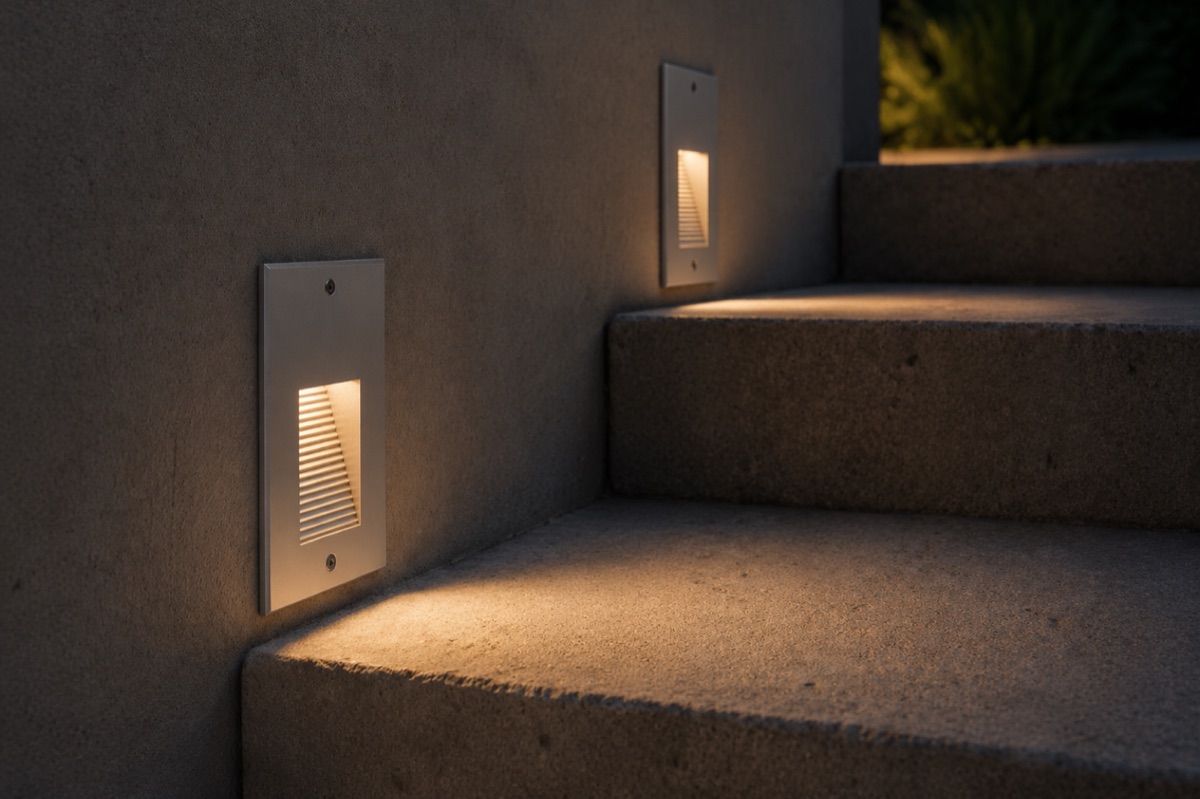

MALLIA 2 is a compact outdoor recessed luminaire that sits flush into the wall or step. The die-cast aluminum body and SMD3535 LED give comfortable, consistent output for pathways, façades, and landscape accents in demanding outdoor environments.
Available in multiple sizes (W120 / W160 / W107 / round and rectangular variants) with single-color and R/G/B/O/Y/I/V color options.
| Input Voltage | DC 12V/24V/48V · AC 100–240V · 50/60Hz |
| Power Factor | >0.5 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | DC: Class III · AC: Class I |
| Dimming | Triac · 1-10V · DALI · PWM |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 95% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK09 |
| Dimensions | W120 / W2 70 × L120 mm / W115 × L115 × H95 mm / W160 × L160 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed Wall Mounted |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP65 Copper Nickel-Coated |
| LED Type | SMD3535 |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-MLI 3W | 3W | 225 lm | 20°×45° | ≥80 | 3-LED |
| NLC-MLI 6W | 6W | 450 lm | 20°×45° | ≥80 | 6-LED · R/G/B/O/Y/I/V |
| NLC-MLI 6W (12-LED) | 3–6W | 240 lm | 45° | ≥80 | 12-LED low-power |
* Values based on CCT 3000K | ±10% tolerance
