Safe Illumination for Hazardous Environments.

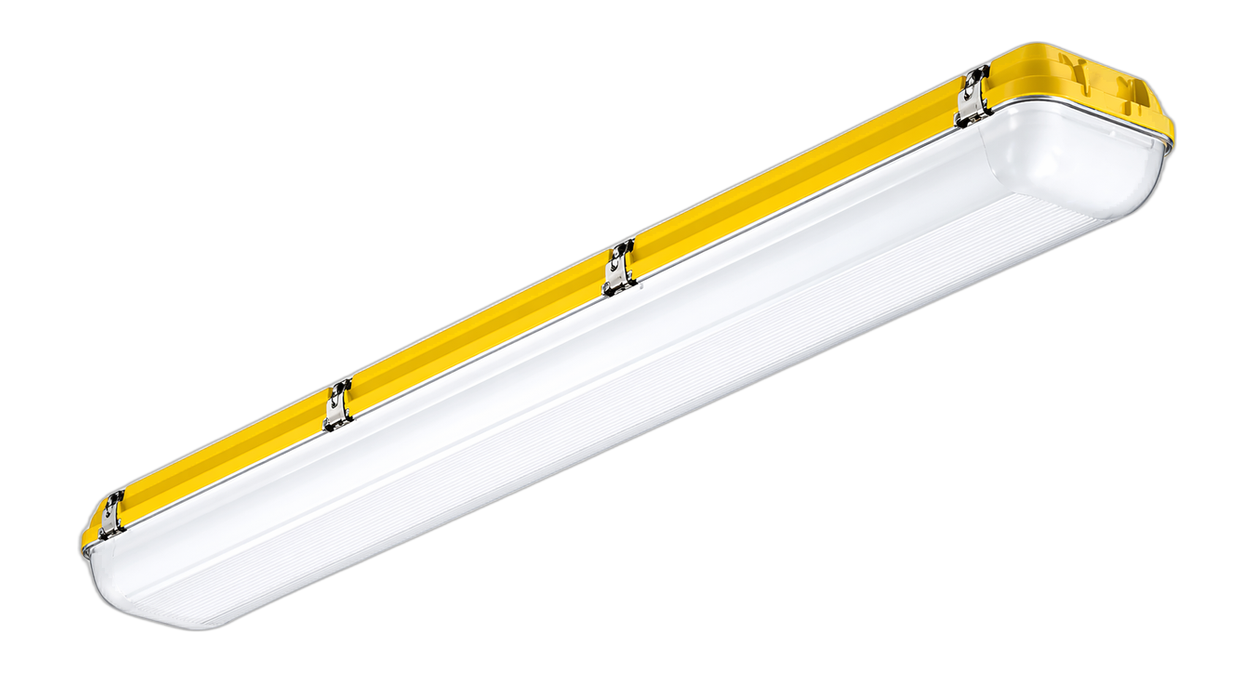

ACQUEX is an EX-rated linear luminaire built for hazardous environments where safety and reliability are paramount. Its Glass Fibre-Reinforced Polyester (GRP) housing and PMMA diffuser are proven to resist impact, corrosion and flammable conditions.
ATEX certified (II 3G Ex nA IIC T6 Gc · II 3D Ex tc IIIC T85 C Dc IP66) with flammability class UL94-V2 and glow-wire test EN 60695-2-11 (650°C). Suitable for petrochemical plants, refineries, wastewater treatment facilities, and any space with explosive gases, dusts or fibres.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.96 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Glass Fibre-Reinforced Polyester (GRP) |
| Mounting | Ceiling · Wall · Suspended |
| Diffuser | PMMA |
| Dimensions | 1282 x 145 x 101 mm |
| Weight | 2–4 kg |
| Fire Protection | UL94-V2 · EN 60695-2-11 (650°C) |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Certifications | ATEX · SASO 2902 · UL · LM79 · TM21 |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-ACQUEX 40W | 40W | 4,400 lm | 110 lm/W | 120° | >80 |
| NLC-ACQUEX 50W | 50W | 5,500 lm | 110 lm/W | 120° | >80 |
| NLC-ACQUEX 70W | 70W | 7,700 lm | 110 lm/W | 120° | >80 |
* ATEX: II 3G Ex nA IIC T6 Gc · II 3D Ex tc IIIC T85 C Dc IP66
