SM Series · Linear IP44

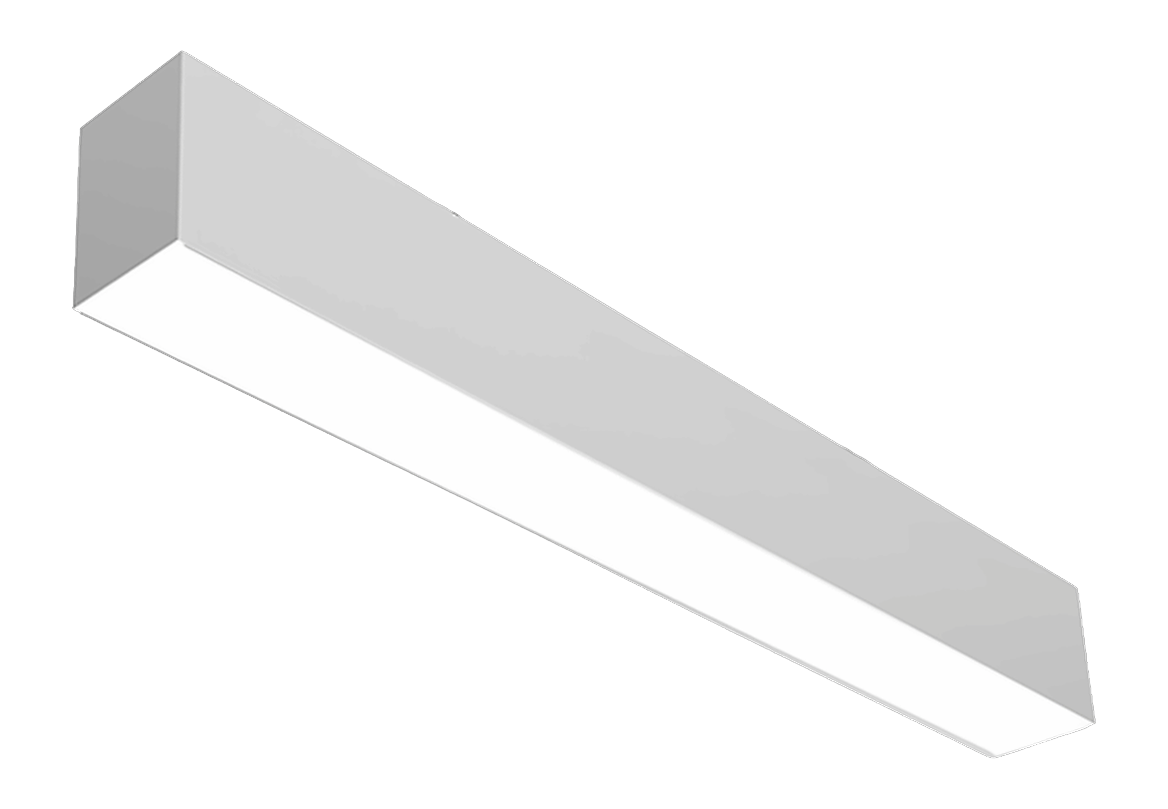

SM-05
Weather-Resistant Surface Linear.
IP44
IK06
110 lm/W
1.8–3.9 kg
Colours
220–240V / 110–277V
5-Year Warranty
15–50W
Power
Up to 5,500 lm
Lumens
110 lm/W
Efficacy
72,000h
Lifetime
Weather-Resistant Surface Linear.
SM-05 offers the same versatile SM-series linear form with improved IP44 protection, suitable for humid indoor applications like kitchens, retail shops and workshops.
Delivers 110 lm/W efficiency across 15W / 30W / 40W / 50W ratings with options for IP65, pendant mounting, flexible size, continuous-linear runs (different size available on contact), and mounting rope kits.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.95 |
| THD | <10 |
| Working Temperature | 50°C |
| Electrical Class | Class I |
| Ingress Protection | IP44 |
| Impact Resistance | IK06 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Iron Phosphated Sheet |
| Mounting | Surface |
| Diffuser | PMMA |
| Dimensions | 15W: 564×80×70 mm · 30W: 1131×80×70 mm · 40W: 1686×80×70 mm · 50W: 2246×80×70 mm |
| Weight | 1.8–3.9 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · Pendant · Flexible Size · IP65 · Continuous Linear · Recessed Mount · Mounting Rope |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SM-05 15W | 15W | 1,650 lm | 110 lm/W | 120° | >80 |
| NLC-SM-05 30W | 30W | 3,300 lm | 110 lm/W | 120° | >80 |
| NLC-SM-05 40W | 40W | 4,400 lm | 110 lm/W | 120° | >80 |
| NLC-SM-05 50W | 50W | 5,500 lm | 110 lm/W | 120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21
