SM Series · Linear Surface Mount
SM-01
Surface-Mount Linear Luminaire.
IP23
IK05
100 lm/W
2.1–3.5 kg
Colours
220–240V / 110–277V
5-Year Warranty
20–70W
Power
Up to 7,000 lm
Lumens
100 lm/W
Efficacy
72,000h
Lifetime

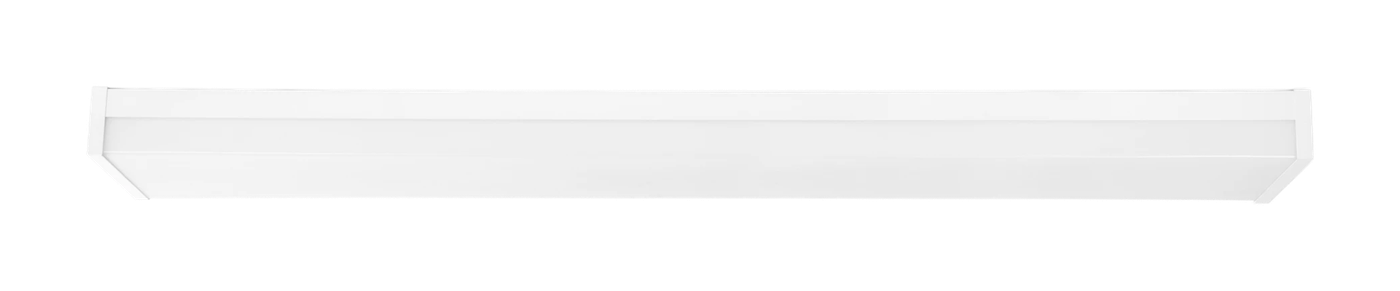

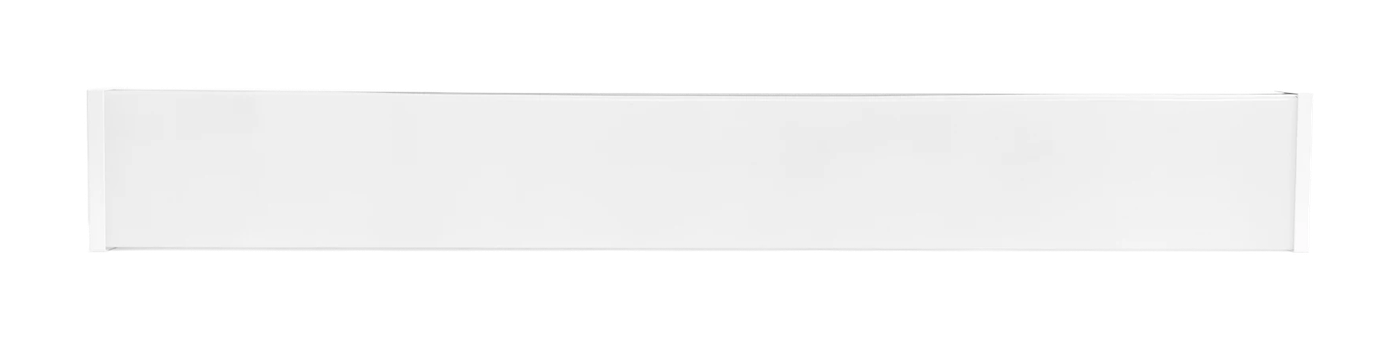

Surface-Mount Linear Luminaire.
SM-01 is a versatile surface-mounted linear luminaire ideal for offices, clinics, classrooms, corridors, retail and workshop environments. Iron-phosphated sheet housing with PMMA diffuser for reliable, uniform illumination.
Available in 20W / 37W / 55W / 70W with 100 lm/W efficiency, IP23 / IK05 rating and options for emergency backup, dimming, wall or pendant mounting, and flexible sizes.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.95 |
| THD | <10 |
| Working Temperature | 50°C |
| Electrical Class | Class I |
| Ingress Protection | IP23 |
| Impact Resistance | IK05 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Iron Phosphated Sheet |
| Mounting | Surface |
| Diffuser | PMMA |
| Dimensions | 20W: 595×152×65 mm · 37W/55W/70W: 1155×152×65 mm |
| Weight | 2.1–3.5 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · Wall / Pendant · Flexible Size |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SM-01 20W | 20W | 2,000 lm | 100 lm/W | 120° | >80 |
| NLC-SM-01 37W | 37W | 3,700 lm | 100 lm/W | 120° | >80 |
| NLC-SM-01 55W | 55W | 5,500 lm | 100 lm/W | 120° | >80 |
| NLC-SM-01 70W | 70W | 7,000 lm | 100 lm/W | 120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
