Illuminate Every Corner

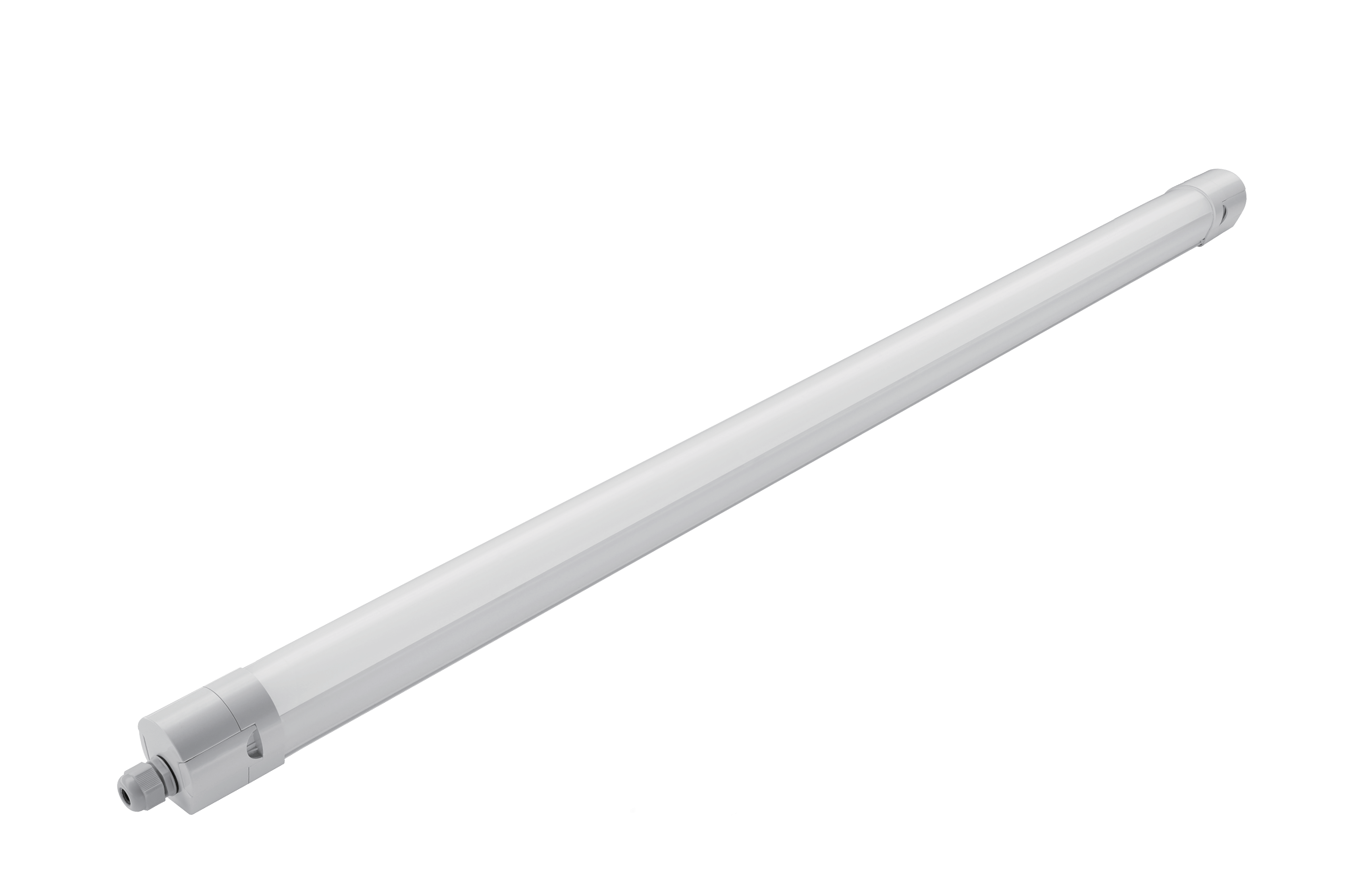

POTAS is a polycarbonate tri-proof luminaire engineered for demanding environments, offering IP66 waterproof protection and up to 64% energy saving over traditional tri-proof fixtures.
Its modular design supports sensor kits, emergency kits, adjustable power and CCT, plus continuous-line linking of up to 15 units, with surface and suspended mounting for fast, flexible installation.
| Input Voltage | AC 220–240V · 50/60Hz |
| Power Factor | >0.9 (>0.95 high power) |
| Electrical Class | Class I |
| Certification | CCC |
| Beam Angle | 120° |
| Operating Temperature | -20°C to +35°C |
| Ambient Temperature | 25°C |
| Ingress Protection | IP65 / IP44 |
| NLS-PS18W-650 | 650 × 59 × 60 mm |
| NLS-PS18W-1220 | 1200 × 59 × 60 mm |
| NLS-PS36W-1220 | 1500 × 59 × 60 mm |
| NLS-PS30W-1500 | 1500 × 59 × 60 mm |
| NLS-PS50W-1500 | 1500 × 59 × 60 mm |
| Housing | Polycarbonate |
| Housing Color | Opal · RAL7035 |
| Mounting | Surface / Suspended |
| Driver | Included |
| Connectors | I · L · T · Cross (optional) |
| LED Type | SMD 2835 |
| Lifetime | Up to 30,000h |
| CRI | 80 |
| Options | Sensor · Emergency · Linkable |
| Power Factor | >0.9 |
| Warranty | 3 Years |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLS-PS18W-650 | 18W | 103 lm/W | 1,850 lm | 120° | 80 |
| NLS-PS18W-1220 | 18W | 103 lm/W | 1,850 lm | 120° | 80 |
| NLS-PS36W-1220 | 36W | 113 lm/W | 4,057 lm | 120° | 80 |
| NLS-PS30W-1500 | 30W | 110 lm/W | 3,300 lm | 120° | 80 |
| NLS-PS50W-1500 | 50W | 117 lm/W | 5,844 lm | 120° | 80 |
* Values based on CCT 3000K | ±10% tolerance
