Reliable Light, Anywhere.

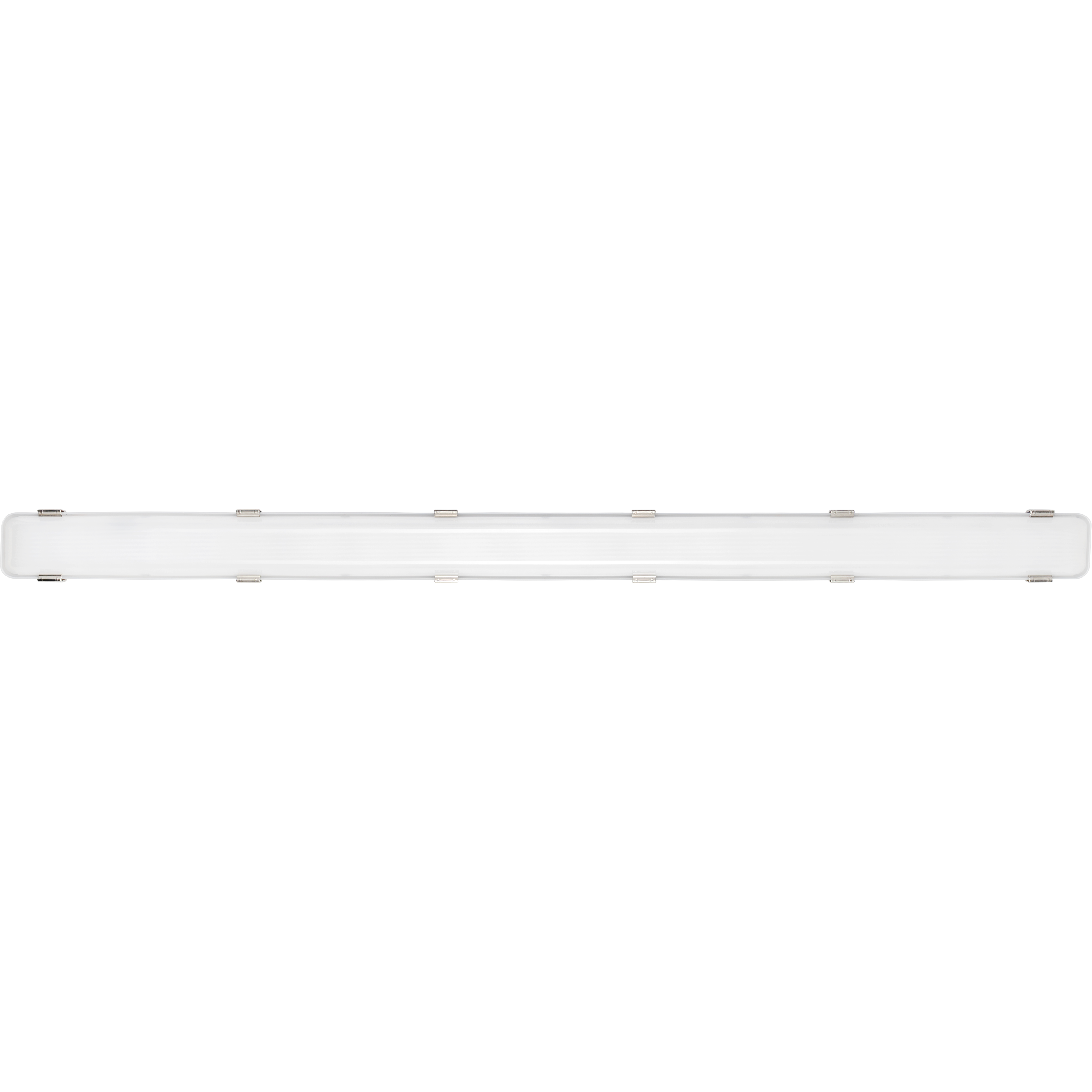

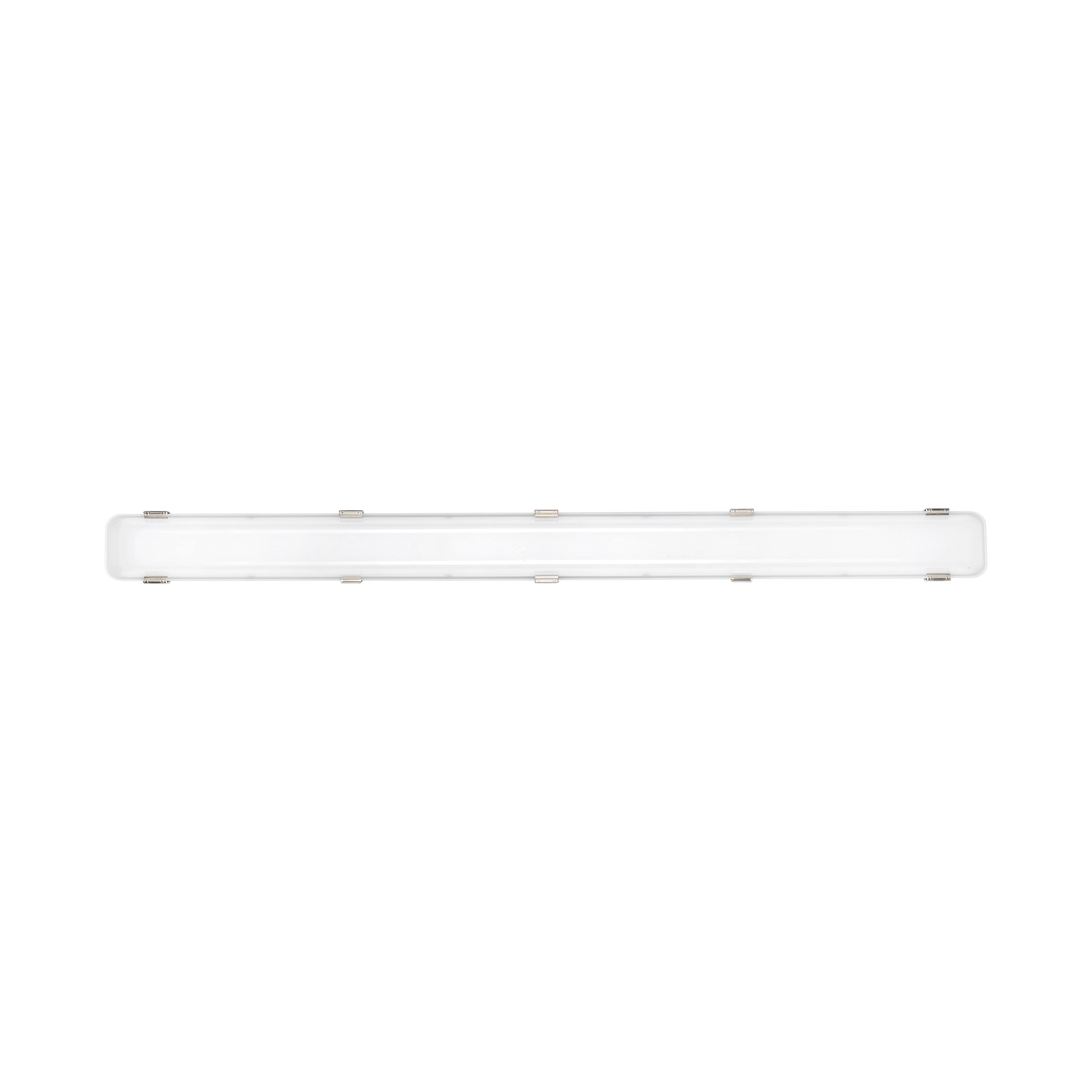

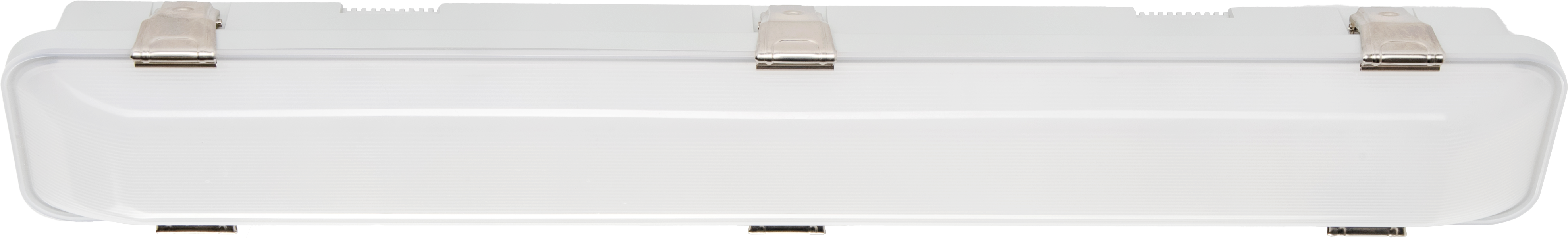

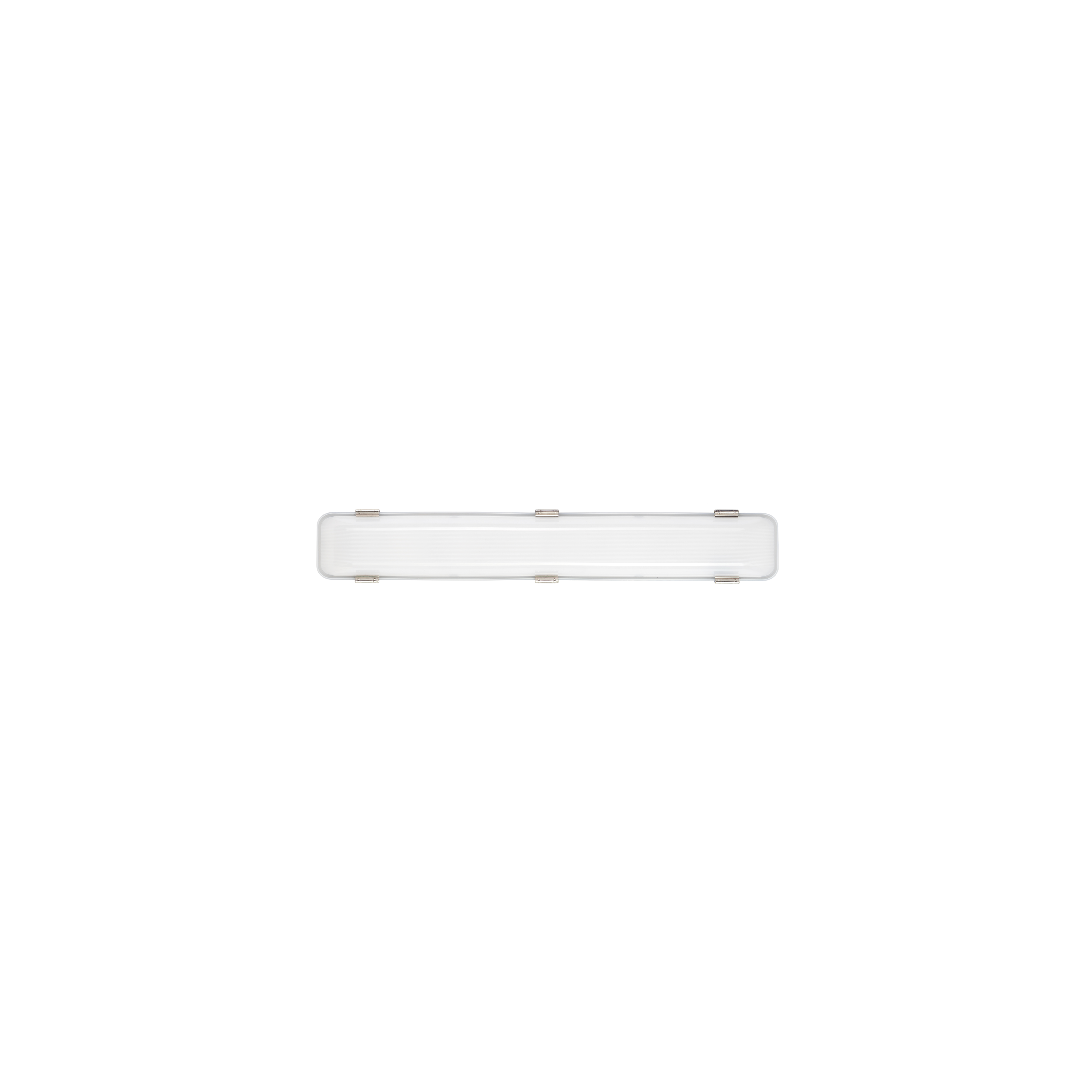

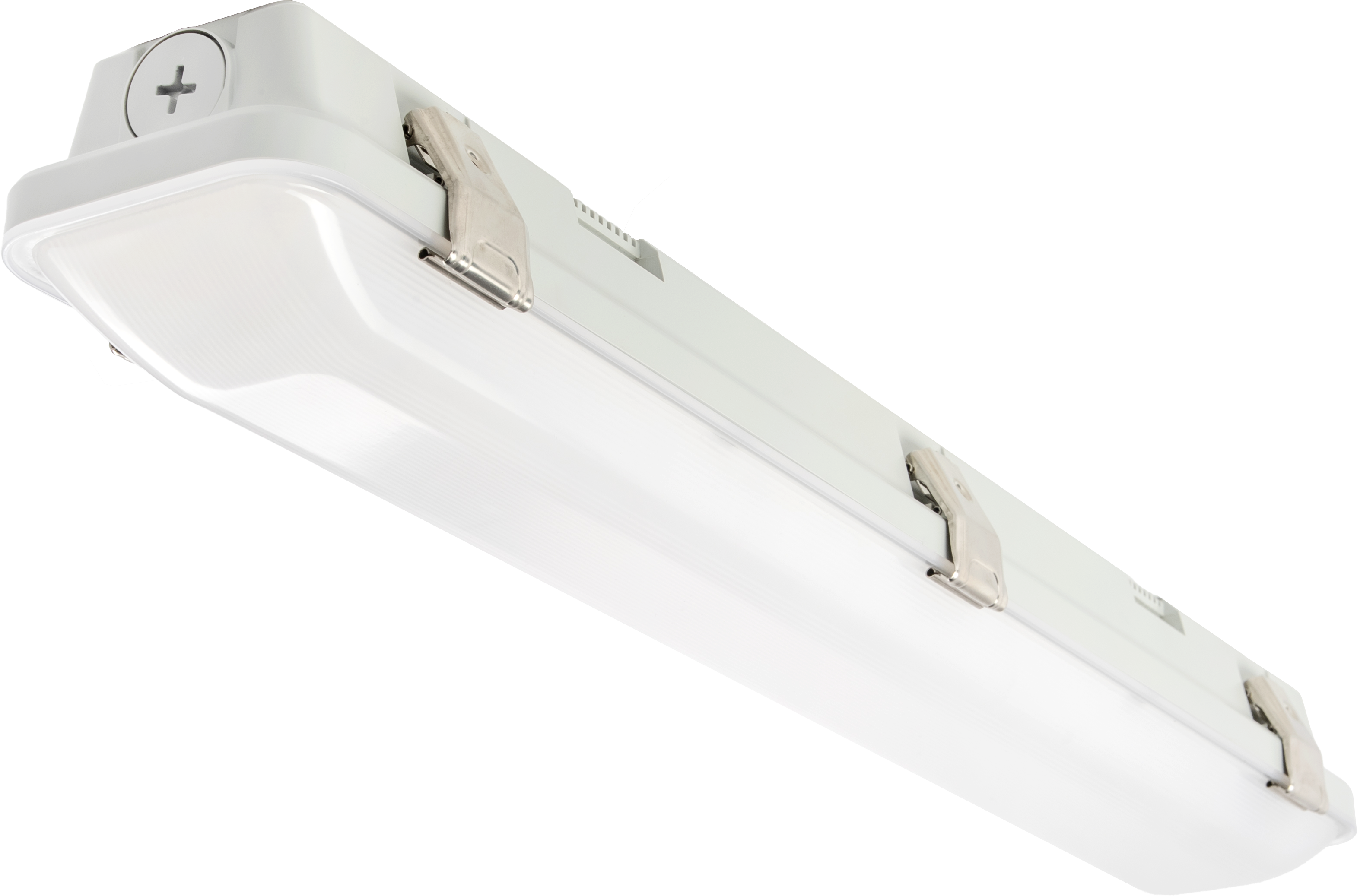

ALLIGATOR is a weather-proof linear LED luminaire built for reliable, glare-controlled illumination in demanding outdoor and industrial environments. Its IP66 / IK08-rated polycarbonate housing with stainless-steel clips delivers durable performance, while URG <22 optics ensure superior visual comfort.

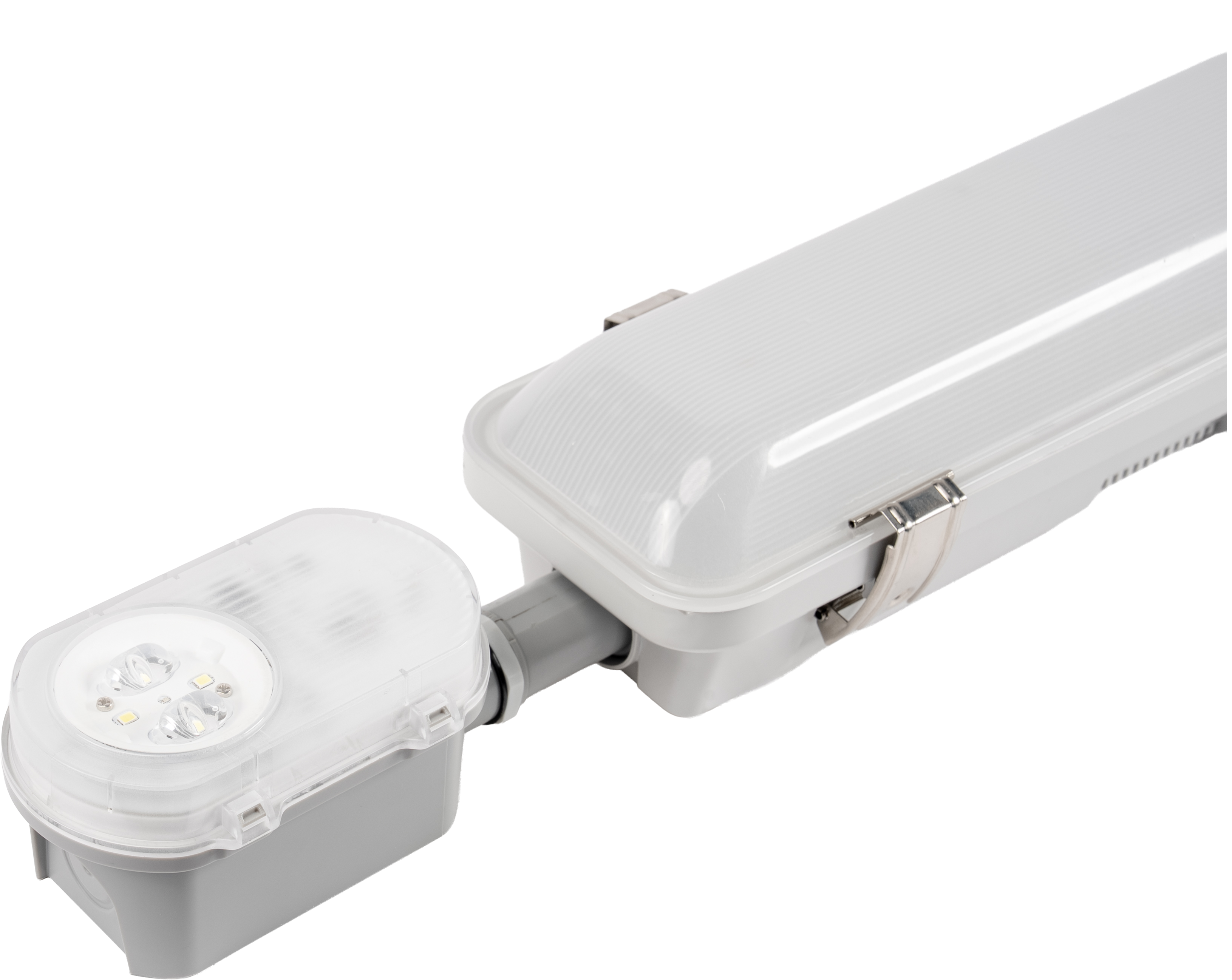

Available in 5 power tiers (20W, 36W, 40W, 56W, 60W) producing 3,000 to 9,000 lumens at a class-leading 150 lm/W, with a wide 100° beam for uniform coverage. Surface-mount or hanging installation, optional emergency backup, optional dimming, and SMD2835 LEDs with a 100,000-hour lifetime.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Optional |
| Emergency Backup | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 20 to >90% RH |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| URG (Glare Rating) | <22 |
| Switching Cycles | >50,000 times |
| Housing | Polycarbonate |
| Mounting | Surface Mounted / Hanging |
| Optics | Polycarbonate Diffuser |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Color | Gray |
| Dimensions (20W) | L1 640 × W100 × H80 mm · L2 260 mm |
| Dimensions (36–40W) | L1 1240 × W100 × H80 mm · L2 800 mm |
| Dimensions (56–60W) | L1 1540 × W100 × H80 mm · L2 976 mm |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >80 · Optional >90 |
| URG | <22 (low glare) |
| Switching Cycles | >50,000 times |
| Dimming | Optional |
| Emergency Backup | Optional |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-AL 20W | 20W | 3,000 lm | 150 lm/W | 100° | >80 · >90 opt |
| NLC-AL 36W | 36W | 5,400 lm | 150 lm/W | 100° | >80 · >90 opt |
| NLC-AL 40W | 40W | 6,000 lm | 150 lm/W | 100° | >80 · >90 opt |
| NLC-AL 56W | 56W | 8,400 lm | 150 lm/W | 100° | >80 · >90 opt |
| NLC-AL 60W | 60W | 9,000 lm | 150 lm/W | 100° | >80 · >90 opt |
* Values based on CCT 4000K | ±10% tolerance | All variants share 150 lm/W efficiency and 100° beam.
