WP Series · Tri-proof Linear

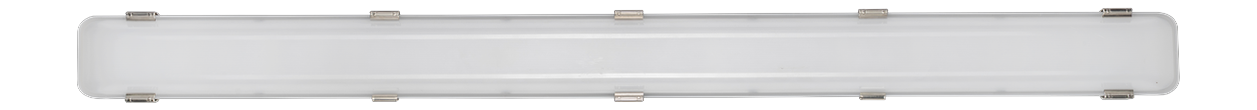

WP-02
Tri-proof Linear Wall Pack.
IP66
IK08
120 lm/W
1.1–2.4 kg
Colours
220–240V / 110–277V
5-Year Warranty
20–75W
Power
Up to 9,000 lm
Lumens
120 lm/W
Efficacy
72,000h
Lifetime
Tri-proof Linear Wall Pack.
WP-02 is a tri-proof linear wall pack built with a Glass Fibre-Reinforced Polyester (GRP) housing, dust-tight, waterproof and impact resistant. Designed for parking garages, factories, canopies, workshops, electro-mechanical rooms and store rooms.
Available from 20W to 75W with 120 lm/W efficiency, IP66 / IK08 protection, and options for emergency backup, 0-10V dimming and DALI.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.96 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Glass Fibre-Reinforced Polyester (GRP) |
| Mounting | Surface |
| Diffuser | PMMA |
| Dimensions (L × W × H) | 20W: 666×100×108mm · 34/44/55W: 1275×100×108mm · 75W: 1275×170×108mm |
| Weight | 1.1–2.4 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · IP66 |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-WP-02 20W | 20W | 2,400 lm | 120 lm/W | 120° | >80 |
| NLC-WP-02 34W | 34W | 4,080 lm | 120 lm/W | 120° | >80 |
| NLC-WP-02 44W | 44W | 5,280 lm | 120 lm/W | 120° | >80 |
| NLC-WP-02 55W | 55W | 6,600 lm | 120 lm/W | 120° | >80 |
| NLC-WP-02 75W | 75W | 9,000 lm | 120 lm/W | 120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
