Restricted-breathing LED high bay for Zone 2 gas and Zone 21/22 dust areas, in two sizes from 20 W to 200 W.

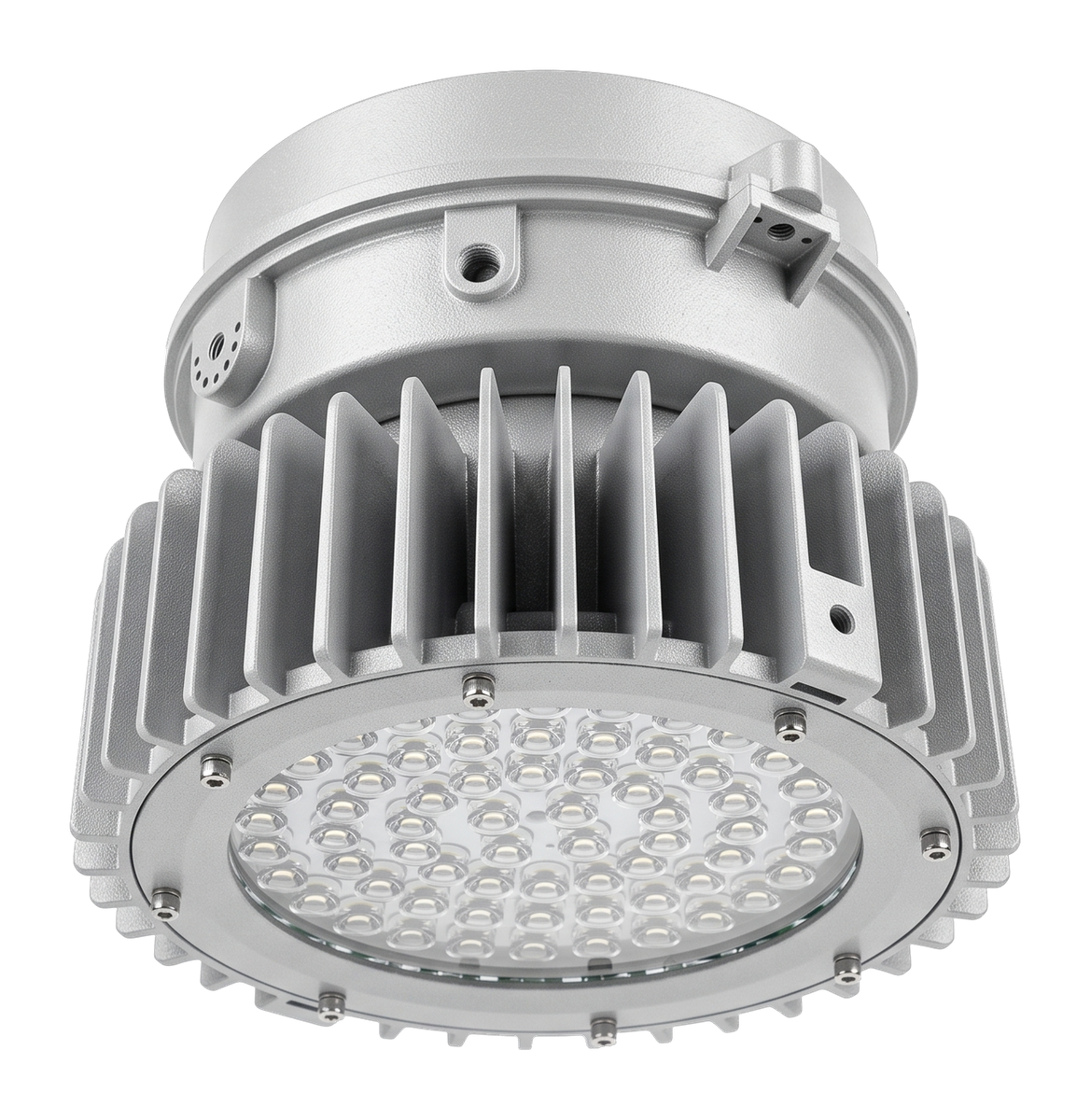

EXP-HB is an LED high bay for hazardous locations. Its gas protection is restricted breathing, Ex nR IIC Gc, which suits Zone 2, and its dust protection by enclosure, Ex tb IIIC Db, suits Zones 21 and 22. The die-cast ADC12 aluminium body carries a tempered-glass cover and seals to IP66.
Two enclosure sizes cover 20 W to 200 W: HB1 from 20 W to 80 W and HB2 from 100 W to 200 W. The temperature class depends on wattage and site ambient, from T6 / T80 °C up to T4 / T130 °C for HB2 at 200 W and +60 °C, as tabled in certificate IECEx TPS 24.0067X. Four optics (30°, 60°, 90°, 120°) and six colour temperatures from 2700 K to 6500 K are offered.
| Gas marking | Ex nR IIC T6…T4 Gc |
| Dust marking | Ex tb IIIC T80 °C…T130 °C Db |
| Suitable zones | Zone 2 (gas) · Zones 21, 22 (dust) |
| Certificate | IECEx TPS 24.0067X, Issue 0 · TÜV SÜD Product Service GmbH |
| Ambient temperature | -40 °C to +45 °C / +60 °C by wattage · from -30 °C with sensor |
| Input Voltage | 100-277V AC · 50/60Hz |
| Power | 20-200W |
| Power Factor | > 0.95 * |
| THD | < 10% * |
| Surge Protection | 4 kV / 6 kV * |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 · IK10 with wire guard * |
| Cable Entries | M25 × 1.5 or 3/4" NPT |
| Dimensions | HB1: Ø264 × 218 mm |
* NLC datasheet declaration, not covered by the IECEx certificate.
| Housing | Die-cast aluminium ADC12 |
| Cover | Tempered glass, flat or convex |
| Mounting | Ceiling · wall · stanchion 25° · pendant · surface |
| Options | Sensor (derated) · 0-10V dimming * · wire guard * |
| Efficacy | 140 lm/W nominal * |
| CRI | >70 standard · >80 option |
| Beam Angle | 30° · 60° · 90° · 120° |
| CCT | 2700K to 6500K |
| HB1 up to 80 W | T6 / T80 °C to +45 °C · T5 / T95 °C to +60 °C |
| HB1 up to 45 W | T6 / T80 °C to +60 °C |
| HB2 up to 120 W | T6 / T80 °C to +45 °C · T5 / T95 °C to +60 °C |
| HB2 up to 200 W | T4 / T130 °C to +60 °C |
| Order code example | NLC EXP-HB2-150W50D90 = HB2, 150 W, 5000 K, 90° optic |
* NLC datasheet declaration, not covered by the IECEx certificate.
Contact our engineering team to match the model to your area classification drawing and for ordering codes.
| Model | Power | Nominal Flux | Body Size | Beam Angle |
|---|---|---|---|---|
| EXP-HB1 | 20 · 25 · 30 · 40 · 50 · 60 · 70 · 80 W | 2,800 to 11,200 lm | Ø264 × 218 mm | 30° · 60° · 90° · 120° |
| EXP-HB2 | 100 · 120 · 150 · 180 · 200 W | 14,000 to 28,000 lm | Ø312 × 240 mm | 30° · 60° · 90° · 120° |
Nominal flux is calculated at the 140 lm/W NLC declares, not a laboratory measurement.
