Flameproof LED luminaire for Zone 1 and Zone 21, in two sizes from 20 W to 200 W, with an emergency version.

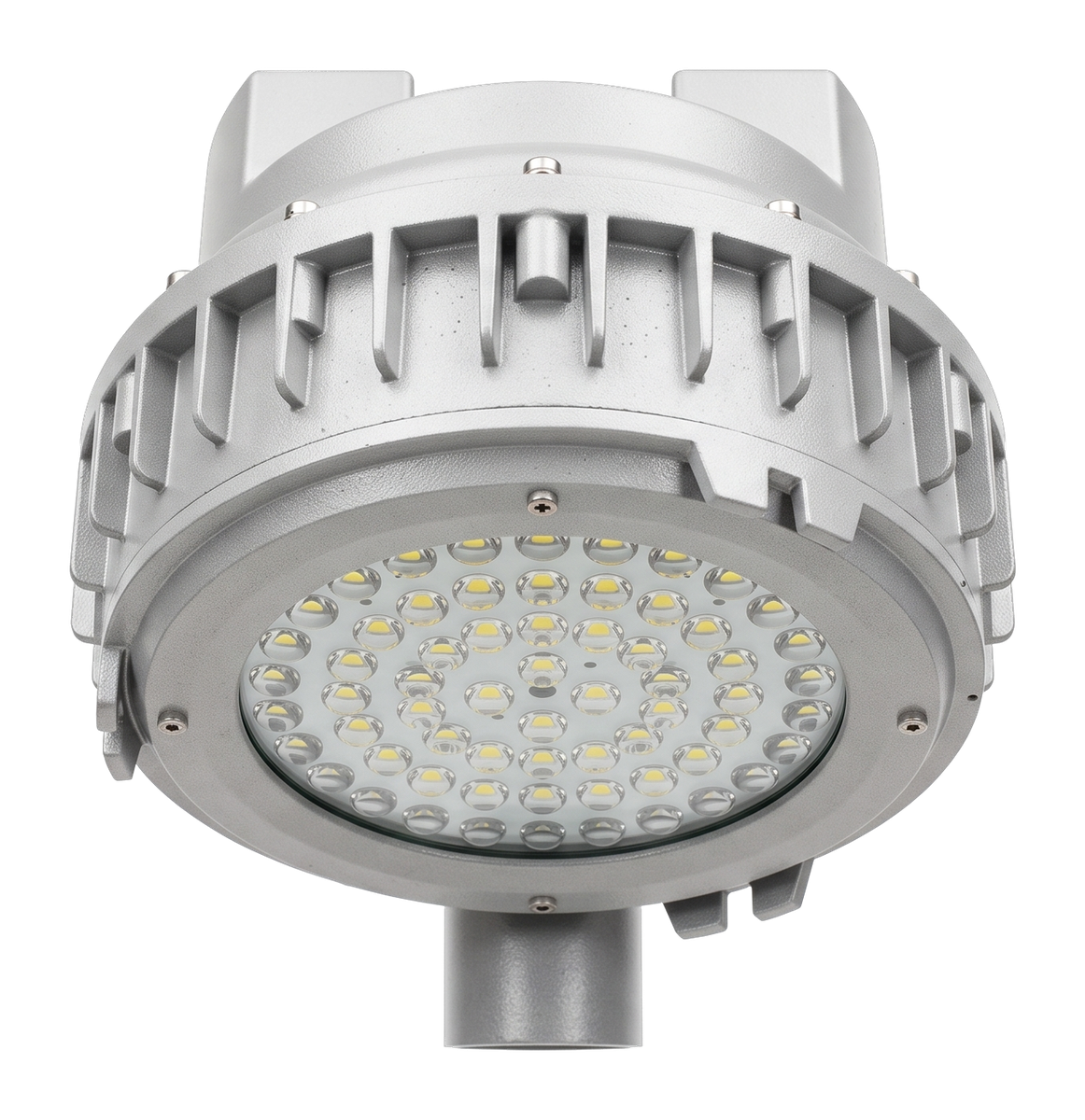

EXP-HD is a flameproof LED luminaire, Ex db IIC Gb for gas Zones 1 and 2 and Ex tb IIIC Db for dust Zones 21 and 22. Lamp heatsink, driver enclosure and glass frame are die-cast ADC12 aluminium with a tempered-glass cover, gasketed to IP66; only the driver enclosure cover is opened for installation and maintenance.
Two sizes cover 20 W to 200 W: HD1 up to 100 W and HD2 from 100 W to 200 W. The temperature class runs from T6 / T80 °C to T4 / T130 °C by wattage and ambient, under certificate IECEx NEP 25.0019X. An emergency version (-EM) is certified for HD1 up to 50 W and HD2 up to 100 W, at -20 °C to +50 °C. Mounting includes 90° and 25° pole supports, pendant pipe and surface bracket.
| Gas marking | Ex db IIC T6…T4 Gb |
| Dust marking | Ex tb IIIC T80 °C…T130 °C Db |
| Suitable zones | Zones 1, 2 (gas) · Zones 21, 22 (dust) |
| Certificate | IECEx NEP 25.0019X, Issue 0 · NEPSI |
| Ambient temperature | -40 °C to +40 °C / +55 °C / +60 °C by wattage · EM -20 °C to +50 °C |
| Input Voltage | 100-277V AC · 50/60Hz |
| Power | 20-200W |
| Power Factor | > 0.95 * |
| THD | < 10% * |
| Surge Protection | 6 kV * |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 · IK10 with wire guard * |
| Cable Entries | Three: M16 × 1.5, M25 × 1.5 or 3/4" NPT |
| Dimensions | HD1: 270 × 304.5 mm (flat glass) |
* NLC datasheet declaration, not covered by the IECEx certificate.
| Housing | Die-cast aluminium ADC12 |
| Cover | Tempered glass: flat, or globe with wire guard * |
| Mounting | Pole 90° · pole 25° · pendant pipe · surface bracket |
| Fasteners | Property class A2-70 |
| Field Wiring | Cable rated 105 °C minimum |
| Efficacy | 140 lm/W nominal * |
| CRI | >70 standard · >80 option |
| Beam Angle | 30° · 60° · 90° · 120° |
| CCT | 2700K to 6500K |
| Emergency Version | -EM: HD1 up to 50 W · HD2 up to 100 W |
| HD1 up to 80 W | T6 / T80 °C to +40 °C · T5 / T95 °C to +60 °C |
| HD1 up to 100 W | T5 / T95 °C to +40 °C · T4 / T130 °C to +60 °C |
| HD2 up to 150 W | T6 / T80 °C to +40 °C · T5 / T95 °C to +55 °C |
| HD2 up to 200 W | T5 / T95 °C to +40 °C |
| Emergency (-EM) | T6 / T80 °C, -20 °C to +50 °C |
| Order code example | NLC EXP-HD2-150W40D60 = HD2, 150 W, 4000 K, 60° optic |
* NLC datasheet declaration, not covered by the IECEx certificate.
Contact our engineering team to match the model to your area classification drawing and for ordering codes.
| Model | Power | Nominal Flux | Size | Emergency |
|---|---|---|---|---|
| EXP-HD1 | 20 · 40 · 60 · 70 · 100 W | 2,800 to 14,000 lm | 270 × 304.5 mm | -EM up to 50 W |
| EXP-HD2 | 100 · 150 · 200 W | 14,000 to 28,000 lm | Ø336 × 258 mm | -EM up to 100 W |
Nominal flux is calculated at the 140 lm/W NLC declares, not a laboratory measurement.
