Increased-safety LED floodlight for Zone 2 gas and Zone 21/22 dust areas, in four sizes from 20 W to 300 W.

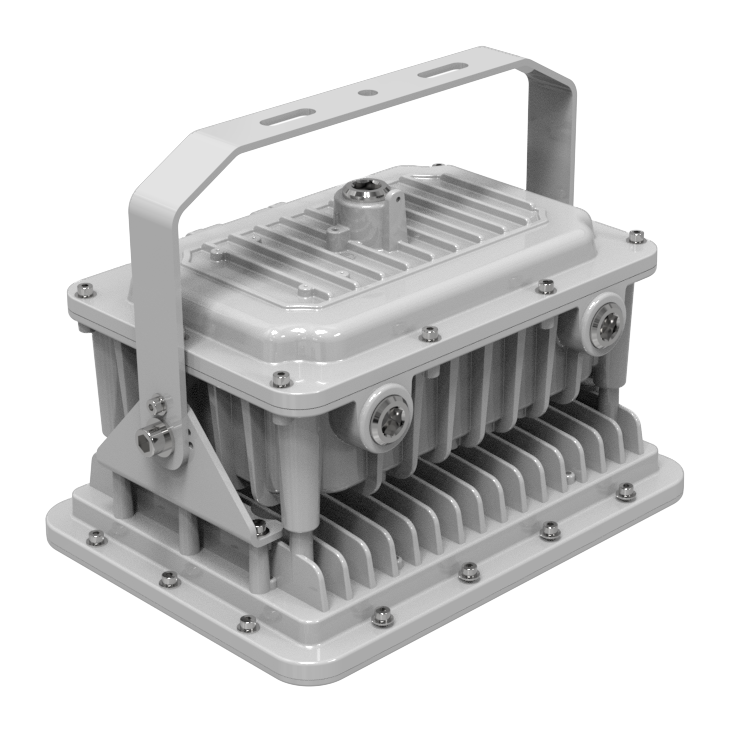

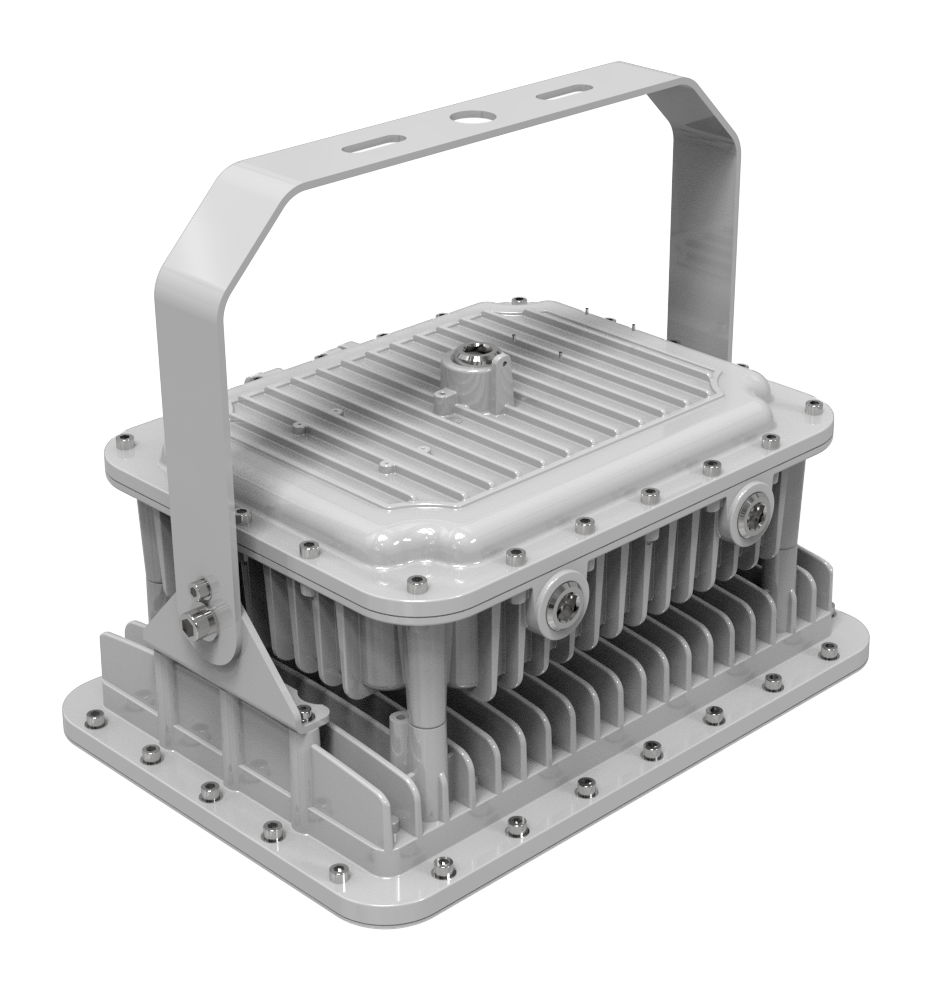

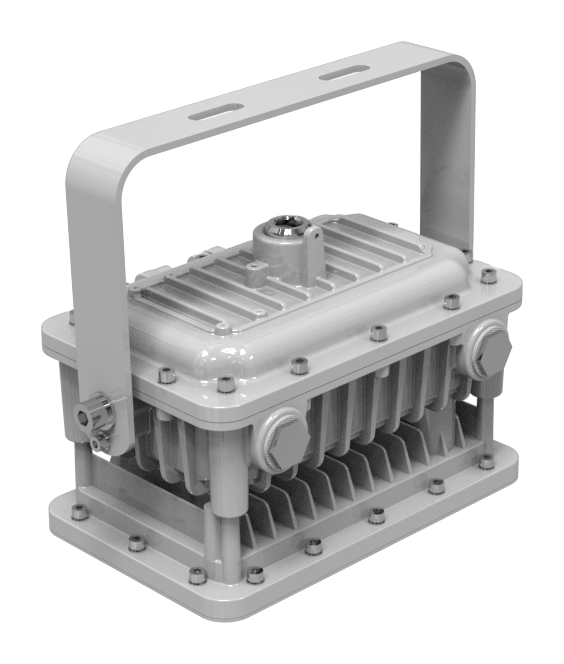

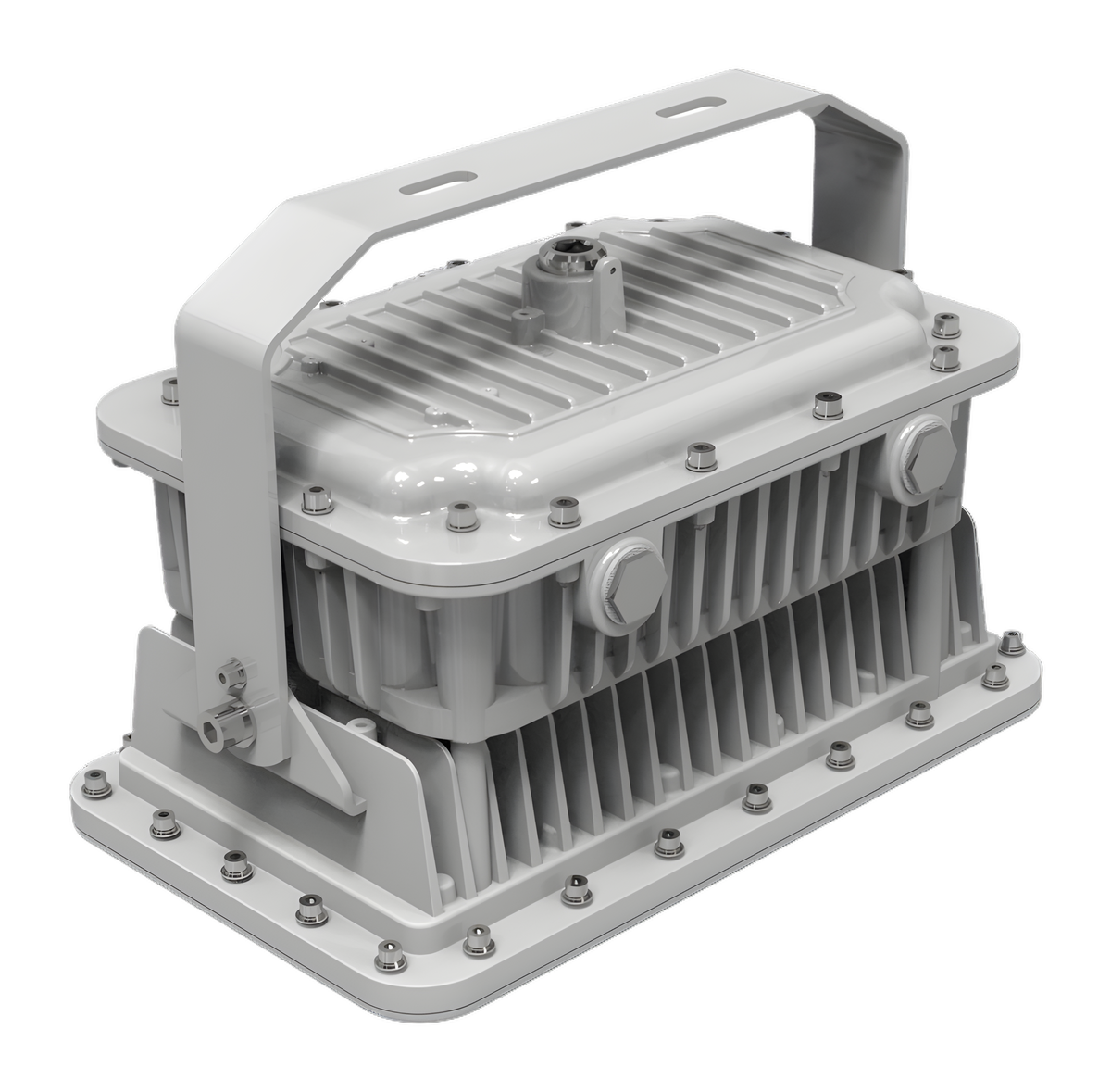

EXP-FL is an increased-safety LED floodlight, Ex ec IIC Gc for Zone 2 gas areas and Ex tb IIIC Db for Zones 21 and 22. The die-cast aluminium body with stainless hardware is sealed to IP66, and the power box opens from the top through a circular cover.
Four sizes cover 20 W to 300 W: FL1 up to 70 W, FL2 from 80 W to 150 W, FL3 from 60 W to 200 W and FL4 from 200 W to 300 W. Every catalogue wattage is rated T3 / T100 °C at ambients up to +55 °C under certificate IECEx PCET 25.0005X, Issue 1. Optics of 40°, 60°, 90° and 120° are offered, with eleven mounting arrangements from wall and ceiling brackets to trunnion, pole and stanchion fittings.
| Gas marking | Ex ec IIC T6…T3 Gc |
| Dust marking | Ex tb IIIC T85 °C…T100 °C Db |
| Suitable zones | Zone 2 (gas) · Zones 21, 22 (dust) |
| Certificate | IECEx PCET 25.0005X, Issue 1 · PCEC (Tianjin) Certification Services |
| Ambient temperature | -40 °C to +55 °C · T3 / T100 °C at every catalogue wattage |
| Input Voltage | 100-277V AC · 50/60Hz |
| Power | 20-300W |
| Power Factor | > 0.95 * |
| THD | < 10% * |
| Surge Protection | 4 kV / 6 kV * |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 · IK10 with wire guard * |
| Cable Entries | 3/4" NPT, M25, M20 or M16 |
| Dimensions | FL3: 380 × 230 × 268.2 mm |
* NLC datasheet declaration, not covered by the IECEx certificate.
| Housing | Die-cast aluminium, stainless hardware * |
| Mounting | Wall · ceiling · hook · trunnion · pole · stanchion |
| Options | 0-10V dimming * · wire guard * · CRI >80 * |
| Efficacy | 140 lm/W nominal * |
| CRI | >70 standard · >80 option |
| Beam Angle | 40° · 60° · 90° · 120° |
| CCT | 3000K to 6500K |
| FL1, FL2, FL3 up to 200 W | T3 / T100 °C, -40 °C to +55 °C |
| FL4 up to 300 W | T3 / T100 °C, -40 °C to +55 °C |
| Accessories | A junction box or accessory in the hazardous area needs its own certification |
| Order code example | NLC EXP-FL3-200W50D40 = FL3, 200 W, 5000 K, 40° optic |
* NLC datasheet declaration, not covered by the IECEx certificate.
Contact our engineering team to match the model to your area classification drawing and for ordering codes.
| Model | Power | Nominal Flux | Size | Beam Angle |
|---|---|---|---|---|
| EXP-FL1 | 20 · 30 · 40 · 50 · 60 · 70 W | 2,800 to 9,800 lm | 299 × 184.5 × 253.5 mm | 40° · 60° · 90° · 120° |
| EXP-FL2 | 80 · 100 · 120 · 150 W | 11,200 to 21,000 lm | 320 × 240 × 262 mm | 40° · 60° · 90° · 120° |
| EXP-FL3 | 60 · 80 · 100 · 120 · 150 · 180 · 200 W | 8,400 to 28,000 lm | 380 × 230 × 268.2 mm | 40° · 60° · 90° · 120° |
| EXP-FL4 | 200 · 250 · 300 W | 28,000 to 42,000 lm | 420 × 300 × 382 mm | 40° · 60° · 90° · 120° |
Nominal flux is calculated at the 140 lm/W NLC declares, not a laboratory measurement.
