Pure illumination, timeless form.

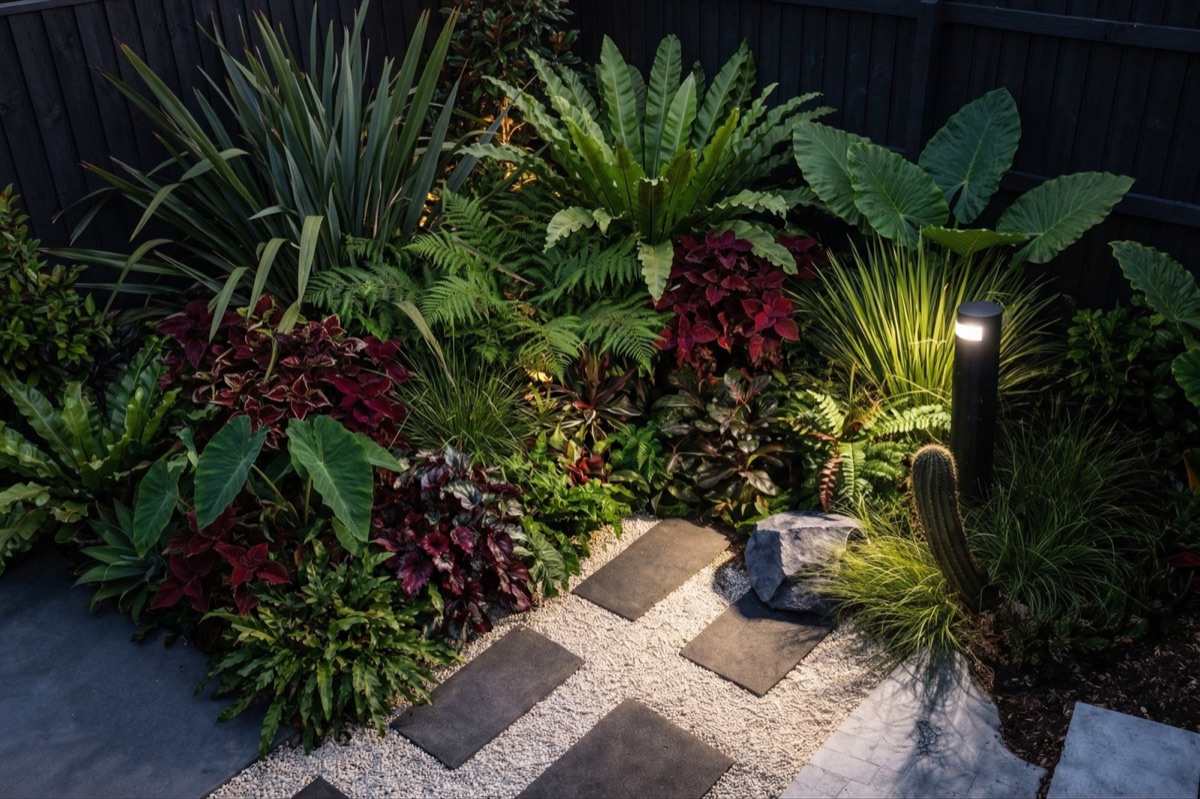

VEIL is a sleek cylindrical bollard luminaire that delivers soft, focused illumination with a modern, minimalist touch. Its clean form and refined light output create a subtle yet stylish lighting presence, ideal for enhancing contemporary outdoor environments.
Available in three heights (300 / 550 / 800 mm) with detachable and non-detachable flange base options. Operates on 24V DC or 100–277V AC with full dimming support and a wide 177° distribution for uniform pathway lighting.
| Input Voltage | 24V DC / 100–277VAC · 50/60Hz |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK07 |
| Housing | Aluminum / Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | PMMA |
| Body Finish | Powder-Coated |
| Body Colors | Bronze · Black · Dark Gray |
| Heights Available | 300 mm · 550 mm · 800 mm |
| Base Options | Detachable (non-flange) · Non-detachable (flange) |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-VE 6W (24V DC) | 6W | 214 lm | 35 lm/W | 177° | >80 · >90 opt |
| NLC-VE 7W (120V AC) | 7W | 214 lm | 30.6 lm/W | 177° | >80 · >90 opt |
| NLC-VE 7W (240V AC) | 7W | 214 lm | 30.6 lm/W | 177° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance
