Layered Light, Timeless Presence.

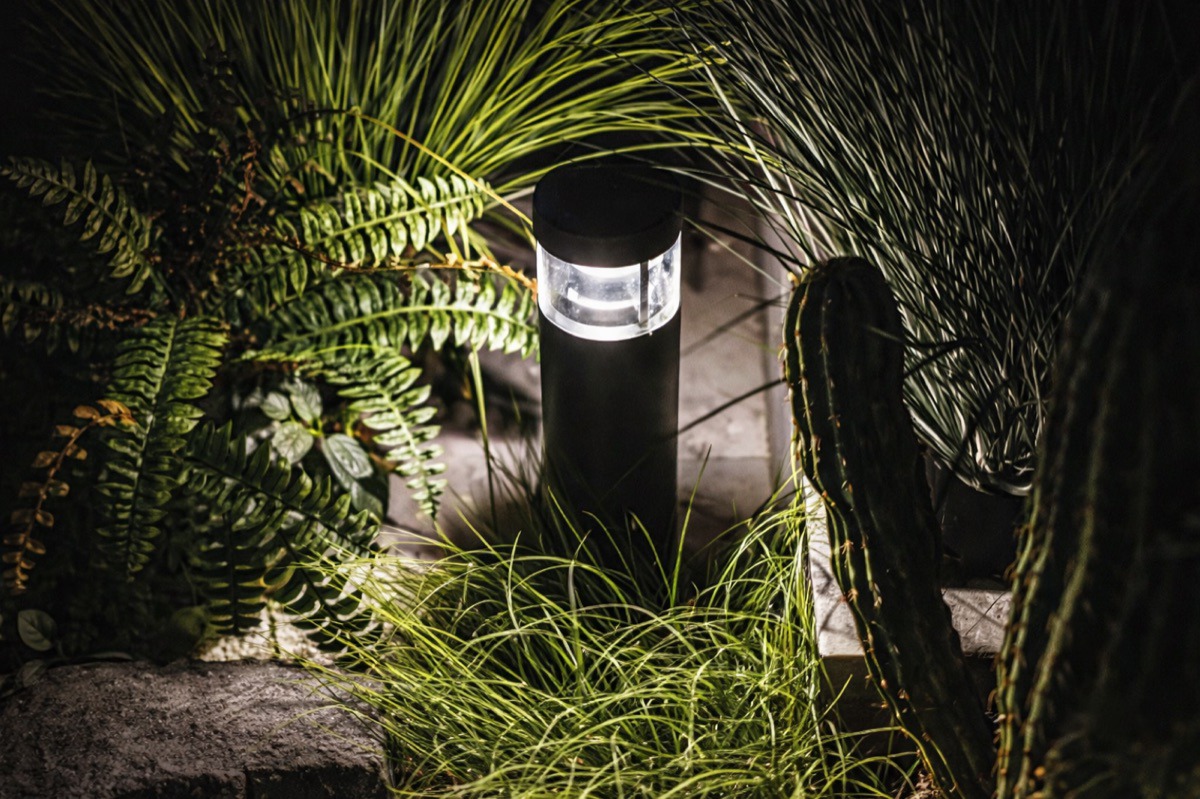

ANKA is a modern bollard luminaire featuring a layered internal optical design that creates a warm, refined glow on the ground plane. Its sleek cylindrical body and durable die-cast aluminum construction make it a stylish choice for contemporary outdoor architectural spaces.
Available in three heights, 300 mm, 550 mm, and 800 mm, with both detachable non-flange and non-detachable flange base options. Operates on 24V DC or 100–277V AC with dimming support (Triac, PWM, 1–10V, DALI). Backed by a 5-year warranty.
| Input Voltage | 24V DC / 100–277VAC · 50/60Hz |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class III (DC) / Class I (AC) |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK07 |
| Housing | Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | PMMA (Layered) |
| Body Finish | Powder-Coated Aluminum |
| Body Colors | Bronze · Black · Dark Gray |
| Heights Available | 300 mm · 550 mm · 800 mm |
| Base Options | Detachable (non-flange) · Non-detachable (flange) |
| Dimensions | D1 110 × H300 / 550 / 800 mm |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-AK 6W (24V DC) | 6W | 127 lm | 21 lm/W | 120° | >80 · >90 opt |
| NLC-AK 6.7W (120V AC) | 6.7W | 127 lm | 19 lm/W | 120° | >80 · >90 opt |
| NLC-AK 6.5W (240V AC) | 6.5W | 127 lm | 19.6 lm/W | 120° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance | Same lumen output across voltage variants; efficiency varies with input.
