Shaped for style. Built for performance.

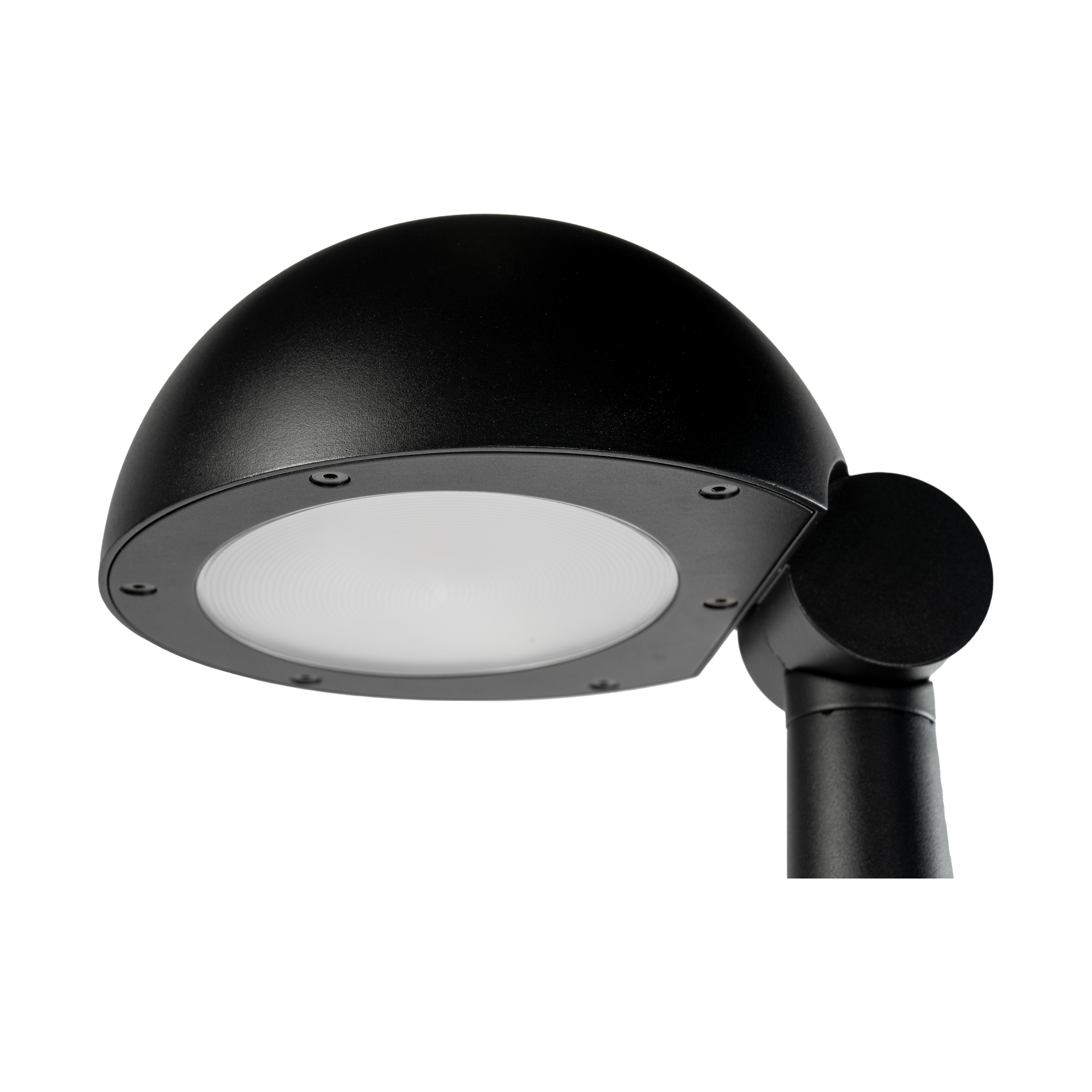

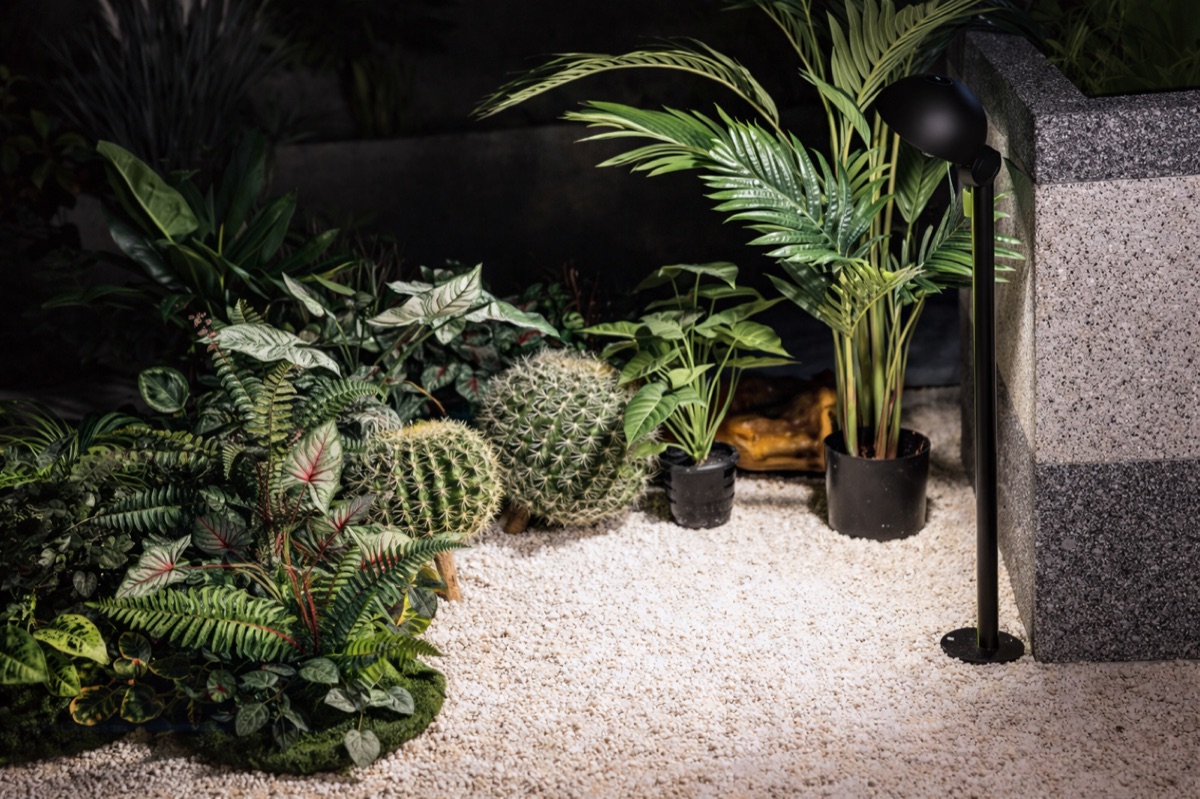

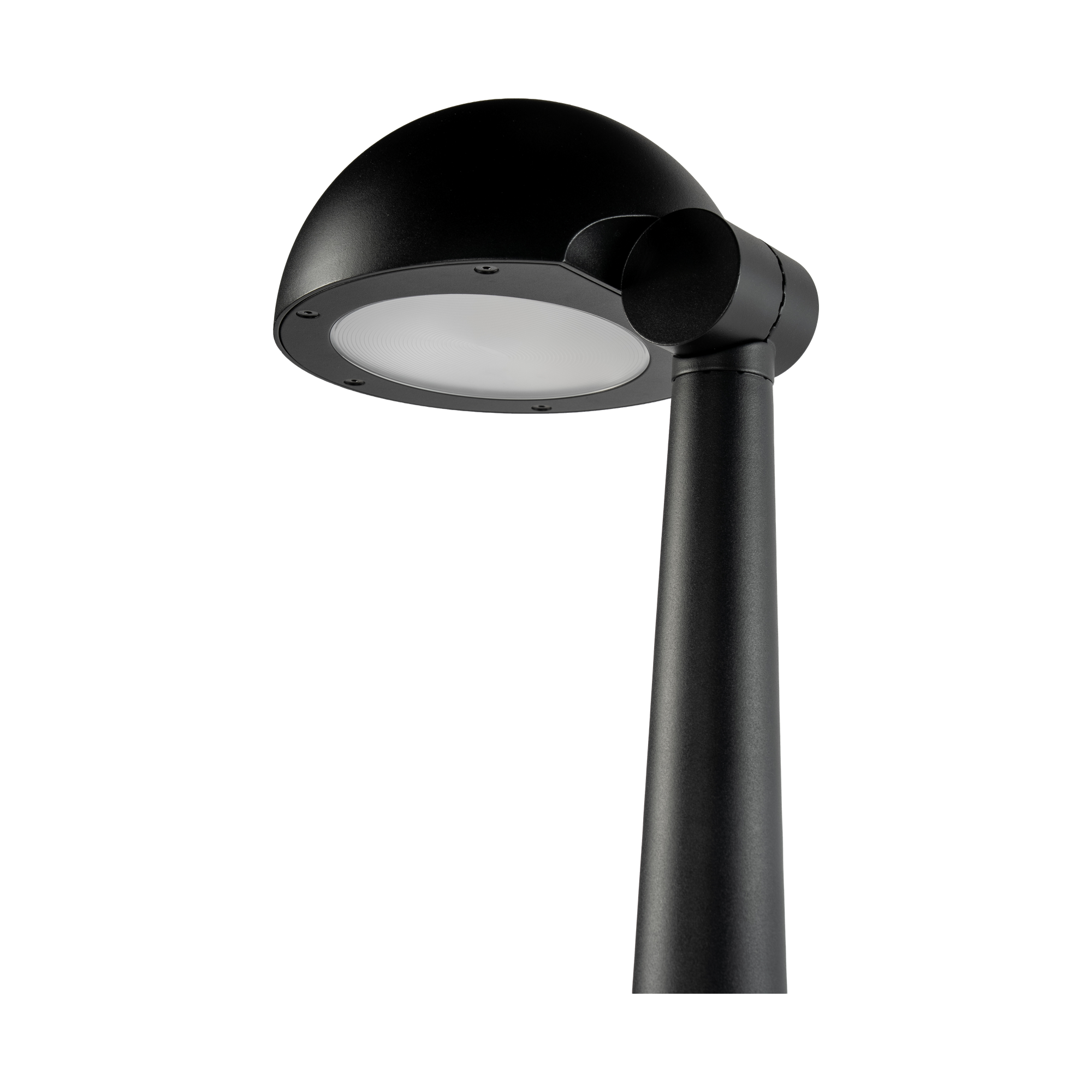

DOME is a dome-shaped outdoor bollard for contemporary spaces. The rounded form gives soft, balanced light, and the die-cast aluminum body holds up across most architectural styles.
Available in four powder-coated body colors and six color temperatures with optional dimming.
| Input Voltage | 100–240VAC · 50/60Hz |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Optional |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK05 |
| Dimensions | D1 150 / D2 180 × L255 × H895 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | Polycarbonate (PC) |
| Body Finish | Powder Coated Aluminum |
| Body Colors | Bronze · Black · White · Dark Gray |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Dimming | Optional |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-DM | 19.5W | 2,054 lm | 106° | ≥80 | 105.33 lm/W |
* Values based on CCT 3000K | ±10% tolerance
