Designed to Illuminate.

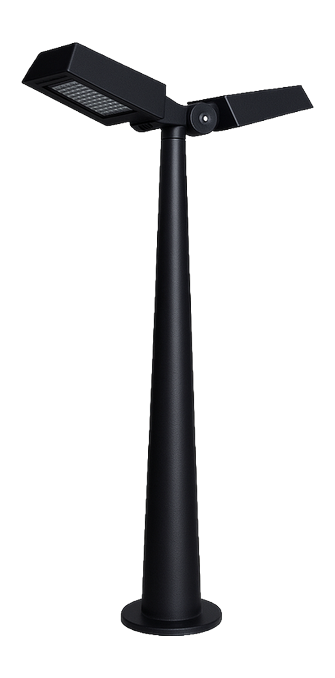

BOULEVARD is a high-output dual-head bollard luminaire built for boulevards, plazas, and large-scale architectural pathways. With 2 × 14W outputting 2 × 1,210 lm at 86 lm/W, it delivers powerful, uniform light coverage from a single fixture.
Choose from four beam angles (A10 asymmetric · 10° spot · 20° narrow · 50° flood) to match your project. Built around an aluminum / die-cast aluminum housing with polycarbonate optics, IP65 / IK08-rated for full outdoor use. Wide-input operation (24V DC or 100–277V AC) with full dimming support and a 5-year warranty.
| Input Voltage | 24V DC / 100–277VAC · 50/60Hz |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class III (DC) / Class I (AC) |
| Dimming | Triac · PWM · 1-10V · DALI (customized) |
| Switching Cycles | >15,000 times |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
| Housing | Aluminum / Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | PC (Polycarbonate) |
| Body Finish | Powder-Coated Aluminum |
| Body Colors | Bronze · Black · Dark Gray |
| Dimensions | L492 × W129 × H825 mm · D150 base |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >15,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-BV 2×14W | 2 × 14W | 2 × 1,210 lm | 86 lm/W | A10 / 10° / 20° / 50° | >80 · >90 opt |
* Values based on CCT 3000K | ±10% tolerance | Dual-head fixture; total output 2,420 lm at 28W system power.
