Outdoor Bollard / Pathway Luminaire

CAP

Bright Guidance for Every Step.

IP65
IK06
Colours
Ext. Service
220–240V
PC (Polycarbonate)
3-Year Warranty · Ext. to 5 Yrs
Weather-Proof
Up to 70 lm/W
13W
Power
910 lm
Lumens
70 lm/W
Efficiency
50°
Beam Angle
>80
CRI
30,000h
Lifetime

About this Product

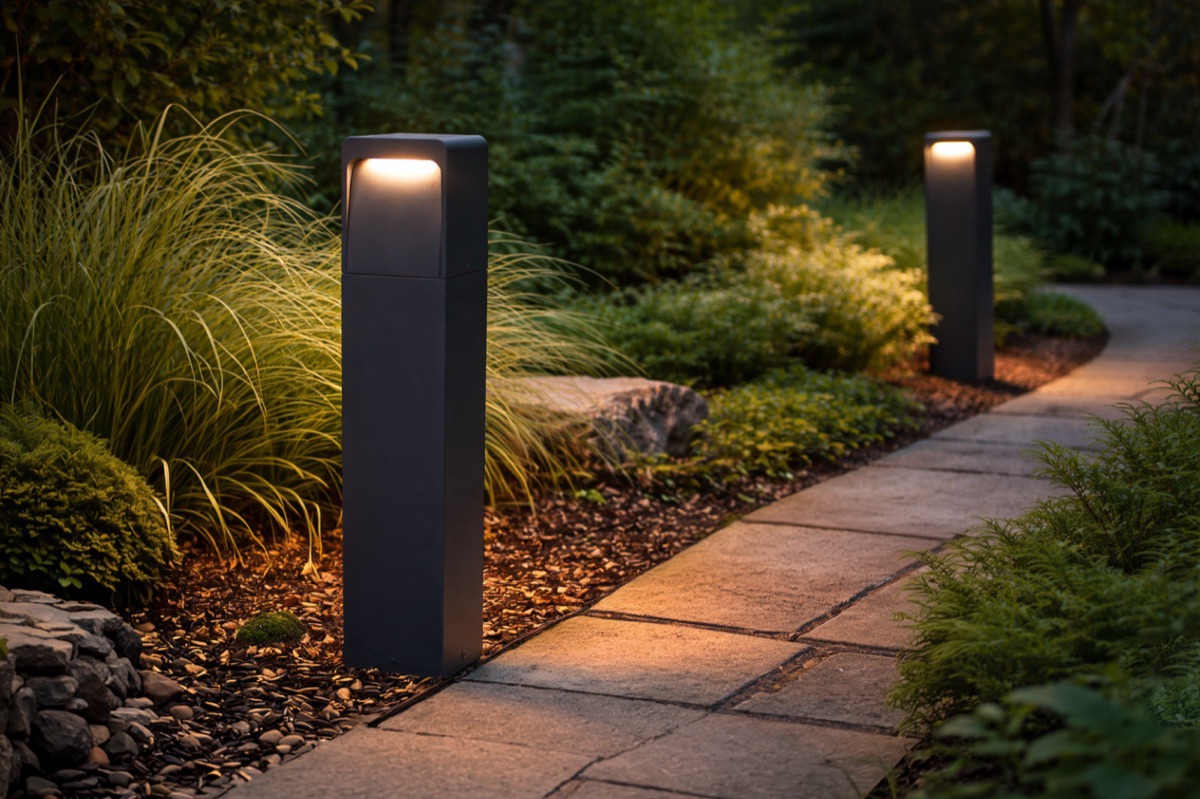

CAP is a waterproof outdoor bollard pathway luminaire built to provide bright, comfortable guidance along walkways, entrances, and landscape edges. Its die-cast aluminum housing and polycarbonate optics deliver durable performance in all weather, while the SMD LED source ensures efficient, uniform illumination.

Rated 13W at 910 lumens (70 lm/W) with a 50° beam for clean ground-level wash, available in five architectural finishes (Dark Gray, Black, White, Corten, Silver). Backed by a 3-year warranty extendable to 5.

Business CampusesMall / Retail AreasRecreational AreasBuilding ExteriorsEntrancesOutdoor Pathways

Electrical Parameters

Input Voltage220–240V · 50/60Hz
Power Factor>0.80
Surge Protection1KV (L-N) · 2KV (L/N-PE)
Electrical ClassClass I

Environmental Parameters

Working Temperature-20°C to +50°C
Operating Humidity20–85% RH
Ingress ProtectionIP65
Impact ResistanceIK06
Switching Cycles>15,000 times

Color Temperature Options

3000K · Warm4000K · Cool5700K · Daylight6500K · Daylight

Construction

HousingDie-Cast Aluminum
MountingBollard
OpticsPC (Polycarbonate)
Body FinishPowder-Coated
Body ColorsDark Gray · Black · White · Corten · Silver
DimensionsL90 × W90 × H500 mm

LED & Light Source

LED TypeSMD
LifetimeL70B50 > 30,000h
CRIStandard >80
Switching Cycles>15,000
Warranty3 Years (extendable to 5)
ModelPowerLumenEfficiencyBeam AngleCRI
NLC-CP 13W13W910 lm70 lm/W50°>80

* Values based on CCT 3000K | ±10% tolerance
