Designed to Illuminate.

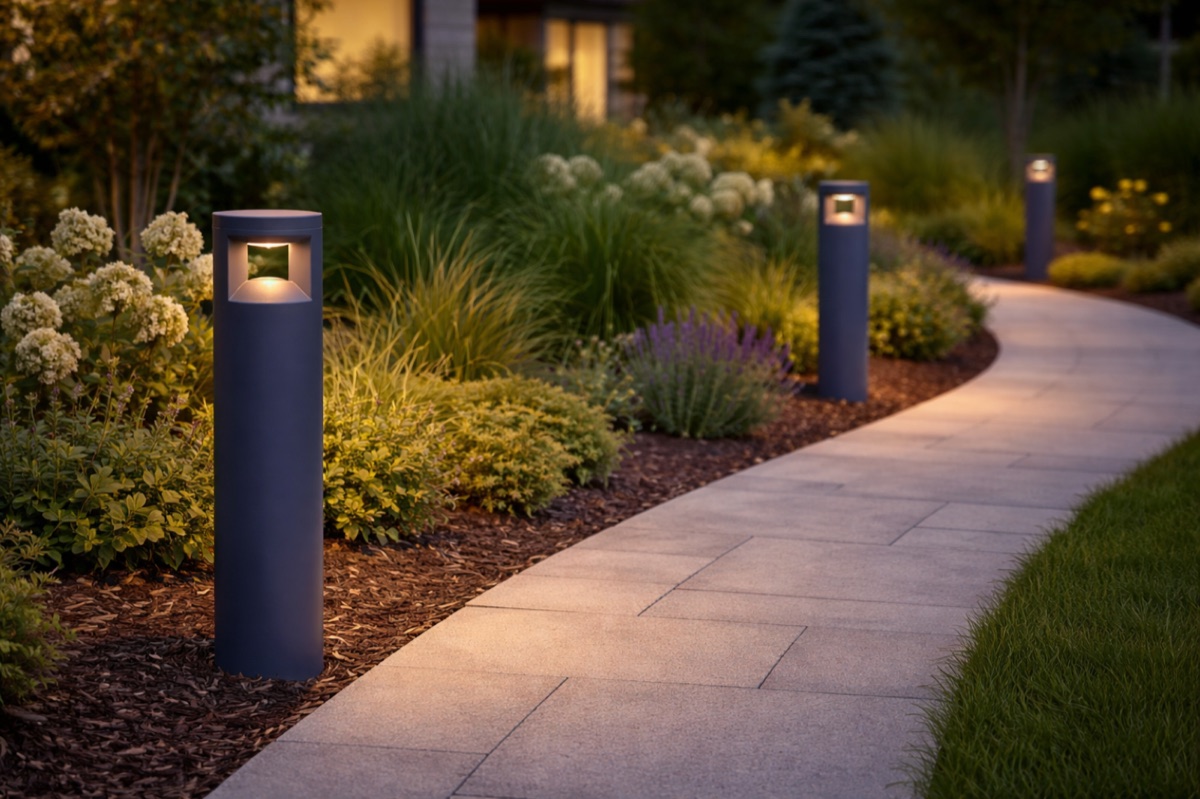

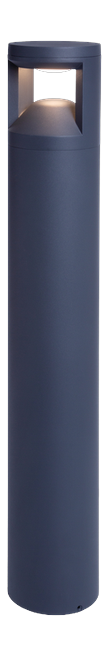

LABAZ is a waterproof pathway bollard light featuring a direct-light design optimized for LED lamps. Constructed from die-cast aluminum with PC optics, it delivers reliable performance in all weather conditions while maintaining outstanding energy efficiency.
Available in two heights (500 mm and 800 mm) with five powder-coated body colors.
| Input Voltage | 220–240V · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions | D120 × H500 mm / D120 × H800 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | Polycarbonate (PC) |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-LZ | 12W | 600 lm | 120° | ≥80 | Direct-light pathway |
* Values based on CCT 3000K | ±10% tolerance
