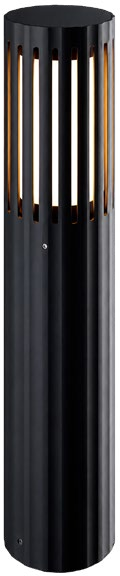

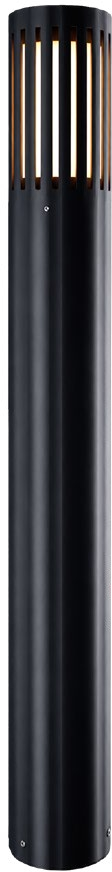

Two-version landscape luminaire, 294° wide distribution or a 2x12W 44° beam
Passo is an IP54 landscape luminaire supplied at 100-240VAC 50/60Hz in Class I and rated for 50,000 hours. It is listed in two versions: NLC-PSSB with a 294° distribution and 350LM, and NLC-PSS at 2x12W delivering 1596LM in a 44° beam. Both versions are printed with CRI above 80 and SDCM below 5, in 3000K, 4000K and 5000K, and in Black, Dark Gray, Silver, White and Rust finishes.
| Input Voltage | 100-240VAC |
| Frequency | 50/60Hz |
| Protection Class | Class I |
| Power | 72W (NLC-PSSB), 2x12W (NLC-PSS) |
| IP Rating | IP54 |
| Finishes | Black, Dark Gray, Silver, White, Rust |
| CCT Options | 3000K (Warm), 4000K (Cool), 5000K (Daylight) |
| CRI | Standard: >80 |
| SDCM | <5 |
| System Lumen | 350LM (NLC-PSSB), 1596LM (NLC-PSS) |
| Lifetime | 50,000h |
| Model | Power | System Lumen | SDCM | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PSSB | 72W | 350LM | <5 | 294° | Standard: >80 |
| NLC-PSS | 2x12W | 1596LM | <5 | 44° | Standard: >80 |
* Values as published in the NLC product catalogue
