Smart Light for Every Angle.

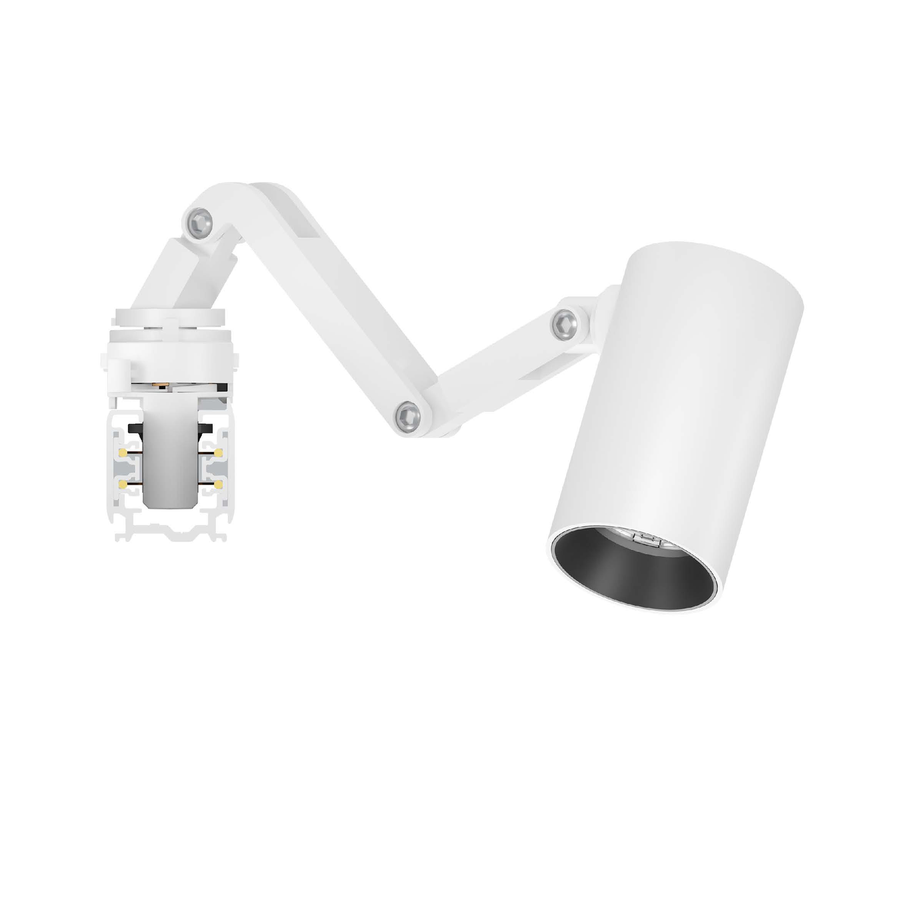

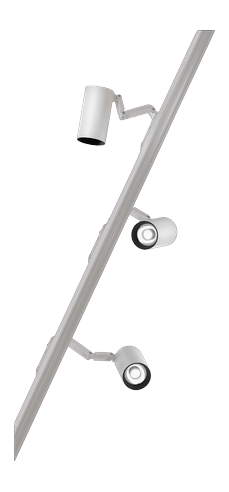

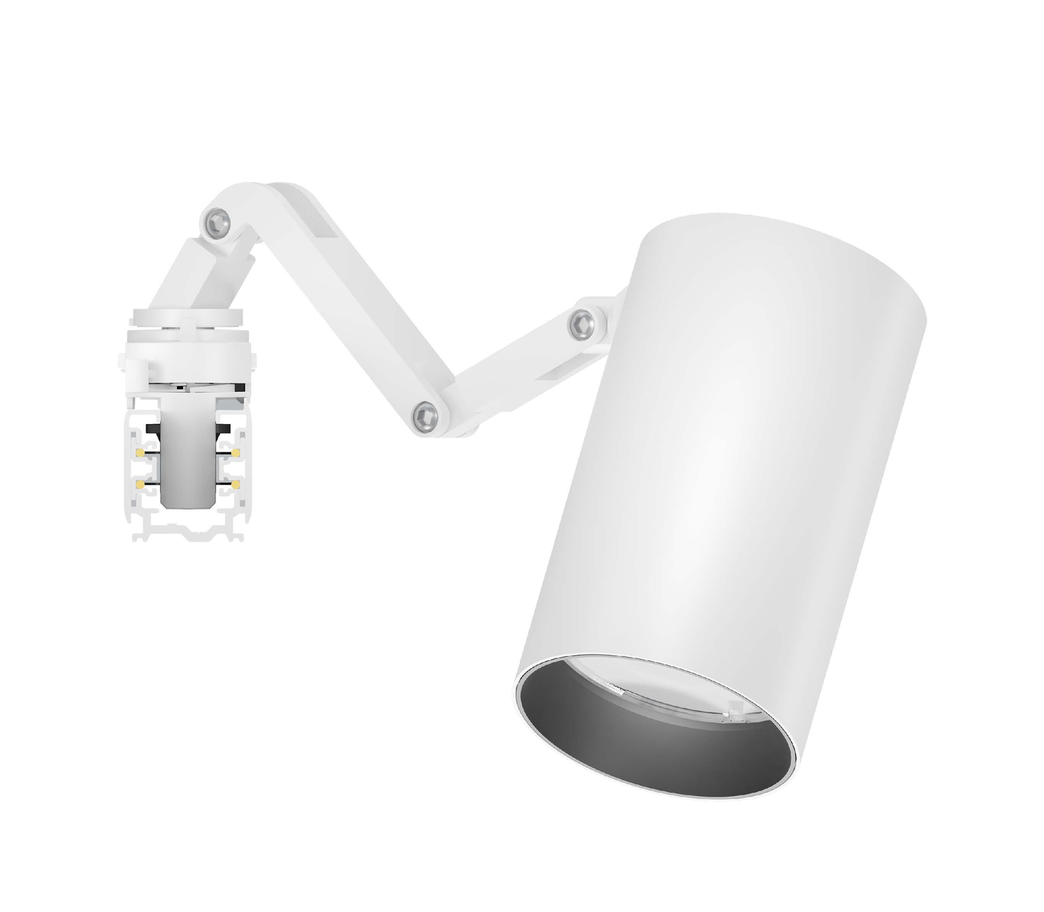

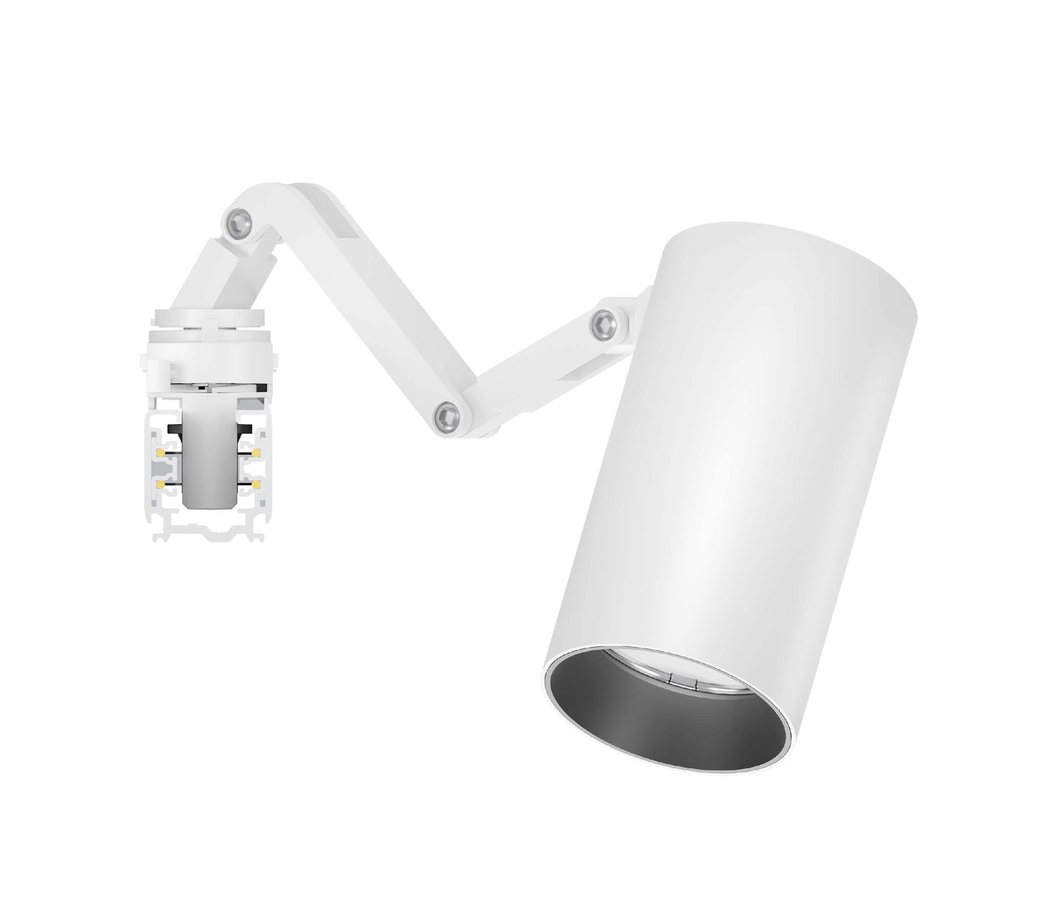

SCORPION is a multi-jointed track-mounted spotlight with uniquely flexible legs that rotate and extend from 45° to 315°. Designed for high-end commercial spaces where conventional fixtures need to disappear, ideal for slotted ceilings and discreet architectural integration.
Available in 11W, 14W, and 24W configurations with multiple beam angles (14°–56°). COB light source, 350° rotation, and compatible accessories (Honeycomb Louvre, Linear Spread Glass) for beam shaping. 5-year warranty.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >25,000 |
| Housing | Aluminum |
| Mounting | Track Mounted |
| Optics | Lens |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Dimensions | 11W: L70–150×H80×D45 mm · 14W: L70–150×H120×D65 mm · 24W: L70–150×H125×D73 mm |
| Rotation | 350° |
| Articulation | Flexible legs, 45°–315° |
| Accessories | Honeycomb Louvre · Linear Spread Glass |
| LED Type | COB |
| Lifetime | L70B50 > 50,000h · L80B20 > 30,000h |
| CRI | Standard >90 · Optional >95 |
| Switching Cycles | >25,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-ON 11W | 11W | 935 lm | 85 lm/W | 19° / 29° / 44° / 56° | >90 · >95 opt |
| NLC-ON 14W | 14W | 1,627 lm | 116 lm/W | 18° / 27° / 38° / 54° | >90 · >95 opt |
| NLC-ON 24W | 24W | 2,963 lm | 123 lm/W | 14° / 28° / 40° / 50° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
