RECESSED CANNON
Precision Lighting in Every Form
IP20
Energy Efficient
11-36W
Power
935-4,500 lm
Lumens
125 lm/W
Efficiency
14°-56°
Beam Angle
>90 / >95
CRI
50,000h
Lifetime
Precision Lighting in Every Form

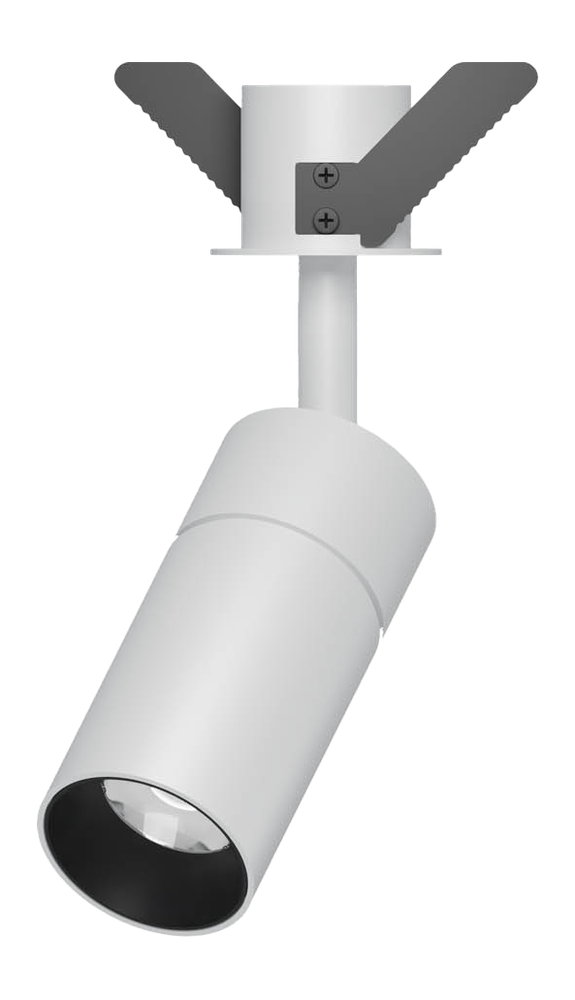

RECESSED CANNON is the recessed-mount member of the NLC Cannon spotlight family, with a head that adjusts up to 90° and interchangeable honeycomb louvre, linear spread glass and glass accessories.
Model NLC-CAR, available in 11W, 14W, 24W and 36W with beam angles from 14° to 56°. Up to 125 lm/W, CRI above 90 as standard and above 95 optional, CCT 2700K to 6500K.
| Input Voltage | 220-240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10-85% RH |
| Ingress Protection | IP20 |
| Switching Cycles | >25,000 times |
| Housing | Aluminum |
| Mounting | Recessed |
| Optics | Lens |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Tilt | 90° adjustable for precise light direction |
| LED Type | COB |
| Lifetime | L70B50 > 50,000h · L80B20 > 30,000h |
| CRI | Standard >90 · Optional >95 |
| Glare | Minimal glare optics |
| Accessories | Honeycomb Louvre · Linear Spread Glass |
| Warranty | 5 Years |
| Model | Power | Efficiency | Lumen | Beam Angles | CRI |
|---|---|---|---|---|---|
| NLC-CAR 11W | 11W | 85 lm/W | 935 lm | 19° / 29° / 44° / 56° | >90 |
| NLC-CAR 14W | 14W | 116 lm/W | 1,424 lm | 18° / 27° / 38° / 54° | >90 |
| NLC-CAR 24W | 24W | 124 lm/W | 2,976 lm | 14° / 28° / 40° / 50° | >90 |
| NLC-CAR 36W | 36W | 125 lm/W | 4,500 lm | 16° / 20° / 30° / 45° | >90 |
* Values based on CCT 3000K | ±10% tolerance | CAR = Recessed
