Focused light. Flexible design.

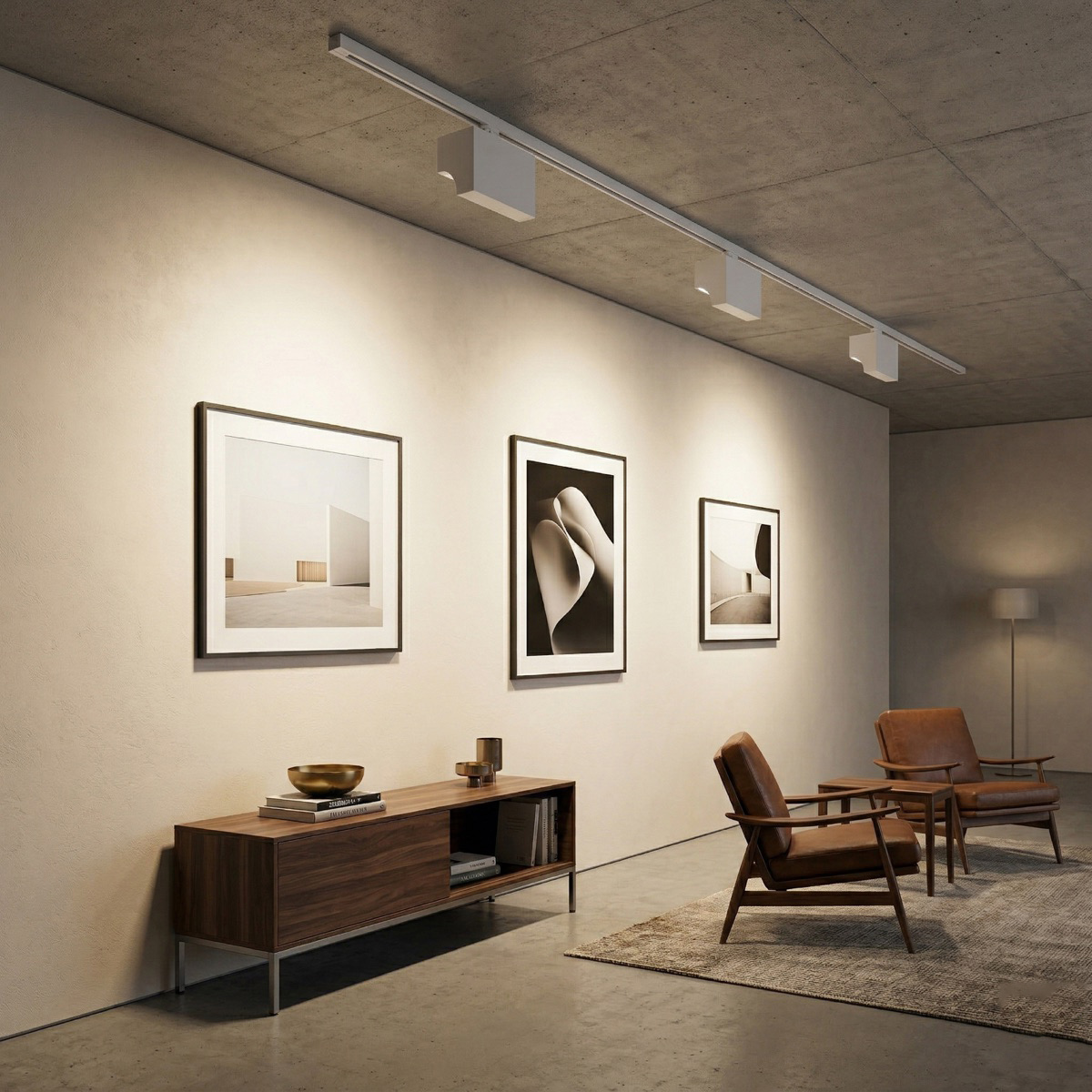

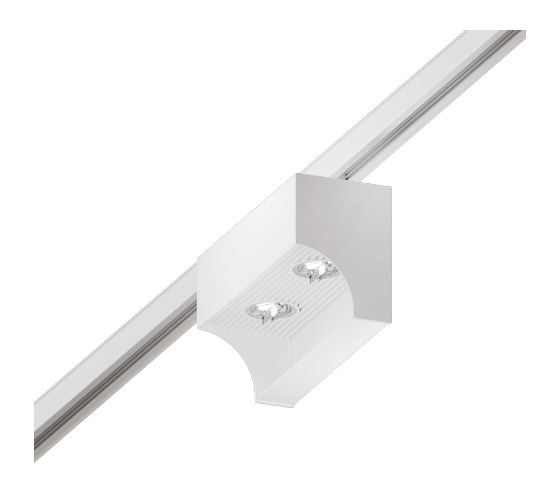

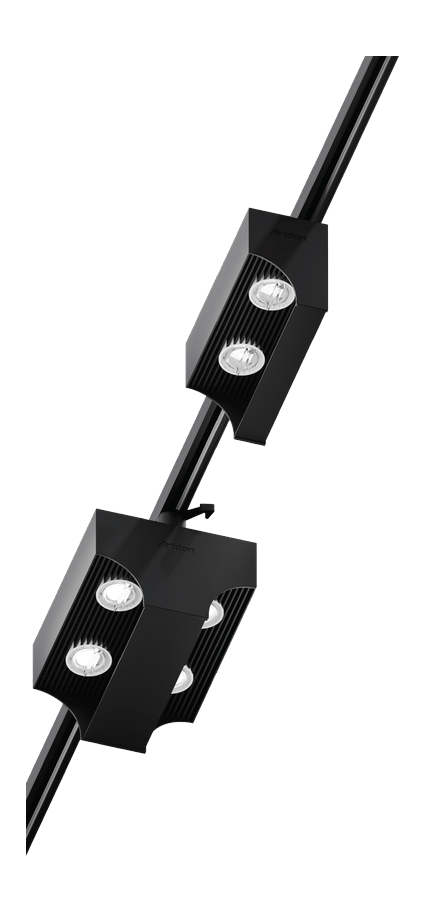

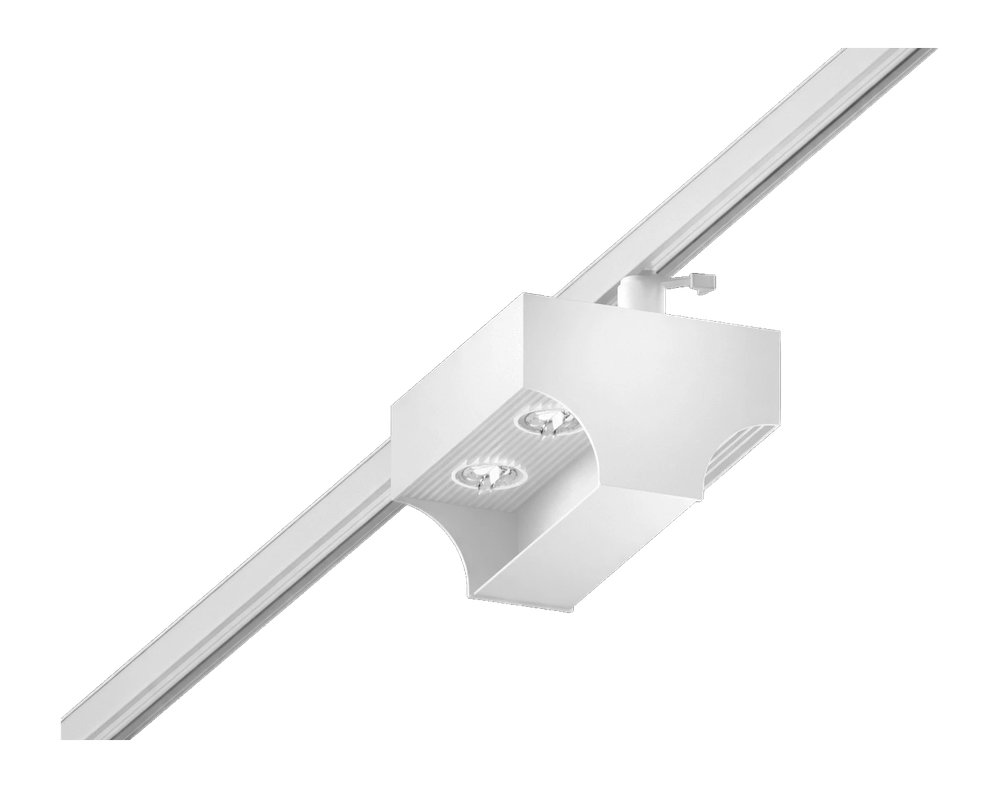

ARC is a high-performance polarized track-mounted luminaire engineered specifically for vertical illumination with precision. Its professional-grade polarized optical design ensures a clean light cut-off and minimal glare, ideal for retail merchandising, gallery walls, and architectural accent work.
Available in 50W (4,275 lm) and 100W (8,550 lm) variants with a distinctive tilted-20° beam pattern for vertical-surface wash. Features 90° adjustable tilt, COB LED, and comes with a 5-year warranty.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >25,000 |
| Housing | Aluminum |
| Mounting | Track Mounted |
| Optics | Lens (Polarized) |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Tilt | 90° adjustable |
| LED Type | COB |
| Lifetime | L70B50 > 50,000h · L80B20 > 30,000h |
| CRI | Standard >80 · Optional >90 |
| Switching Cycles | >25,000 times |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-AR 50W | 50W | 4,275 lm | 85.5 lm/W | Tilted 20° · 55°×55° | >80 |
| NLC-AR 100W | 100W | 8,550 lm | 85.5 lm/W | Tilted 20° · 55°×55° | >80 |
* Values based on CCT 3000K | ±10% tolerance
