Precision Lighting in Every Form
CANNON is a versatile modular spotlight system designed for flexible configuration, offering interchangeable lenses, heads, and trims to achieve precise, high-quality lighting in any space.

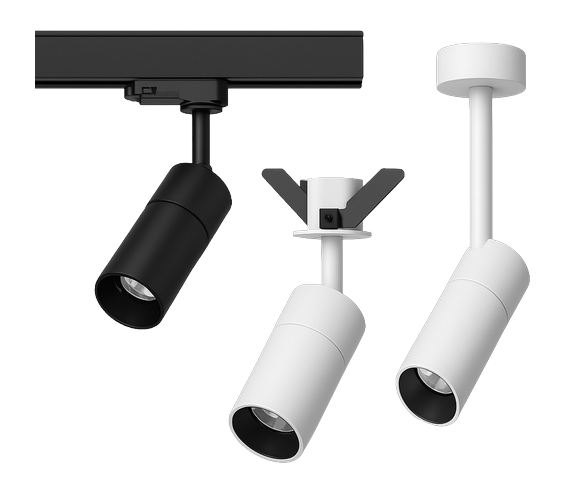

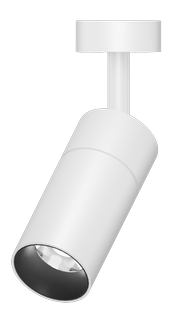

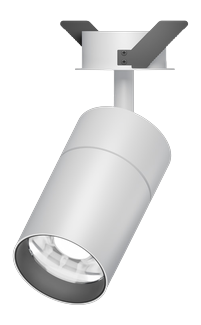

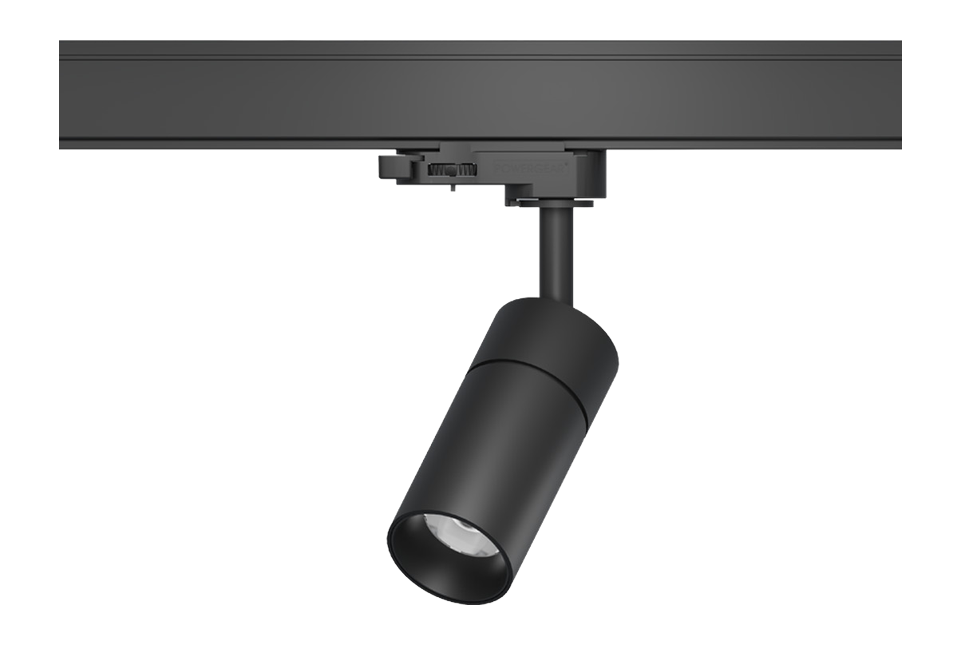

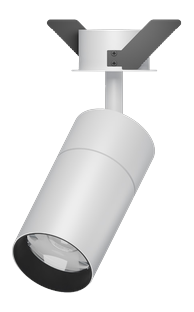

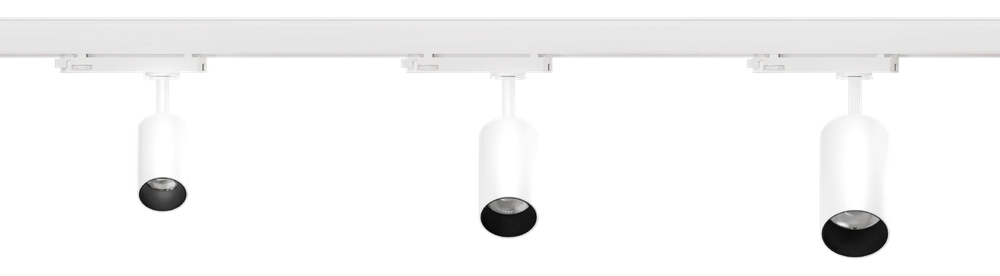

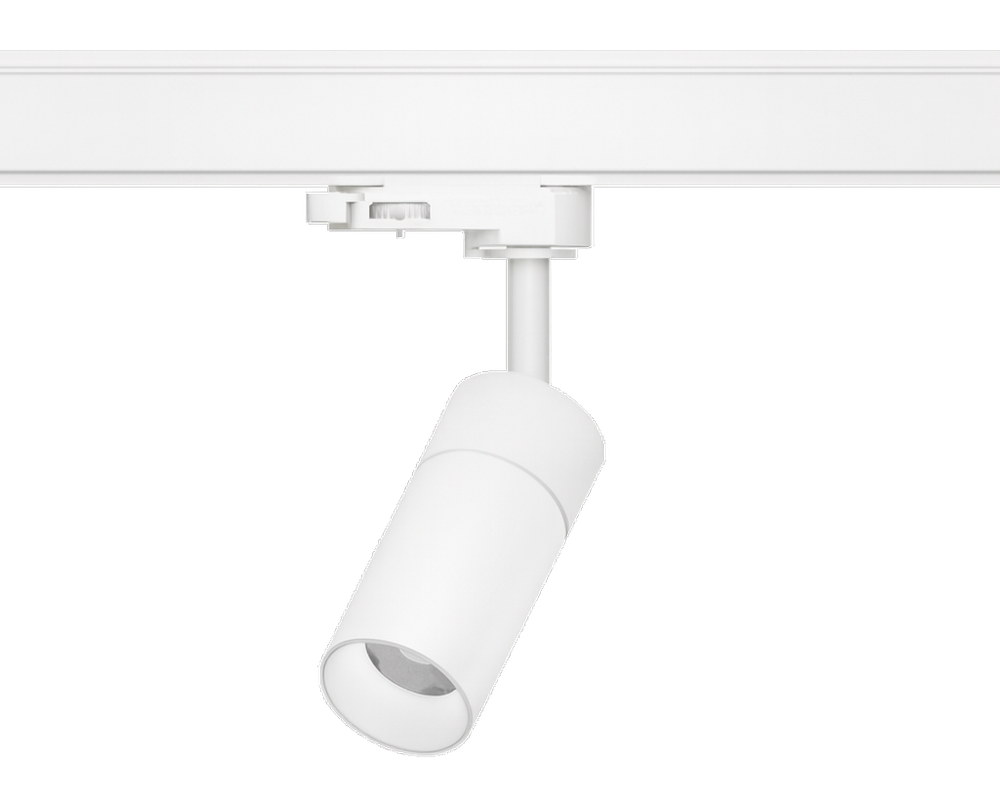

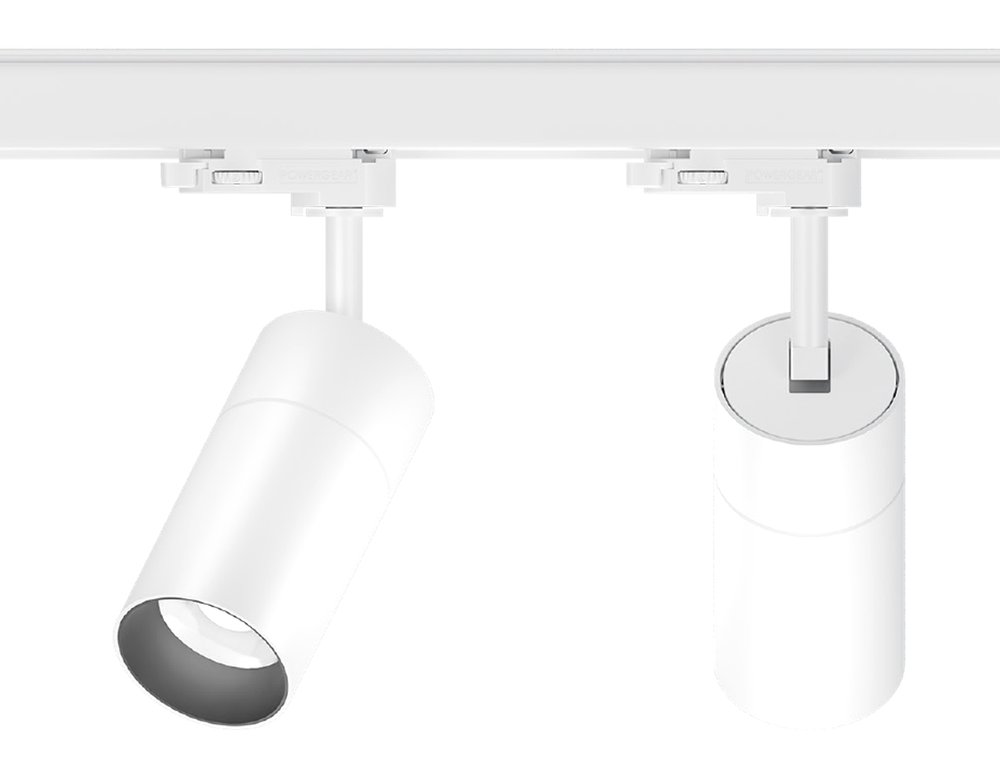

Available in three mounting formats, Recessed (NLC-CAR), Surface (NLC-CAS), and Track (NLC-CAT), across four power tiers (11W, 14W, 24W, 36W) with selectable beam angles from 14° to 56°. Delivers up to 125 lm/W and features a 90° adjustable tilt, minimal glare design, and flicker-free COB light source.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 |
| Switching Cycles | >25,000 times |
| Housing | Aluminum |
| Mounting | Recessed · Surface · Track |
| Optics | Lens |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Tilt | 90° adjustable for precise light direction |
| LED Type | COB |
| Lifetime | L70B50 > 50,000h · L80B20 > 30,000h |
| CRI | Standard >90 · Optional >95 |
| Glare | Minimal glare optics |
| Accessories | Honeycomb Louvre · Linear Spread Glass |
| Warranty | 5 Years |
| Model | Power | Efficiency | Lumen | Beam Angles | CRI |
|---|---|---|---|---|---|
| NLC-CAR 11W | 11W | 85 lm/W | 935 lm | 19° / 29° / 44° / 56° | >90 |
| NLC-CAR 14W | 14W | 116 lm/W | 1,424 lm | 18° / 27° / 38° / 54° | >90 |
| NLC-CAR 24W | 24W | 124 lm/W | 2,976 lm | 14° / 28° / 40° / 50° | >90 |
| NLC-CAR 36W | 36W | 125 lm/W | 4,500 lm | 16° / 20° / 30° / 45° | >90 |
| NLC-CAS 11W | 11W | 85 lm/W | 935 lm | 19° / 29° / 44° / 56° | >90 |
| NLC-CAS 14W | 14W | 116 lm/W | 1,424 lm | 18° / 27° / 38° / 54° | >90 |
| NLC-CAS 24W | 24W | 124 lm/W | 2,976 lm | 14° / 28° / 40° / 50° | >90 |
| NLC-CAS 36W | 36W | 125 lm/W | 4,500 lm | 16° / 20° / 30° / 45° | >90 |
| NLC-CAT 11W | 11W | 85 lm/W | 935 lm | 19° / 29° / 44° / 56° | >90 |
| NLC-CAT 14W | 14W | 116 lm/W | 1,424 lm | 18° / 27° / 38° / 54° | >90 |
| NLC-CAT 24W | 24W | 124 lm/W | 2,976 lm | 14° / 28° / 40° / 50° | >90 |
| NLC-CAT 36W | 36W | 125 lm/W | 4,500 lm | 16° / 20° / 30° / 45° | >90 |
* Values based on CCT 3000K | ±10% tolerance | CAR = Recessed, CAS = Surface, CAT = Track
