Bright Ideas in a Slim Profile

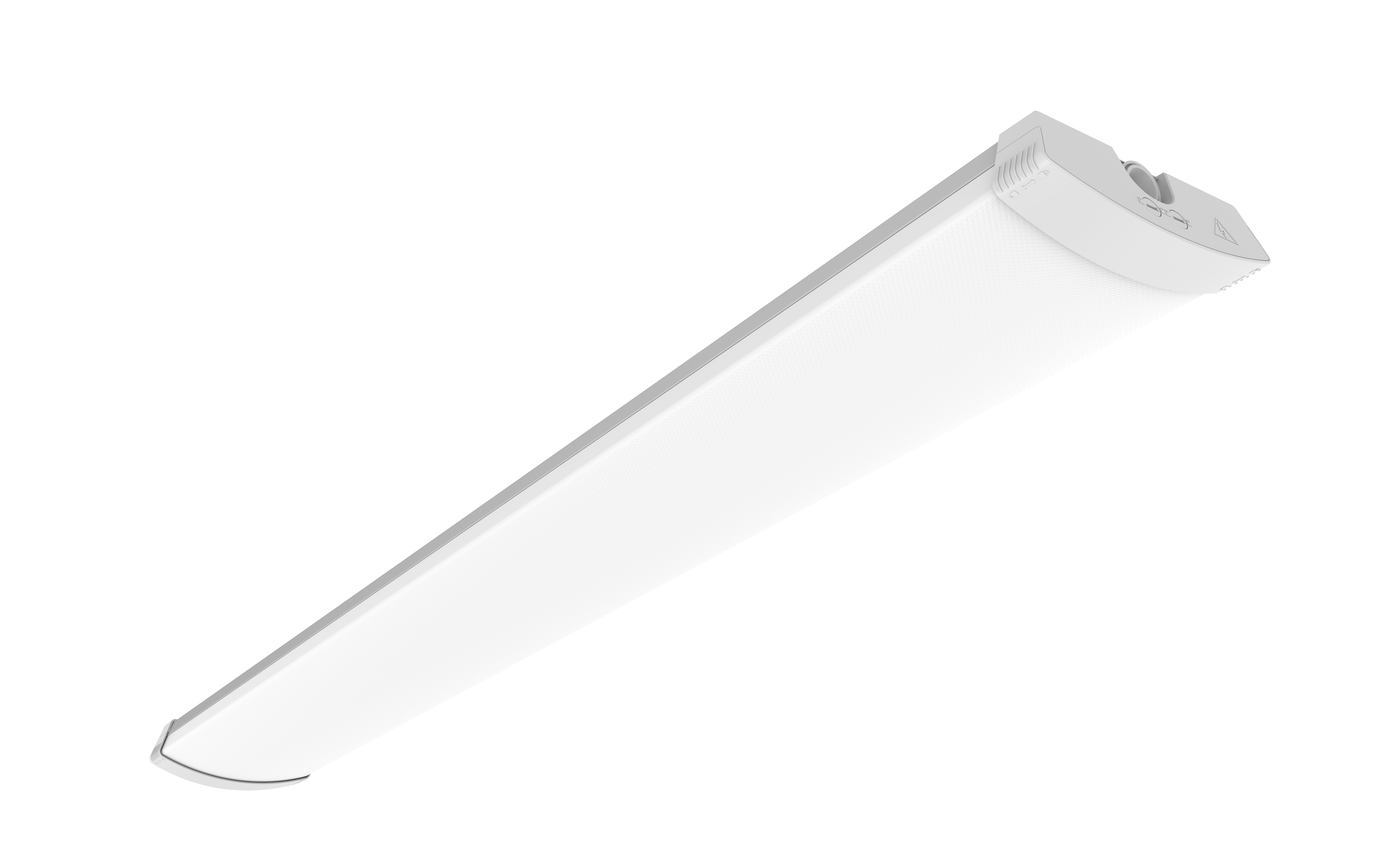

OCEAN PLUS is a high-performance linear LED luminaire built around a slim, modern profile that blends clean architectural aesthetics with reliable, uniform illumination.
With a steel housing, PMMA optics and surface or wall mounting, it delivers up to 150 lm/W across 1200 mm and 1500 mm lengths, making it a dependable choice for commercial, industrial and indoor spaces.
| Input Voltage | 220–240VAC / 180–264VDC · 50/60Hz |
| Power Factor | >0.9 |
| THD | <20 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +40°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP44 |
| NLC-OPS 1200 mm | L1200 × W156 × H52 mm |
| NLC-OPS 1500 mm | L1500 × W156 × H52 mm |
| Housing | Steel |
| Mounting | Surface & Wall Mounted |
| Optics | PMMA |
| Body Finish | Powder Coating |
| Body Color | White |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| UGR | 22 |
| Switching Cycles | >50,000 times |
| Dimming | Optional |
| Flicker Free | Yes |
| Warranty | 5 Years |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-OPS 1200 | 23W | 150 lm/W | 3,450 lm | 105° | >80 · >95 opt |
| NLC-OPS 1200 | 29W | 150 lm/W | 4,350 lm | 105° | >80 · >95 opt |
| NLC-OPS 1200 | 35W | 150 lm/W | 5,250 lm | 105° | >80 · >95 opt |
| NLC-OPS 1200 | 40W | 150 lm/W | 6,000 lm | 105° | >80 · >95 opt |
| NLC-OPS 1500 | 26W | 150 lm/W | 3,900 lm | 105° | >80 · >95 opt |
| NLC-OPS 1500 | 33W | 150 lm/W | 4,950 lm | 105° | >80 · >95 opt |
| NLC-OPS 1500 | 40W | 150 lm/W | 6,000 lm | 105° | >80 · >95 opt |
| NLC-OPS 1500 | 47W | 150 lm/W | 7,050 lm | 105° | >80 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
