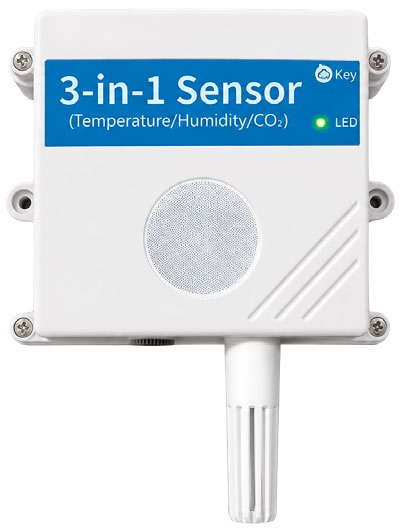

NSEN 3-in-1 Grow Room Sensor (CO2, Temperature, Humidity) by NLC
3-in-1 Grow Room Sensor (CO2, Temperature, Humidity)

NSEN

3-in-1 CO2, temperature and humidity sensor with 3 second refresh sampling

3-in-1 Sensor
CO2 400-5000 ppm
Temperature ±0.3°C
Humidity ±2% RH
Wireless up to 100 m
Over-temperature Protection
3-in-1
Sensor Type
400-5000 ppm, ±50 ppm +5%…
CO2 Measuring Range
-40~+120°C, ±0.3°C
Temperature Measuring Range
0~100% RH, ±2% (25°C)
Humidity Measuring Range
< 3 s
Data Update
Up to 100 m / 328.1 ft
Wireless Range
Request Datasheet Request a Quote

About this Product

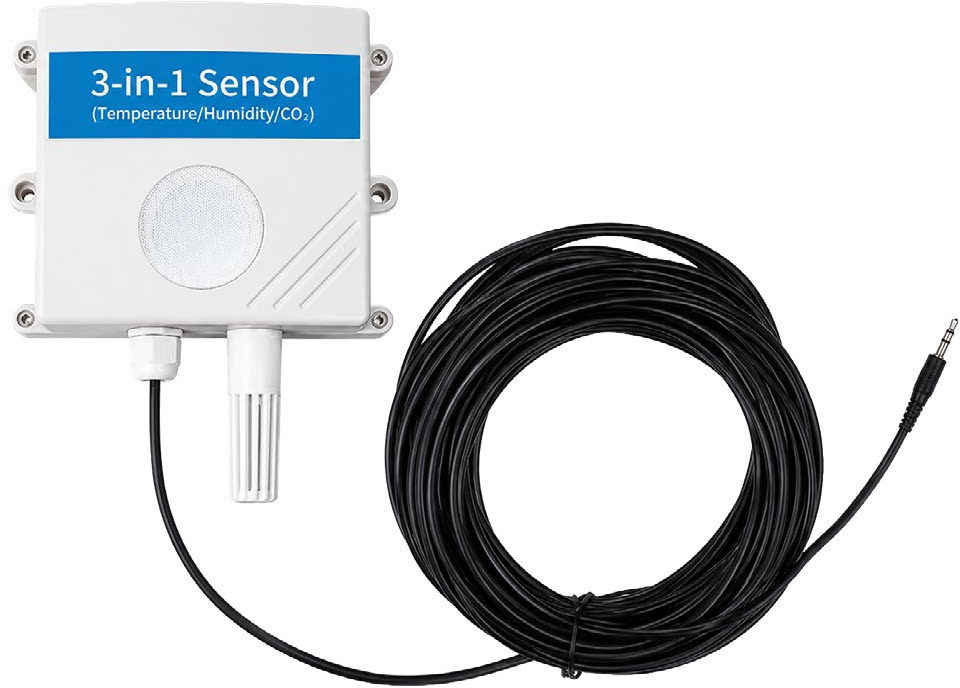

NSEN is a 3-in-1 grow sensor that integrates CO2, temperature and humidity measurement in one industrial class sensor module with 3 second refresh sampling. It measures CO2 from 400 to 5000 ppm at ±50 ppm +5% ppm, temperature from -40 to +120°C at ±0.3°C, and relative humidity from 0 to 100% RH at ±2% (25°C). Wireless and wired versions are listed: the wireless unit connects to the controller at up to 100 meters, while the wired unit draws power from the controller and transmits data over the same 3 meter cable. The controller supports display of up to two sensors monitoring two grow rooms.

Indoor growing air quality monitoringMonitoring two grow rooms with the controller (maximum two sensors)

Electrical Parameters

Power (Wireless)12W
Power (Wired)1.5W
Wired Power and DataDraws power from the Controller and transmits data over the same cable

Environmental Parameters

Operating Temperature Range-10~+50°C
Operating Humidity Range0~85% (no condensation)
ProtectionOver-temperature protection

Construction

Dimensions110 x 130 x 42 mm (4.33” x 5.12” x 1.65”)
Net Weight (Wireless)123g / 0.27lbs
Net Weight (Wired)176.9g / 0.39lbs
Cable Length (Wired version)3 m / 9.84 ft
Wireless Range to Controller100 m / 328.1 ft
ModelPowerData UpdatePreheating TimeOperating Temperature RangeOperating Humidity RangeDimensionsNet Weight
NSEN (Wireless connection)12W< 3 s< 30 s, < 2 min, < 10 min-10~+50°C0~85% (no condensation)110 x 130 x 42 mm / 4.33” x 5.12” x 1.65”123g / 0.27lbs
NSEN (Wired connection)1.5W< 3 s< 30 s, < 2 min, < 10 min-10~+50°C0~85% (no condensation)110 x 130 x 42 mm / 4.33” x 5.12” x 1.65”176.9g / 0.39lbs

* Values as published in the NLC product catalogue
