Modular Light. Adjustable Tilt Control.

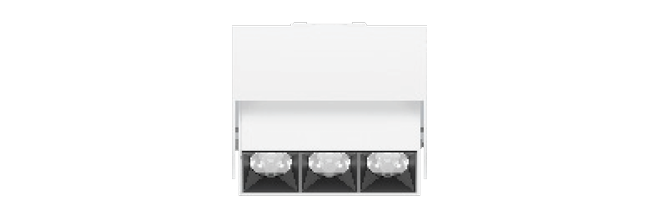

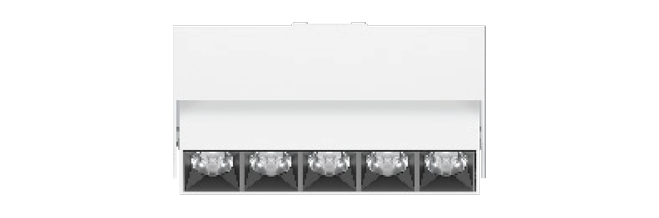

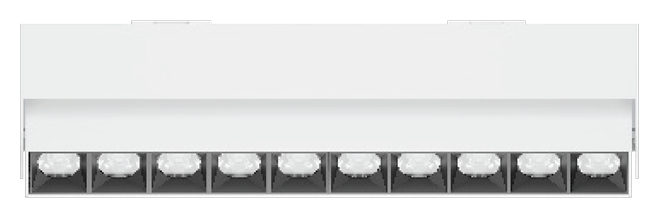

MINI S Tiltable (NLC-MST) is the surface-mounted adjustable version of the MINI S modular linear family. The luminaire head tilts within its housing, letting you aim the beam at walls, shelving, or displays after installation while keeping the anti-glare optics.
Offered in 3 power tiers from 12W to 40W delivering up to 3,485 lumens at 91 lm/W, with 23°–50° beam angles for accent and wall-wash lighting. Features CRI >90 (optional >95) and comes backed by a 5-year warranty.
Also available in recessed, surface-mounted and track-mounted versions.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >50,000 times |
| Housing | Aluminum |
| Mounting | Surface-Mounted Tiltable |
| Optics | Lens (Anti-Glare) |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Dimming | Optional |
| Warranty | 5 Years |
| NLC-MST (Surface Tiltable) | 12W–40W · from L126 × W44 × H102 mm up to L393 × W44 × H102 mm |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MST 12W | 12W | 1,049 lm | 87 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MST 20W | 20W | 1,824 lm | 91 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MST 40W | 40W | 3,485 lm | 87 lm/W | 23° / 49° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
